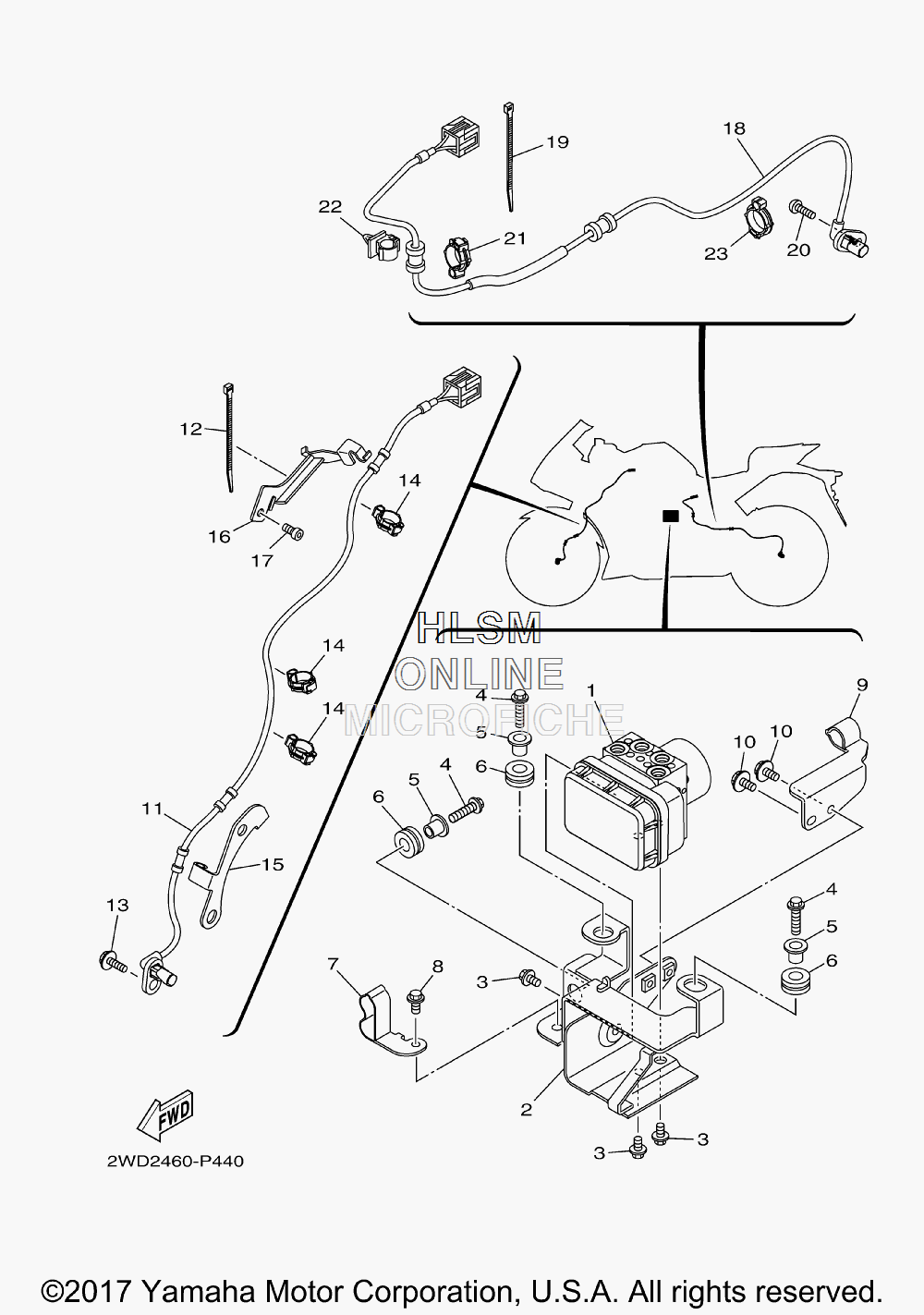

ELECTRICAL 3 для Yamaha YZFR3 ABS - 2017 года выпуска`
-
№АртикулНазвание
-
12WD-85930-09-00 HYDRAULIC UNIT ASSYHYDRAULIC UNIT ASSY
-
22WD-F175T-00-00 BRACKET 1BRACKET 1
-
395022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
495022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
590387-06M60-00 COLLARCOLLAR
-
690480-14229-00 GROMMETGROMMET
-
72WD-F5886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
895027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
92WD-F5875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
1095027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
112WD-85970-00-00 WHEEL SENSOR ASSY, FRONTWHEEL SENSOR ASSY, FRONT
-
1290464-22800-00 CLAMPCLAMP
-
1395027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1490464-12013-00 CLAMPCLAMP
-
152WD-F3318-00-00 WIRE, HOLDER 1WIRE, HOLDER 1
-
162WD-F3319-00-00 WIRE, HOLDER 2WIRE, HOLDER 2
-
1791317-06012-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
182WD-85980-00-00 WHEEL SENSOR ASSY, REARWHEEL SENSOR ASSY, REAR
-
1990464-22800-00 CLAMPCLAMP
-
2092012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2190464-14803-00 CLAMPCLAMP
-
2290464-10800-00 CLAMPCLAMP
-
2390464-14803-00 CLAMPCLAMP
