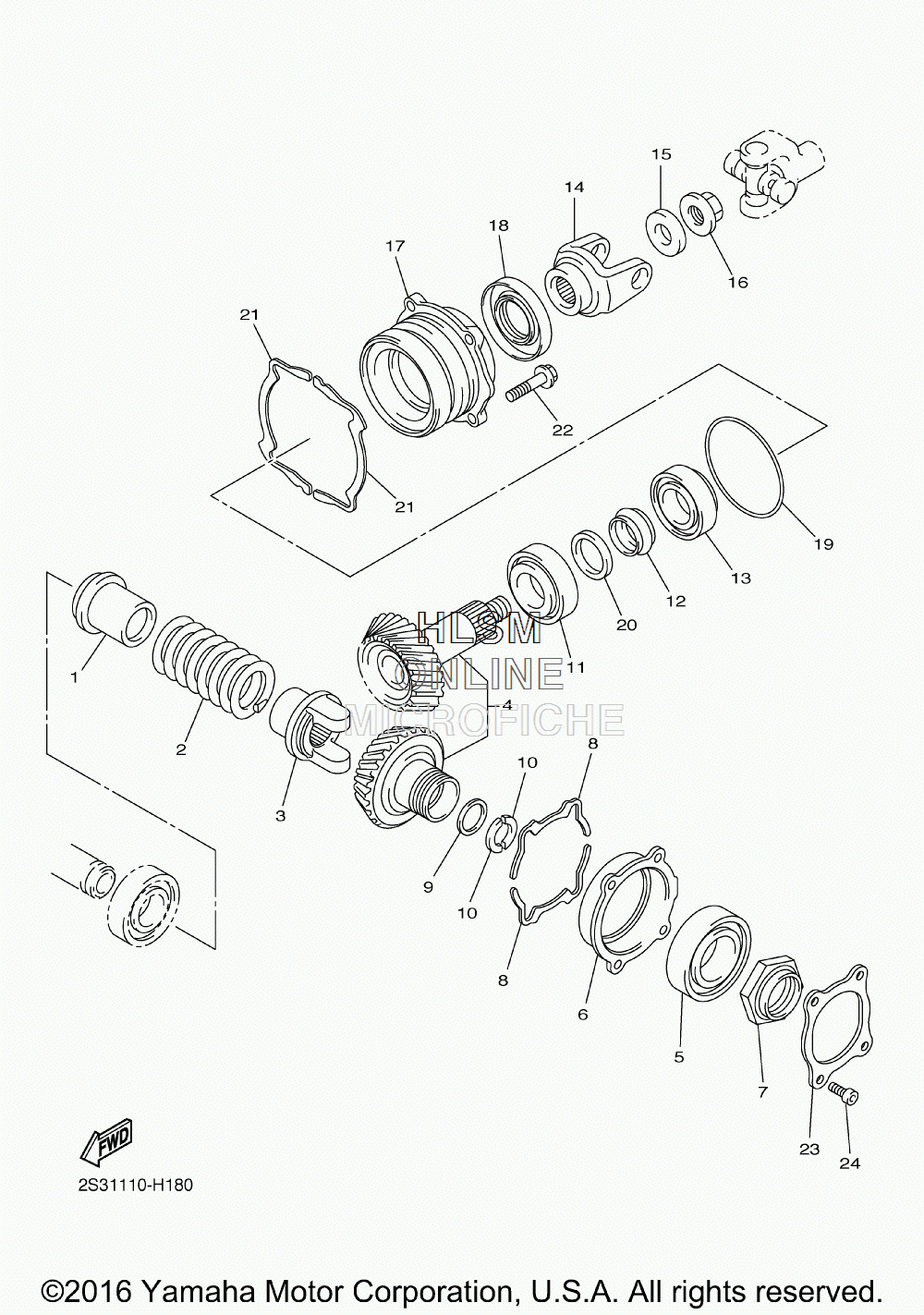

MIDDLE DRIVE GEAR для Yamaha VMAX - 2017 года выпуска`
-
№АртикулНазвание
-
12S3-17524-00-00 HOLDERHOLDER
-
22S3-17528-00-00 SPRING, DAMPERSPRING, DAMPER
-
32S3-17527-00-00 CAM, DRIVENCAM, DRIVEN
-
42S3-Y1754-00-00 MIDDLE GEAR COMP.MIDDLE GEAR COMP.
-
593306-20903-00 BEARINGBEARING
-
62S3-15163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
790179-44001-00 NUTNUT
-
82S3-17531-00-00 SHIM, PINION (T0.1)SHIM, PINION (T0.1)
-
82S3-17531-20-00 SHIM, PINION (T0.2)SHIM, PINION (T0.2)
-
82S3-17531-30-00 SHIM, PINION (T0.3)SHIM, PINION (T0.3)
-
82S3-17531-40-00 SHIM, PINION (T0.4)SHIM, PINION (T0.4)
-
82S3-17531-50-00 SHIM, PINION (T0.5)SHIM, PINION (T0.5)
-
82S3-17531-10-00 SHIM, PINION (T0.15)SHIM, PINION (T0.15)
-
990201-27014-00 WASHER, PLATEWASHER, PLATE
-
102S3-17529-00-00 WASHER, THRUSTWASHER, THRUST
-
1193332-000A1-00 BEARINGBEARING
-
122S3-17571-00-00 SPACER, EXPANSIONSPACER, EXPANSION
-
1393332-000A0-00 BEARINGBEARING
-
142S3-17556-01-00 YOKE, JOINTYOKE, JOINT
-
1590208-22004-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
1690179-20015-00 NUTNUT
-
172S3-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1893102-45009-00 OIL SEALOIL SEAL
-
1993210-94001-00 O-RINGO-RING
-
2090201-35014-00 WASHER, PLATEWASHER, PLATE
-
212S3-17537-10-00 SHIM, THRUST (T0.15)SHIM, THRUST (T0.15)
-
212S3-17537-00-00 SHIM, THRUST (T0.1)SHIM, THRUST (T0.1)
-
212S3-17537-20-00 SHIM, THRUST (T0.2)SHIM, THRUST (T0.2)
-
212S3-17537-30-00 SHIM, THRUST (T0.3)SHIM, THRUST (T0.3)
-
212S3-17537-50-00 SHIM, THRUST (T0.5)SHIM, THRUST (T0.5)
-
212S3-17537-40-00 SHIM, THRUST (T0.4)SHIM, THRUST (T0.4)
-
2290105-08108-00 BOLT, FLANGEBOLT, FLANGE
-
232S3-17446-00-00 PLATEPLATE
-
2490110-08067-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
