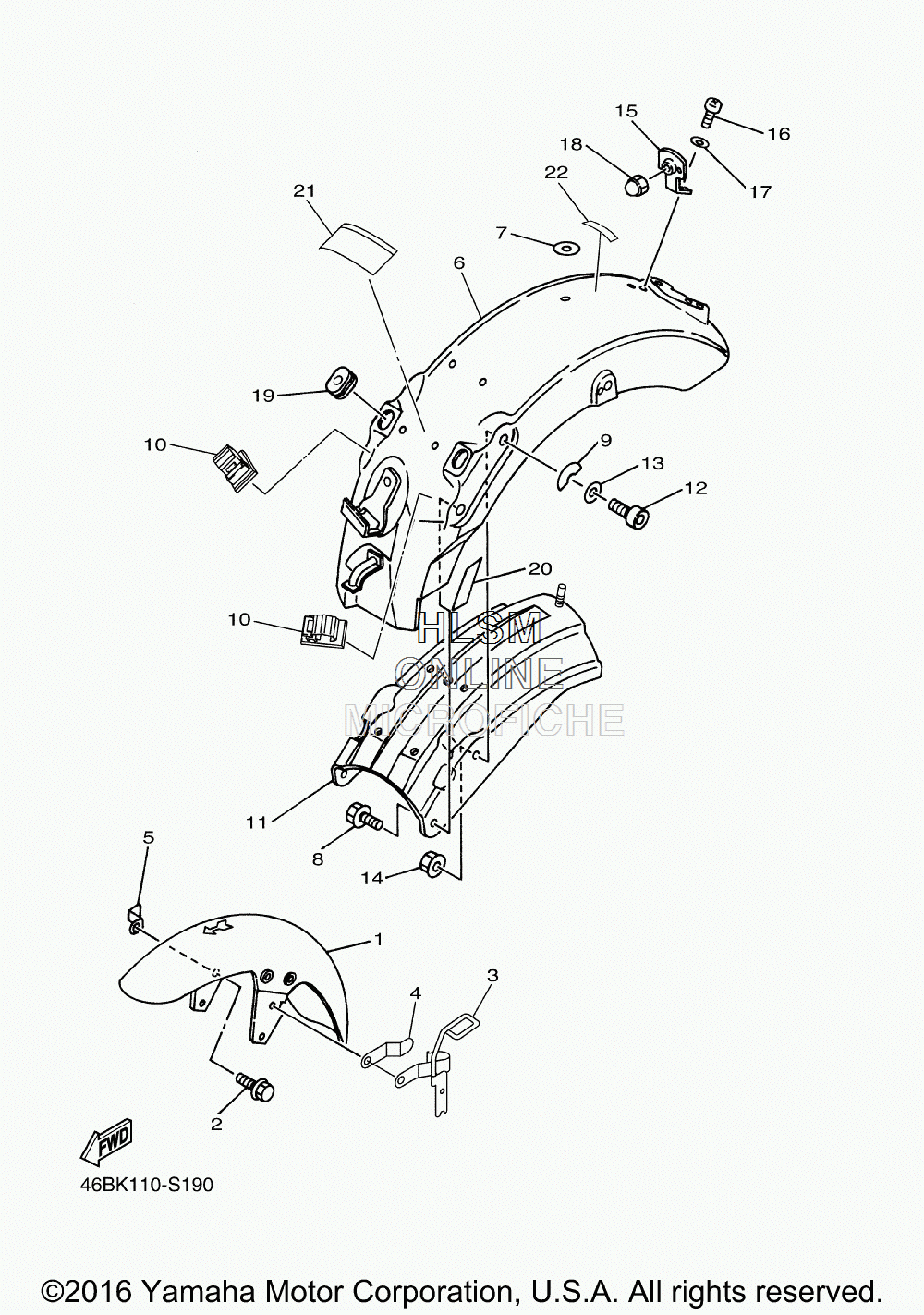

FENDER - FRONT / REAR для Yamaha V STAR 250 - 2017 года выпуска`
-
№АртикулНазвание
-
12UJ-21510-00-9G FRONT FENDER COMP. (FRS - FROST SILVER)FRONT FENDER COMP. (FRS - FROST SILVER)
-
295024-08012-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
33DN-21597-00-00 HOLDER, WIRE 1HOLDER, WIRE 1
-
42UJ-26116-00-00 STOPPER 2STOPPER 2
-
53DN-21586-00-00 BRACKETBRACKET
-
62UJ-21610-00-9G REAR FENDER COMP. (FRS - FROST SILVER)REAR FENDER COMP. (FRS - FROST SILVER)
-
72UJ-21735-00-00 SEAL 2SEAL 2
-
895817-10020-00 BOLT, FLANGEBOLT, FLANGE
-
93DM-2173N-00-00 SEAL 4SEAL 4
-
1090464-14002-00 CLAMPCLAMP
-
112UJ-21670-20-00 REINF. COMP.REINF. COMP.
-
1291317-10035-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
1392907-10600-00 WASHER, PLATEWASHER, PLATE
-
1495707-10500-00 NUT, FLANGENUT, FLANGE
-
152UJ-21641-00-00 BRACKET, REFLECTORBRACKET, REFLECTOR
-
1698507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1792907-05600-00 WASHER, PLATEWASHER, PLATE
-
1895307-05800-00 NUTNUT
-
1990480-01502-00 GROMMETGROMMET
-
202UJ-2173M-01-00 SEAL 3SEAL 3
-
2110D-2815N-00-00 LABEL, NOTICE BATTERYLABEL, NOTICE BATTERY
-
221D6-2153E-10-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
