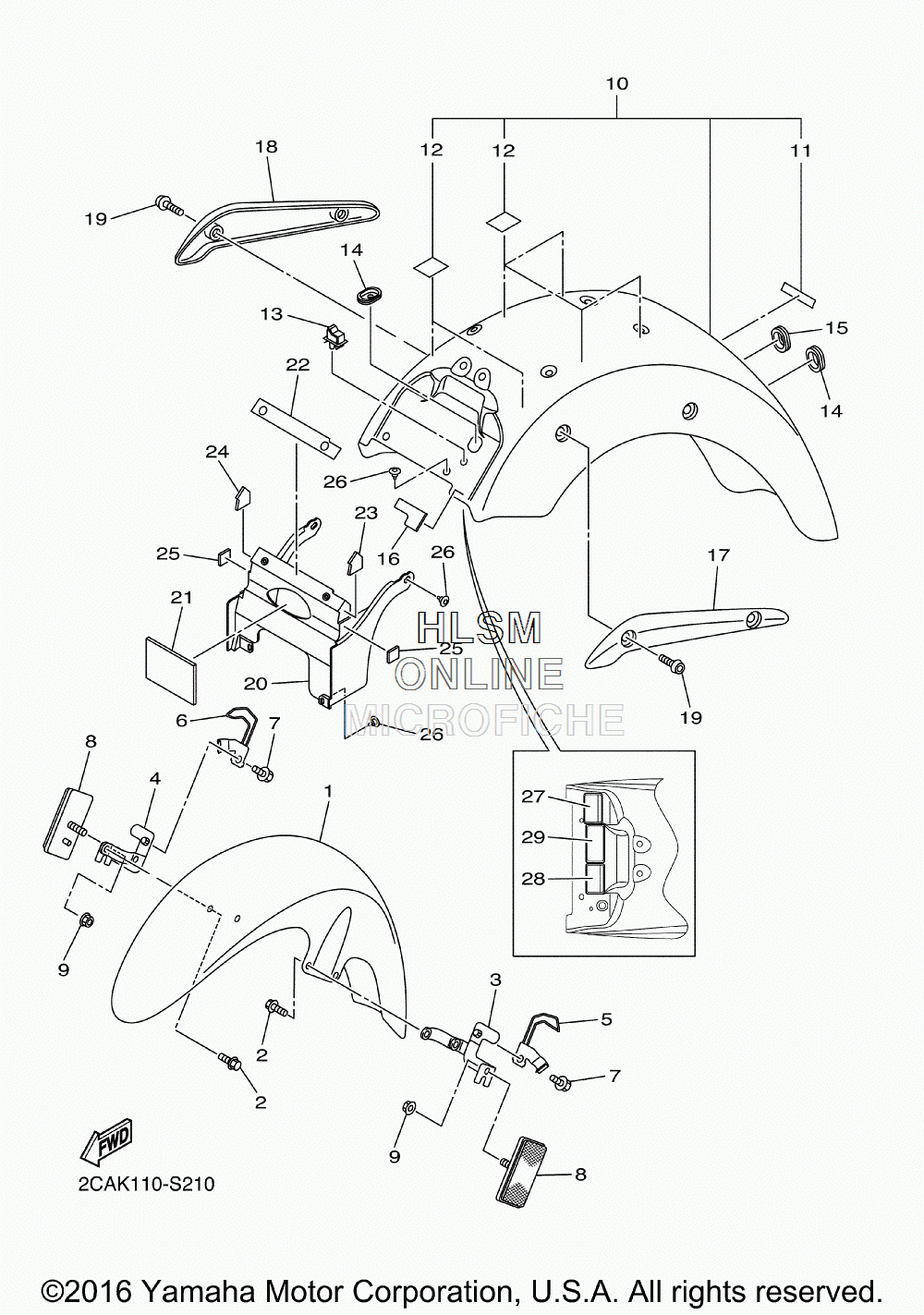

FENDER - FRONT / REAR для Yamaha V STAR 1300 DELUXE - 2017 года выпуска`
-
№АртикулНазвание
-
13D8-21510-01-P0 FRONT FENDER COMP. (SMX - BLACK METALLIC)FRONT FENDER COMP. (SMX - BLACK METALLIC)
-
295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
33D8-21587-00-00 STAY 1STAY 1
-
43D8-21588-00-00 STAY 2STAY 2
-
53D8-21597-00-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
63D8-21598-00-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
795027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
811H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
995707-05500-00 NUT, FLANGENUT, FLANGE
-
103D8-W216R-11-P0 REAR FENDER ASSY (SMX - BLACK METALLIC)REAR FENDER ASSY (SMX - BLACK METALLIC)
-
111D6-2153E-00-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
125PX-21669-01-00 ...SEAL...SEAL
-
1390464-16021-00 CLAMPCLAMP
-
1490480-01015-00 GROMMETGROMMET
-
1590338-20004-00 PLUGPLUG
-
163D8-21747-00-00 DAMPERDAMPER
-
173D8-2164F-20-00 STAY 1STAY 1
-
183D8-2164G-20-00 STAY 2STAY 2
-
1990111-08033-00 BOLT, HEX. SOCKET BUTTON (SMX - BLACK METALLIC)BOLT, HEX. SOCKET BUTTON (SMX - BLACK METALLIC)
-
203D8-21629-00-P0 GUARD, MUDGUARD, MUD
-
213D8-21621-00-00 FLAPFLAP
-
223D8-21638-00-00 DAMPER 1DAMPER 1
-
233D8-21639-00-00 DAMPER 2DAMPER 2
-
243D8-21649-00-00 DAMPERDAMPER
-
253D8-21652-00-00 PROTECTORPROTECTOR
-
2690269-07077-00 RIVETRIVET
-
275RU-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
-
2834B-21684-00-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
-
291D7-21668-00-00 LABEL, TIRELABEL, TIRE
