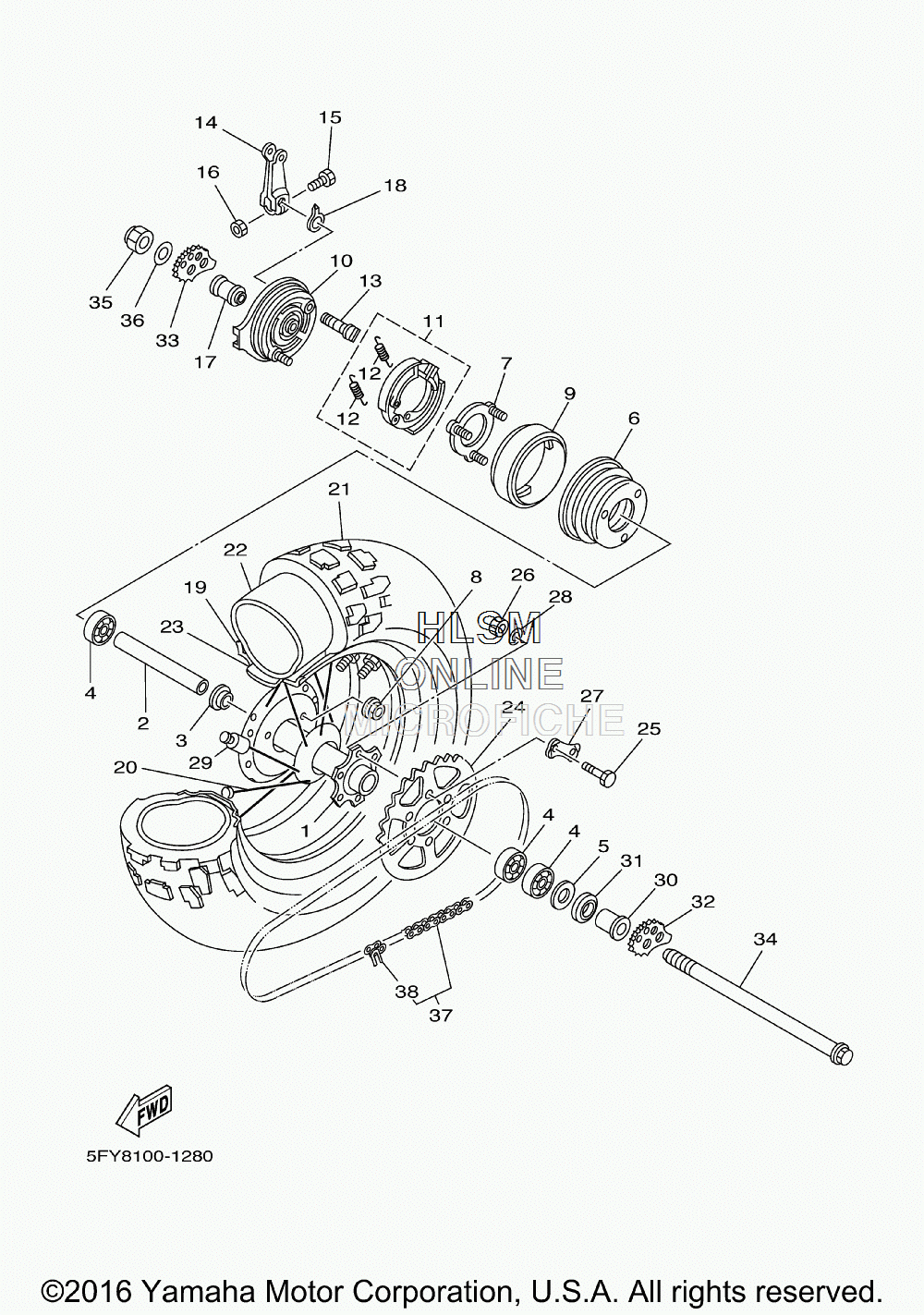

WHEEL - REAR для Yamaha TW200 - 2017 года выпуска`
-
№АртикулНазвание
-
12JX-25311-00-00 HUB, REARHUB, REAR
-
290560-17305-00 SPACERSPACER
-
3152-25115-00-00 FLANGE, SPACER 1FLANGE, SPACER 1
-
493306-20348-00 BEARINGBEARING
-
593102-25311-00 OIL SEAL (FPJ 25-44-8 TS)OIL SEAL (FPJ 25-44-8 TS)
-
65V7-2511E-00-35 DRUM, BRAKE (SL - SILVER)DRUM, BRAKE (SL - SILVER)
-
754G-25185-00-00 RING 1RING 1
-
890179-08410-00 NUTNUT
-
92JX-25336-00-00 RING 2RING 2
-
102JX-25321-02-35 PLATE, BRAKE SHOE (SL - SILVER)PLATE, BRAKE SHOE (SL - SILVER)
-
114KN-W253E-11-00 BRAKE SHOE KITBRAKE SHOE KIT
-
1290506-15260-00 ...SPRING, TENSION...SPRING, TENSION
-
133Y6-25351-00-00 CAMSHAFTCAMSHAFT
-
142N3-25155-00-00 LEVER, CAMSHAFT 1LEVER, CAMSHAFT 1
-
1590101-06278-00 BOLTBOLT
-
1695307-06600-00 NUTNUT
-
1790387-171T1-00 COLLARCOLLAR
-
182JX-2533A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
1994445-14605-00 RIM (MT4.50-14 M/C)RIM (MT4.50-14 M/C)
-
202JX-25304-21-00 SPOKE SET, REARSPOKE SET, REAR
-
2194118-145U1-00 TIRE (180/80-14 M/C 78P TW34) (BRIDGESTONE)TIRE (180/80-14 M/C 78P TW34) (BRIDGESTONE)
-
2294218-14251-00 TUBE (180/80-14 M/C TR4) (BRIDGESTONE)TUBE (180/80-14 M/C TR4) (BRIDGESTONE)
-
2394318-14149-00 BAND, RIM (4.50-14) (BRIDGESTONE)BAND, RIM (4.50-14) (BRIDGESTONE)
-
2415A-25450-20-00 SPROCKET, DRIVEN (50T)SPROCKET, DRIVEN (50T)
-
2590109-08618-00 BOLTBOLT
-
2690185-08089-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2790215-08160-00 WASHER, LOCKWASHER, LOCK
-
2890201-086P8-00 WASHER, PLATEWASHER, PLATE
-
293HT-25398-00-00 BALANCER, WHEEL (15G)BALANCER, WHEEL (15G)
-
3090387-171T2-00 COLLARCOLLAR
-
3136R-25367-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
323Y1-25388-01-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
333Y1-25389-00-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
342JX-25381-11-00 AXLE, WHEELAXLE, WHEEL
-
3590185-16002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3690201-164H4-00 WASHER, PLATEWASHER, PLATE
-
3794580-88122-00 CHAIN (DID 428HG-122L)CHAIN (DID 428HG-122L)
-
3894680-88001-00 ...JOINT, CHAIN (DID 428HG)...JOINT, CHAIN (DID 428HG)
