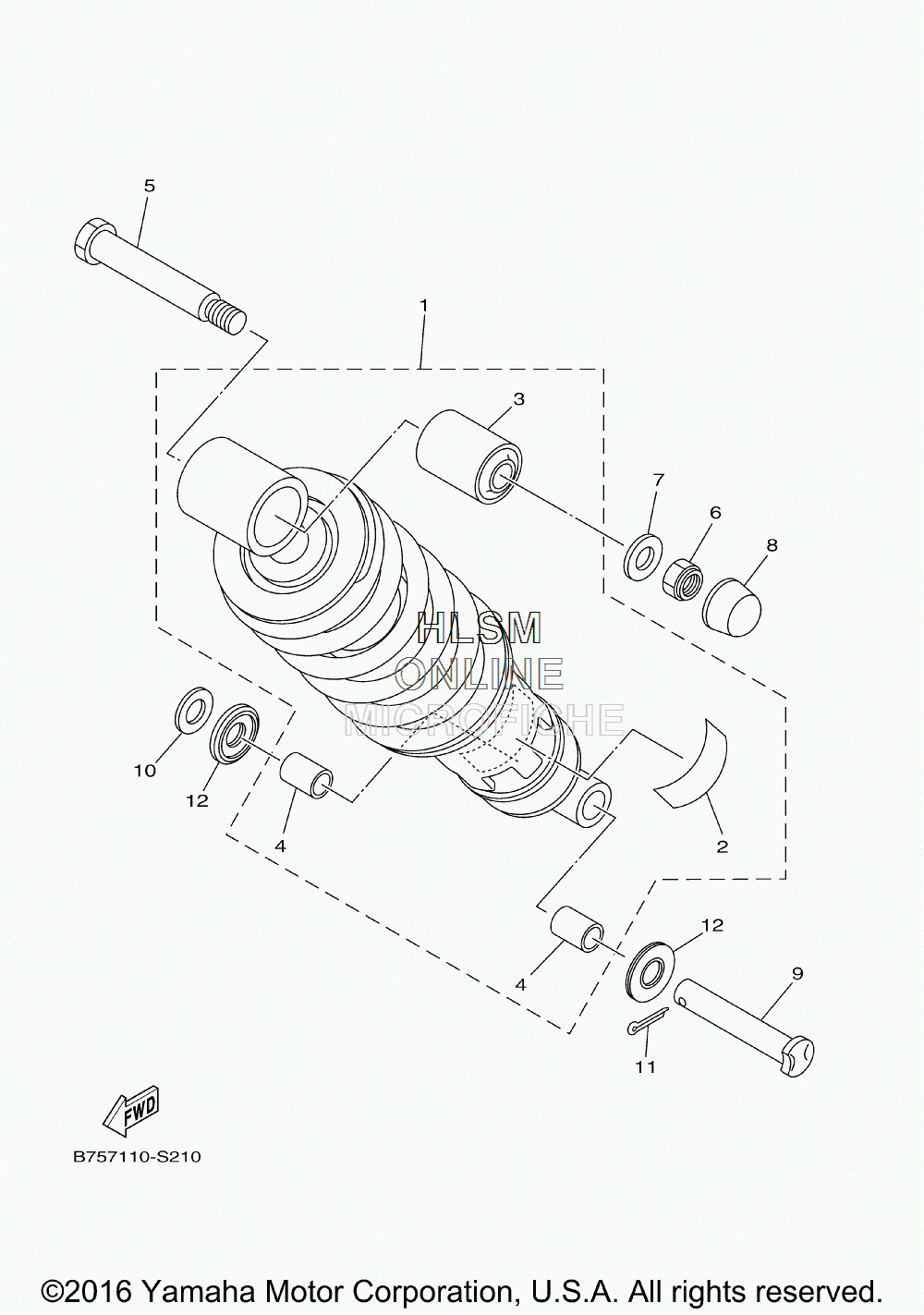

SUSPENSION - REAR SHOCK ABSORBER для Yamaha TW200 - 2017 года выпуска`
-
№АртикулНазвание
-
1B75-22210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
24AA-22259-80-00 ...LABEL, WARNING...LABEL, WARNING
-
31M1-22216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
490380-12051-00 ...BUSH, SOLID...BUSH, SOLID
-
590109-100E2-00 BOLTBOLT
-
695617-10100-00 NUT, UNUT, U
-
790201-100E9-00 WASHER, PLATEWASHER, PLATE
-
850W-25188-00-00 CAPCAP
-
990240-12075-00 PIN, CLEVISPIN, CLEVIS
-
1090201-12749-00 WASHER, PLATEWASHER, PLATE
-
1191401-30025-00 PIN, COTTERPIN, COTTER
-
1230X-22129-00-00 COVER, THRUST 2COVER, THRUST 2
