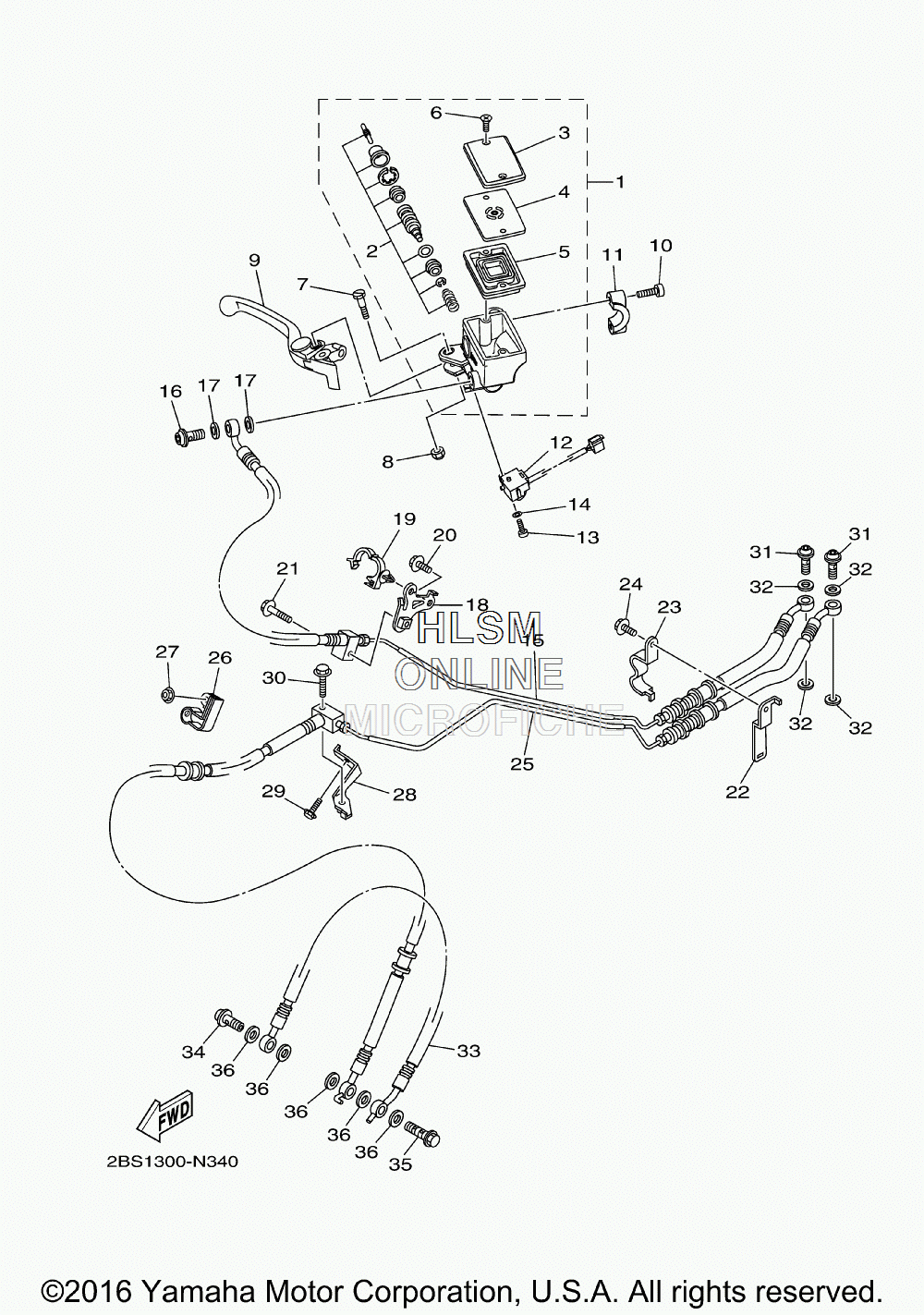

BRAKE - FRONT MASTER CYLINDER для Yamaha SUPER TENERE ES - 2017 года выпуска`
-
№АртикулНазвание
-
123P-2580A-00-00 MASTER CYLINDER SUB ASSY 2MASTER CYLINDER SUB ASSY 2
-
22D1-25807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35VS-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
45VS-25855-00-00 ...BUSH, DIAPHRAGM...BUSH, DIAPHRAGM
-
520S-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
65VS-2589H-00-00 ...SCREW...SCREW
-
723P-2589F-10-00 BOLT, LEVERBOLT, LEVER
-
895617-06100-00 NUT, S/LNUT, S/L
-
95VS-83922-00-00 LEVER 2LEVER 2
-
105VS-26332-00-00 BOLTBOLT
-
115VS-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
122BS-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1398502-04014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492902-04600-00 WASHER, PLATEWASHER, PLATE
-
1523P-2584B-00-00 HOSE, BRAKEHOSE, BRAKE
-
1690401-10172-00 BOLT, UNIONBOLT, UNION
-
1790430-10005-00 GASKETGASKET
-
1823P-2588G-00-00 HOLDER, BRAKE HOSE 6HOLDER, BRAKE HOSE 6
-
1990464-30001-00 CLAMPCLAMP
-
2095022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2195022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2223P-2639F-00-00 HOLDER 2HOLDER 2
-
2323P-26482-00-00 HOLDER, 3HOLDER, 3
-
2492012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2523P-2584C-00-00 HOSE, BRAKEHOSE, BRAKE
-
262BS-2588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
2795702-06500-00 NUT, FLANGENUT, FLANGE
-
2823P-26475-00-00 HOLDERHOLDER
-
2995022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3095022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
3190401-10172-00 BOLT, UNIONBOLT, UNION
-
3290430-10005-00 GASKETGASKET
-
3323P-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
3490401-10172-00 BOLT, UNIONBOLT, UNION
-
3590401-10038-00 BOLT, UNIONBOLT, UNION
-
3690430-10005-00 GASKETGASKET
