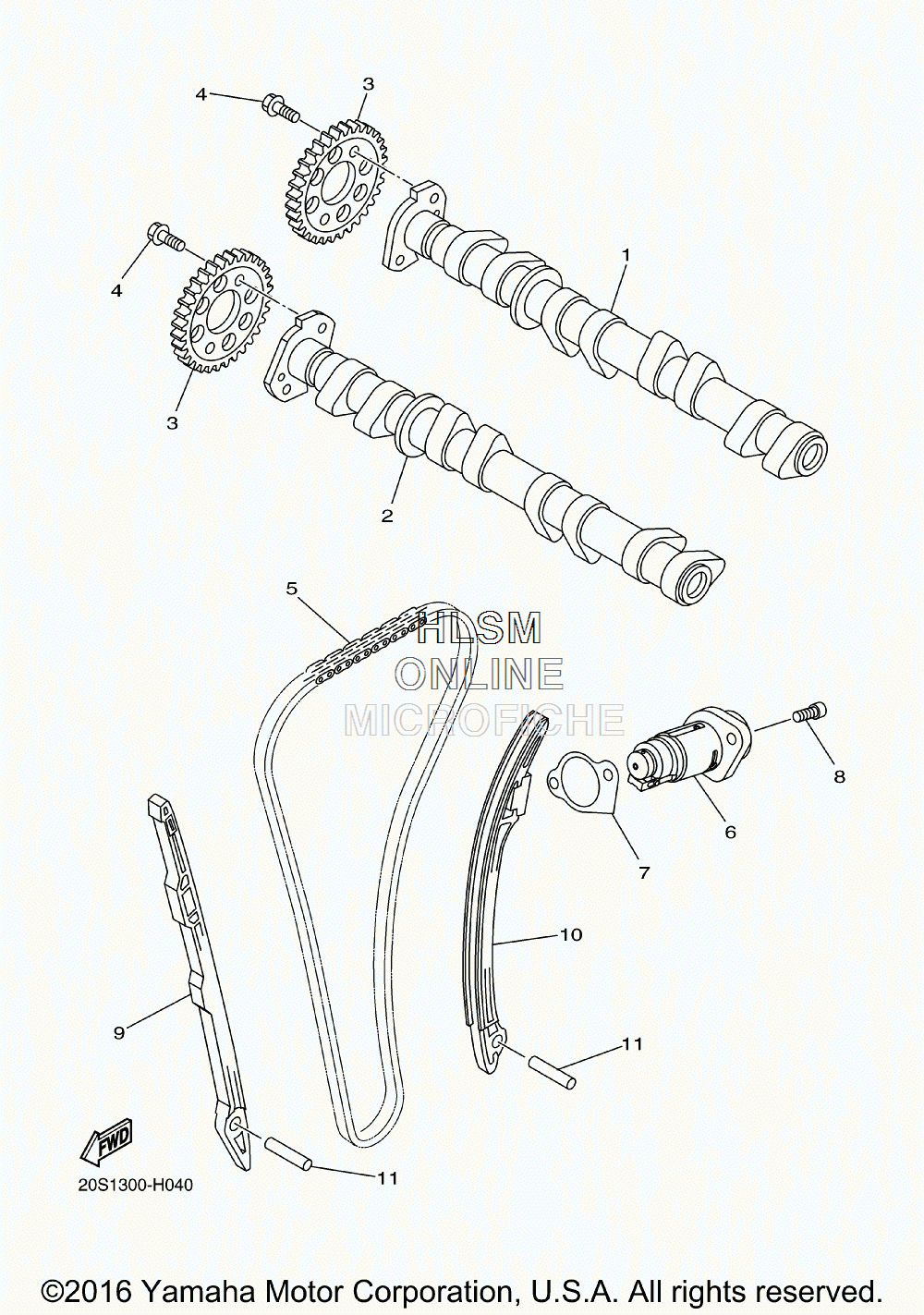

CAMSHAFT W/ CHAIN для Yamaha FZ6R - 2017 года выпуска`
-
№АртикулНазвание
-
120S-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
220S-12180-00-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
320S-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
594591-68120-00 CHAIN (98XRH2010-120N2)CHAIN (98XRH2010-120N2)
-
620S-12210-10-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
72C0-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
890110-06335-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
92C0-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
1013S-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1193607-44002-00 PIN, DOWELPIN, DOWEL
