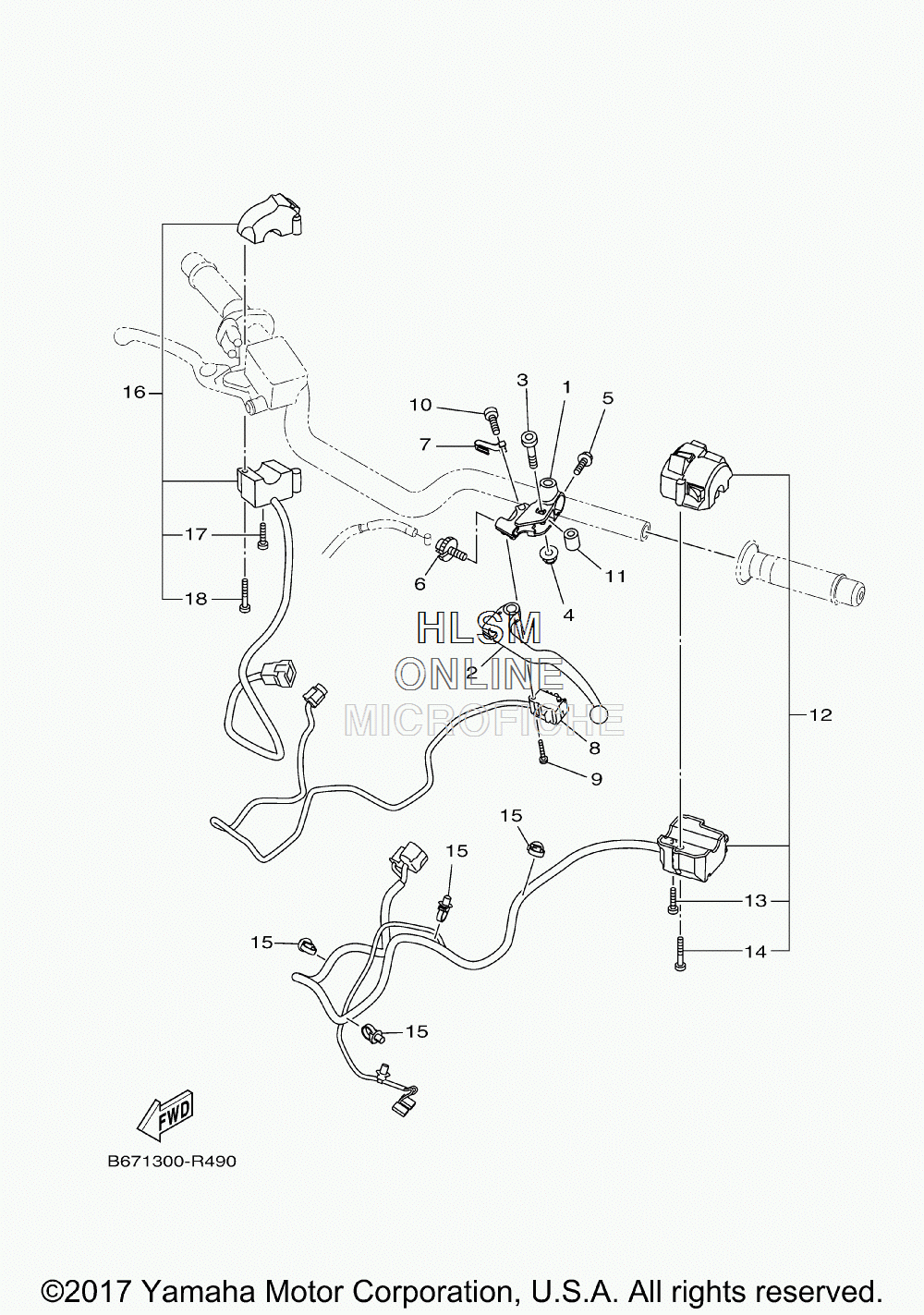

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha FZ10 - 2017 года выпуска`
-
№АртикулНазвание
-
1B67-82911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
2B67-83912-00-00 LEVER 1LEVER 1
-
32C0-83945-00-00 BOLT, LEVERBOLT, LEVER
-
495607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
595027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
65LV-83951-00-00 BOLT, CABLE ADJUSTINGBOLT, CABLE ADJUSTING
-
74XV-83929-00-00 PLATE, SPRINGPLATE, SPRING
-
8B67-82917-00-00 SWITCHSWITCH
-
990159-04011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1098507-04010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
115JJ-83913-00-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
12B67-83954-00-00 SWITCH, HANDLE 7SWITCH, HANDLE 7
-
1398507-05040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1498507-05055-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1590464-30010-00 CLAMPCLAMP
-
16B67-83963-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1798507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1898507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
