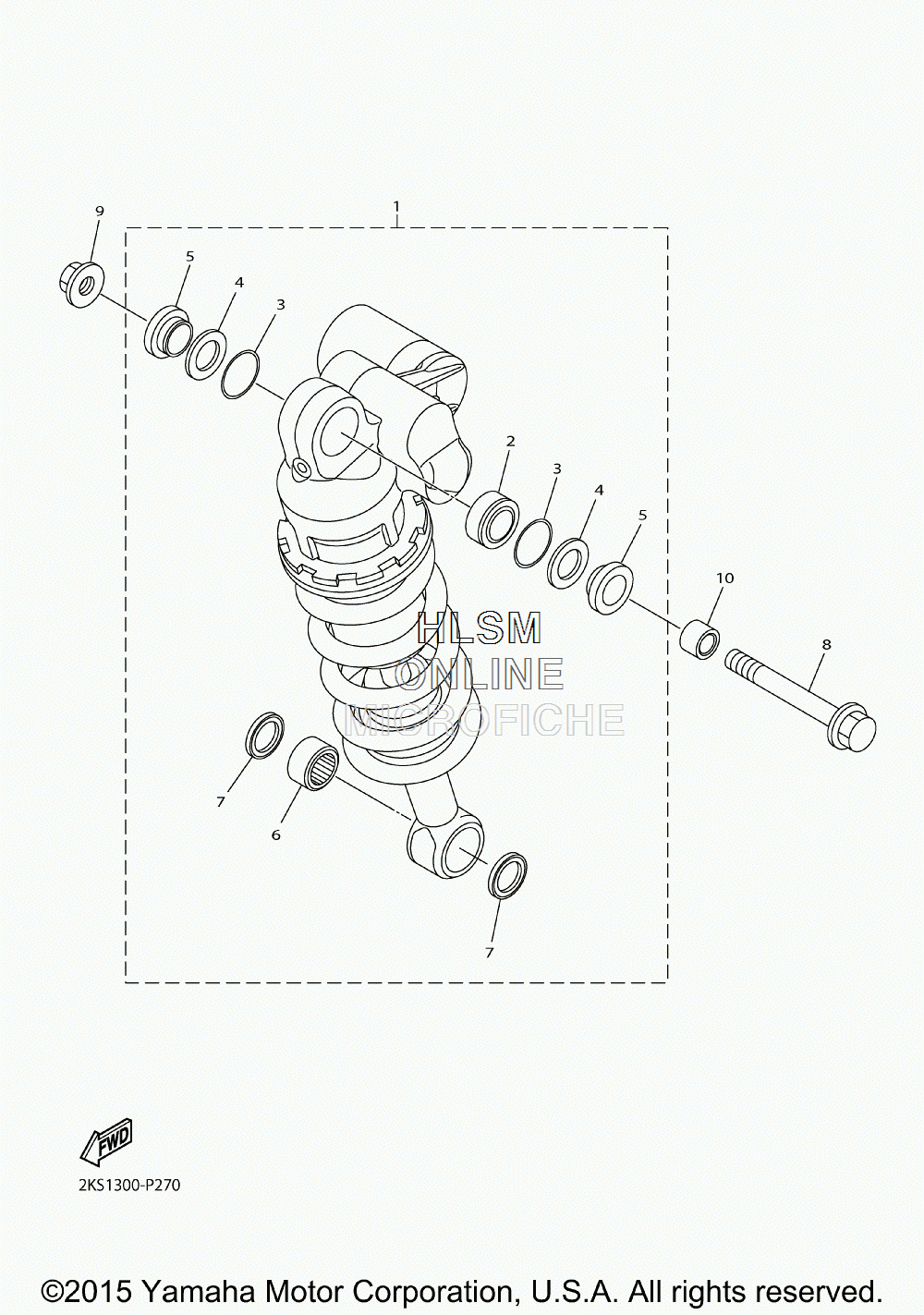

SUSPENSION - REAR SHOCK ABSORBER для Yamaha YZFR1 M [YZFR1MG] - 2016 года выпуска`
-
№АртикулНазвание
-
12KS-22210-10-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
22KS-22176-00-00 ...BEARING...BEARING
-
32KS-23183-00-00 ...CIRCLIP...CIRCLIP
-
42KS-22474-00-00 ...SEAL, RING...SEAL, RING
-
52KS-22253-00-00 ...COLLAR, DISTANCE...COLLAR, DISTANCE
-
693315-31758-00 ...BEARING...BEARING
-
793109-17071-00 ...OIL SEAL...OIL SEAL
-
890105-10609-00 BOLT WASHER BASEDBOLT WASHER BASED
-
995602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
1090387-1013U-00 COLLARCOLLAR
