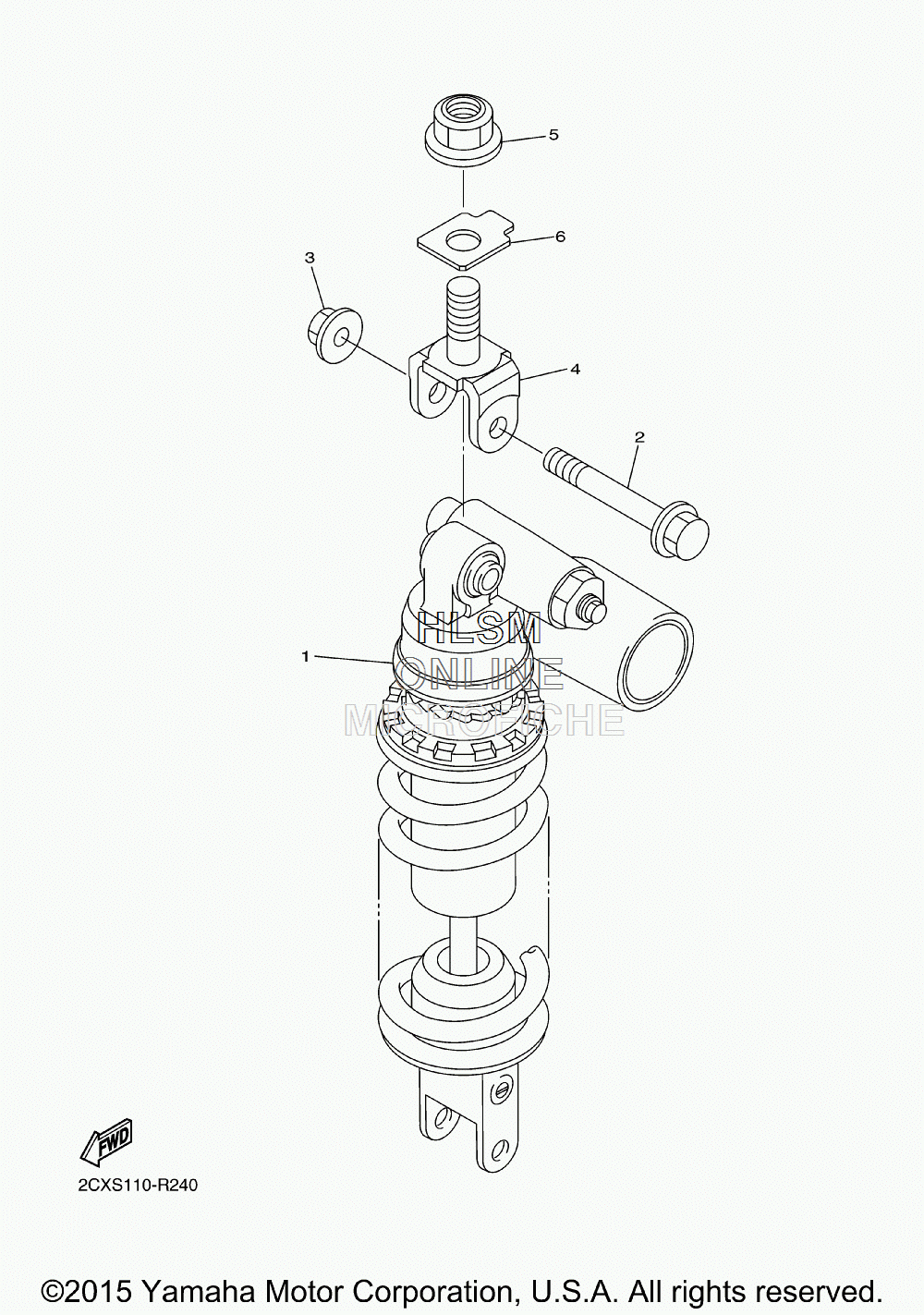

SUSPENSION - REAR SHOCK ABSORBER для Yamaha YZF-R6 [YZFR6GGY] - 2016 года выпуска`
-
№АртикулНазвание
-
12CX-22210-50-00 SHOCK ABSORBER ASSY, REAR (FOR DPBMC)SHOCK ABSORBER ASSY, REAR (FOR DPBMC)
-
12CX-22210-20-00 SHOCK ABSORBER ASSY, REAR (FOR MNM3)SHOCK ABSORBER ASSY, REAR (FOR MNM3)
-
290105-10402-00 BOLT WASHER BASEDBOLT WASHER BASED
-
395602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
413S-22219-00-00 BRACKET, UPPERBRACKET, UPPER
-
595602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
613S-22243-00-00 WASHER 1WASHER 1
