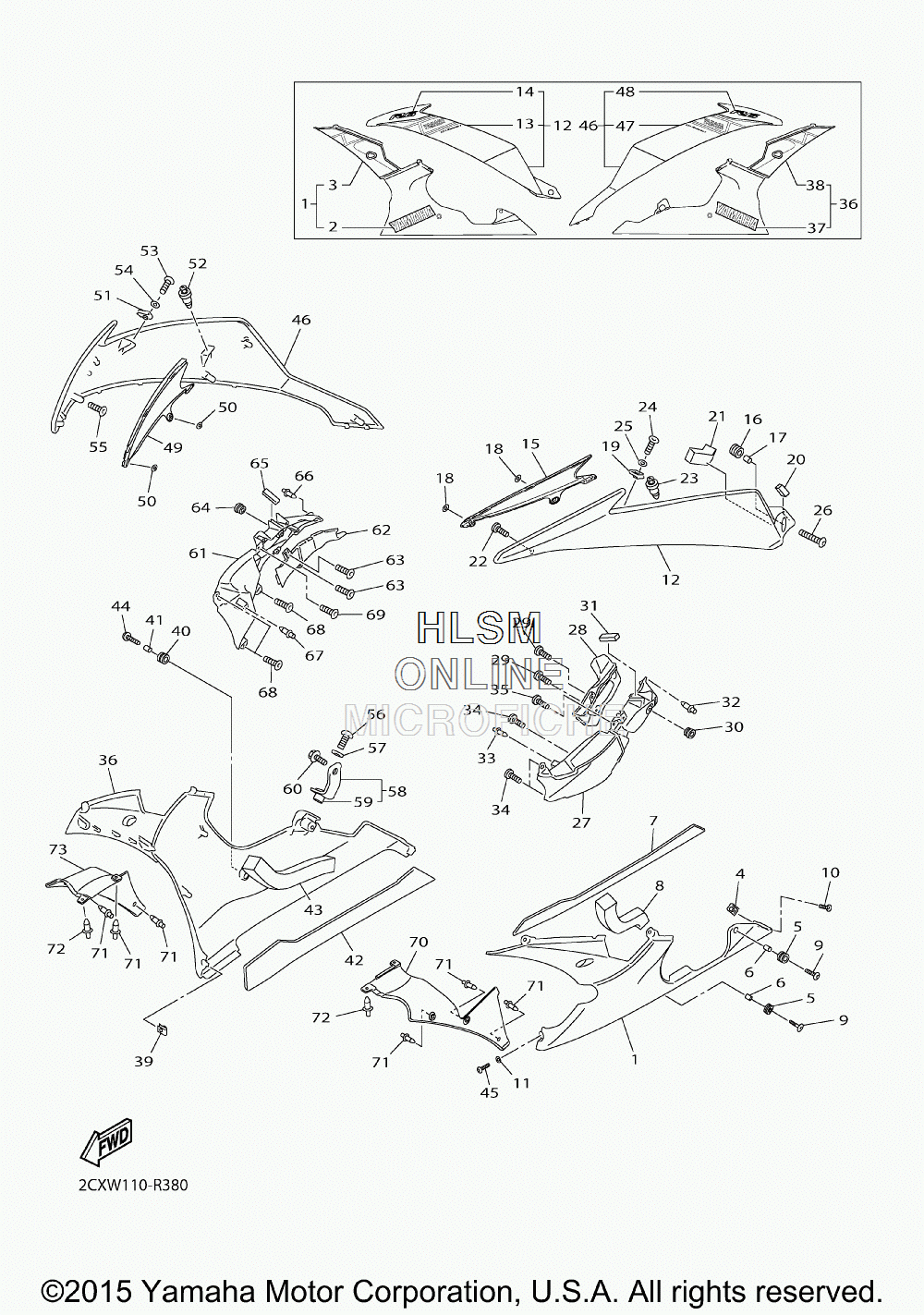

COWLING 2 для Yamaha YZF-R6 60TH ANNIVERSARY [YZFR6GY] - 2016 года выпуска
-
№АртикулНазвание
-
113S-W2838-V0-33 UNDER COVER COMP. 1 (YB)UNDER COVER COMP. 1 (YB)
-
299241-00240-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
32CX-283A1-50-00 ...GRAPHIC, UNDER COVER 1...GRAPHIC, UNDER COVER 1
-
490183-05076-00 NUT, SPRINGNUT, SPRING
-
590480-14003-00 GROMMETGROMMET
-
690387-06260-00 COLLARCOLLAR
-
713S-2838G-00-00 SEAT 1SEAT 1
-
890520-50002-00 DAMPER, PLATEDAMPER, PLATE
-
990111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1090110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190202-05180-00 WASHER, PLATEWASHER, PLATE
-
1213S-W283U-U0-0X PANEL ASSY 1 (LRYS1/YB)PANEL ASSY 1 (LRYS1/YB)
-
132CX-28391-A0-00 ...GRAPHIC 1...GRAPHIC 1
-
142CX-28328-40-00 ...EMBLEM...EMBLEM
-
1513S-28219-00-00 COVER 1COVER 1
-
1690480-14003-00 GROMMETGROMMET
-
1790387-06260-00 COLLARCOLLAR
-
1890183-05M02-00 NUT, SPRINGNUT, SPRING
-
1990183-05076-00 NUT, SPRINGNUT, SPRING
-
2013S-28415-00-00 DAMPER 1DAMPER 1
-
2190520-50001-00 DAMPER, PLATEDAMPER, PLATE
-
2297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2390269-07007-00 RIVETRIVET
-
2490110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590202-05180-00 WASHER, PLATEWASHER, PLATE
-
2690111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2713S-2137U-00-00 GUIDE, AIR 1GUIDE, AIR 1
-
2813S-2137K-00-00 GUIDE, AIR 3GUIDE, AIR 3
-
2997702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
3090480-01558-00 GROMMETGROMMET
-
3113S-28217-00-00 DAMPER 1DAMPER 1
-
3290269-06008-00 RIVETRIVET
-
3390269-06081-00 RIVETRIVET
-
3497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
3597702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
3613S-W2839-V0-33 UNDER COVER COMP. 2 (YB)UNDER COVER COMP. 2 (YB)
-
3799241-00240-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
382CX-283A2-50-00 ...GRAPHIC, UNDER COVER 2...GRAPHIC, UNDER COVER 2
-
3990183-05076-00 NUT, SPRINGNUT, SPRING
-
4090480-14003-00 GROMMETGROMMET
-
4190387-06260-00 COLLARCOLLAR
-
4213S-2848K-00-00 SEAT 2SEAT 2
-
4313S-2847R-00-00 DAMPER 10DAMPER 10
-
4490111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4590110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4613S-W283V-U0-0X PANEL ASSY 2 (LRYS1/YB)PANEL ASSY 2 (LRYS1/YB)
-
472CX-28392-A0-00 ...GRAPHIC 2...GRAPHIC 2
-
482CX-28328-40-00 ...EMBLEM...EMBLEM
-
4913S-28229-00-00 COVER 2COVER 2
-
5090183-05M02-00 NUT, SPRINGNUT, SPRING
-
5190183-05076-00 NUT, SPRINGNUT, SPRING
-
5290269-07007-00 RIVETRIVET
-
5390110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5490202-05180-00 WASHER, PLATEWASHER, PLATE
-
5597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
5690109-06207-00 BOLTBOLT
-
5790202-10024-00 WASHER, PLATEWASHER, PLATE
-
5813S-2836G-00-00 BRACKET 4BRACKET 4
-
5990179-06059-00 ...NUT...NUT
-
6090105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
6113S-2137V-00-00 GUIDE, AIR 2GUIDE, AIR 2
-
6213S-2137L-00-00 GUIDE, AIR 4GUIDE, AIR 4
-
6397702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
6490480-01558-00 GROMMETGROMMET
-
6513S-28217-00-00 DAMPER 1DAMPER 1
-
6690269-06008-00 RIVETRIVET
-
6790269-06081-00 RIVETRIVET
-
6897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
6997702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
7013S-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
7190269-06008-00 RIVETRIVET
-
7290269-06002-00 RIVETRIVET
-
7313S-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
