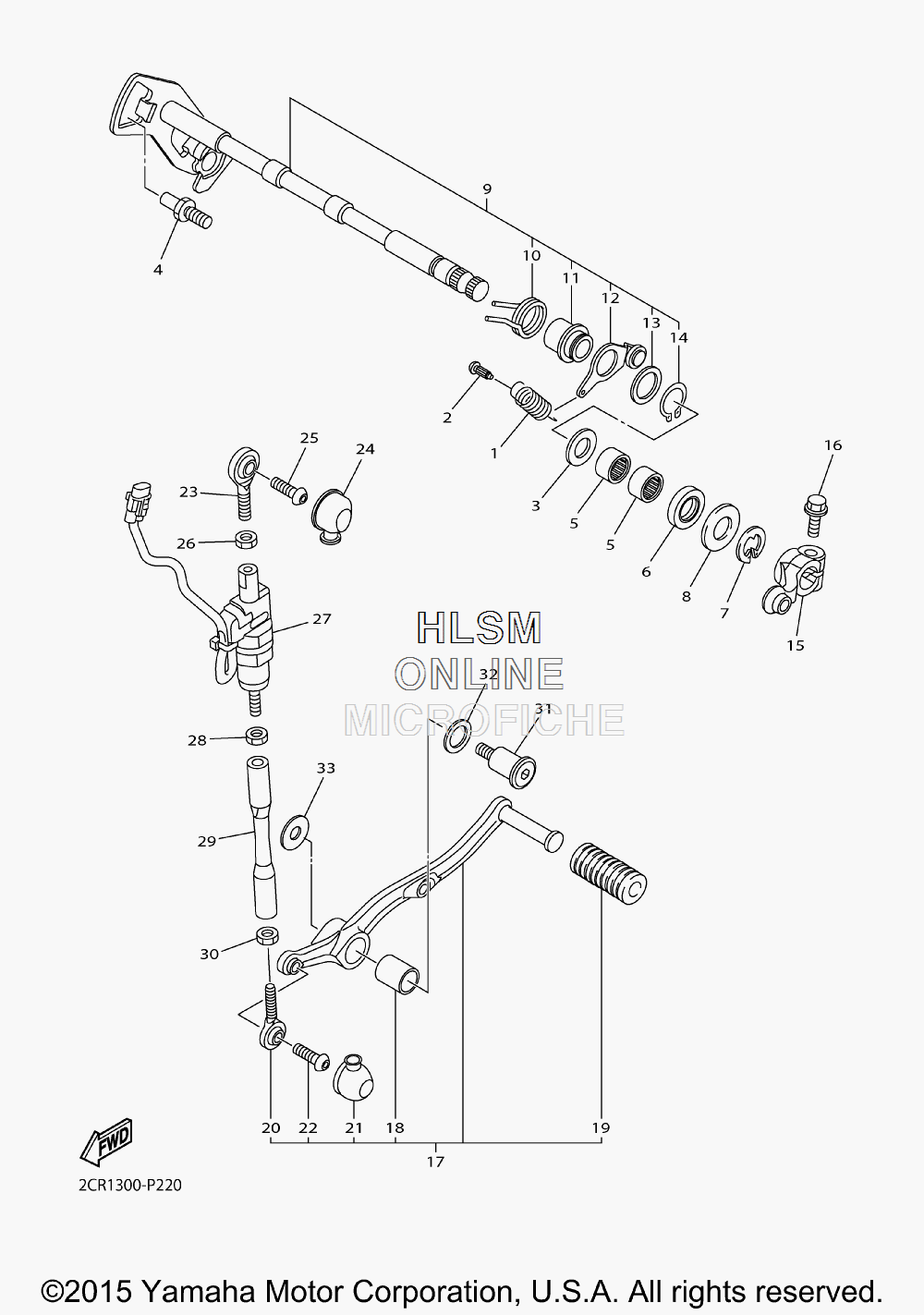

SHIFT SHAFT для Yamaha YZF-R1 60TH ANNIVERSARY [YZFR1GY] - 2016 года выпуска`
-
№АртикулНазвание
-
190506-18021-00 SPRING, TENSIONSPRING, TENSION
-
2132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
390201-127E1-00 WASHER, PLATEWASHER, PLATE
-
41D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
593317-11295-00 BEARINGBEARING
-
693102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
799002-10600-00 CIRCLIPCIRCLIP
-
890201-12575-00 WASHER, PLATEWASHER, PLATE
-
92CR-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
1090508-32141-00 ...SPRING, TORSION...SPRING, TORSION
-
112C0-18175-00-00 ...SPACER...SPACER
-
1214B-18140-00-00 ...STOPPER LEVER ASSY...STOPPER LEVER ASSY
-
1390201-177G4-00 ...WASHER, PLATE...WASHER, PLATE
-
1499009-17400-00 ...CIRCLIP...CIRCLIP
-
152CR-18112-00-00 ARM, SHIFTARM, SHIFT
-
1690105-06127-00 BOLT, FLANGEBOLT, FLANGE
-
172CR-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
1890386-14171-00 ...BUSH...BUSH
-
195EB-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
205LV-18117-00-00 ...JOINT, ROD 2...JOINT, ROD 2
-
214XV-18154-00-00 ...COVER, DUST...COVER, DUST
-
2290111-06019-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
235LV-18116-00-00 JOINT, ROD 1JOINT, ROD 1
-
244XV-18154-00-00 COVER, DUSTCOVER, DUST
-
2590111-06019-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2695304-06700-00 NUTNUT
-
272CR-82470-00-00 SHIFT SWITCH ASSYSHIFT SWITCH ASSY
-
2895304-06700-00 NUTNUT
-
292CR-18115-00-00 ROD, SHIFTROD, SHIFT
-
3090170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
314C8-27434-00-00 BOLTBOLT
-
3290206-14086-00 WASHER, WAVEWASHER, WAVE
-
3390201-08103-00 WASHER, PLATEWASHER, PLATE
