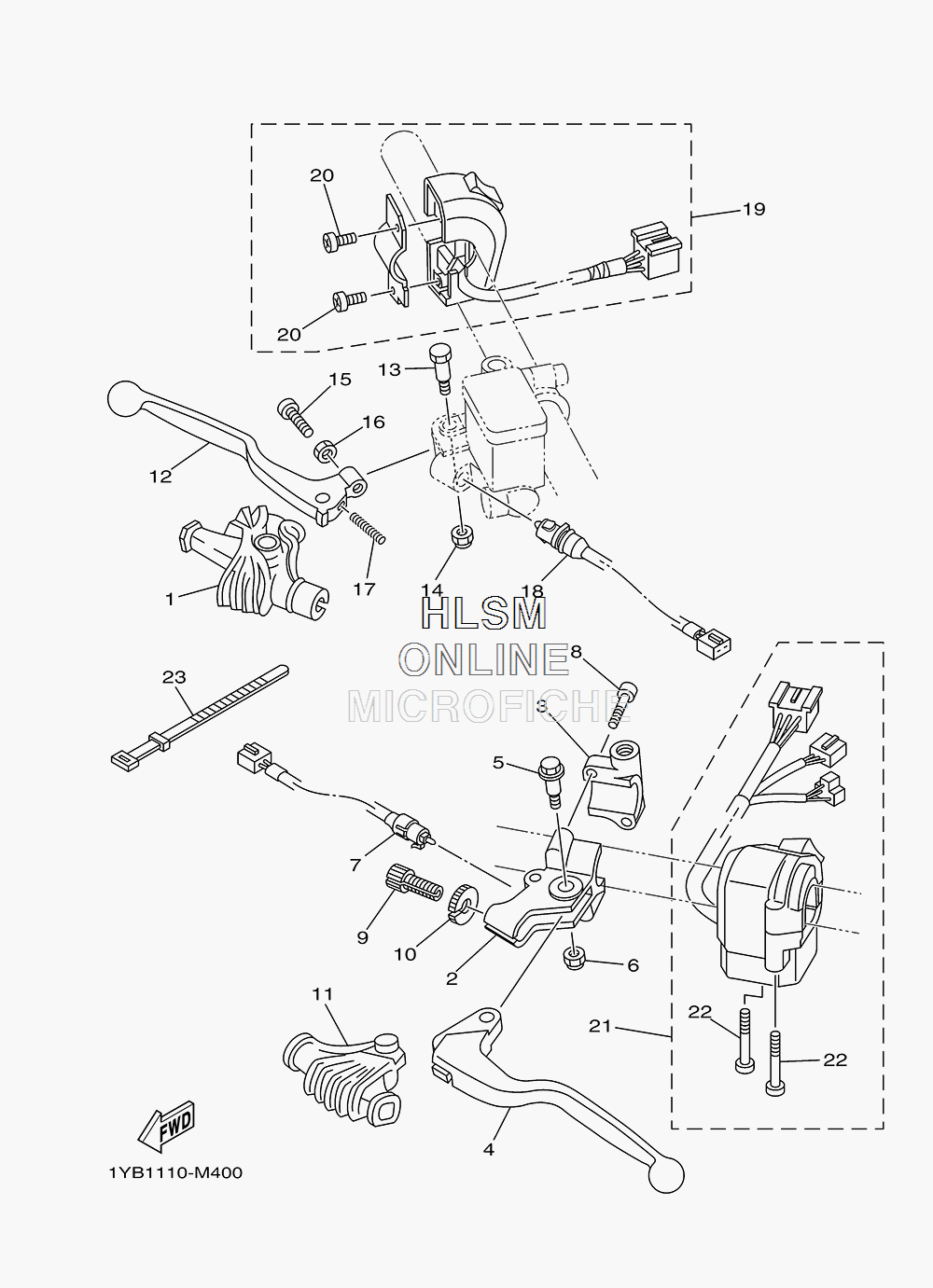

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha XT250 [XT250G] - 2016 года выпуска`
-
№АртикулНазвание
-
11T5-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
25XT-82911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
333G-82913-01-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
423X-83912-02-00 LEVER 1LEVER 1
-
590109-06798-00 ...BOLT...BOLT
-
695602-06100-00 NUT, UNUT, U
-
73C5-82917-00-00 SWITCHSWITCH
-
891317-05020-00 BOLTBOLT
-
990123-08002-00 BOLTBOLT
-
1090179-08030-00 NUTNUT
-
111E6-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
1255Y-83922-02-00 LEVER 2LEVER 2
-
1390109-06255-00 BOLTBOLT
-
1495602-06100-00 NUT, UNUT, U
-
1590154-06028-00 SCREW, BINDINGSCREW, BINDING
-
1690170-06020-00 NUTNUT
-
1790501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
183C5-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
193C5-83975-10-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
2098507-05018-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
213C5-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
2298507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
23437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
