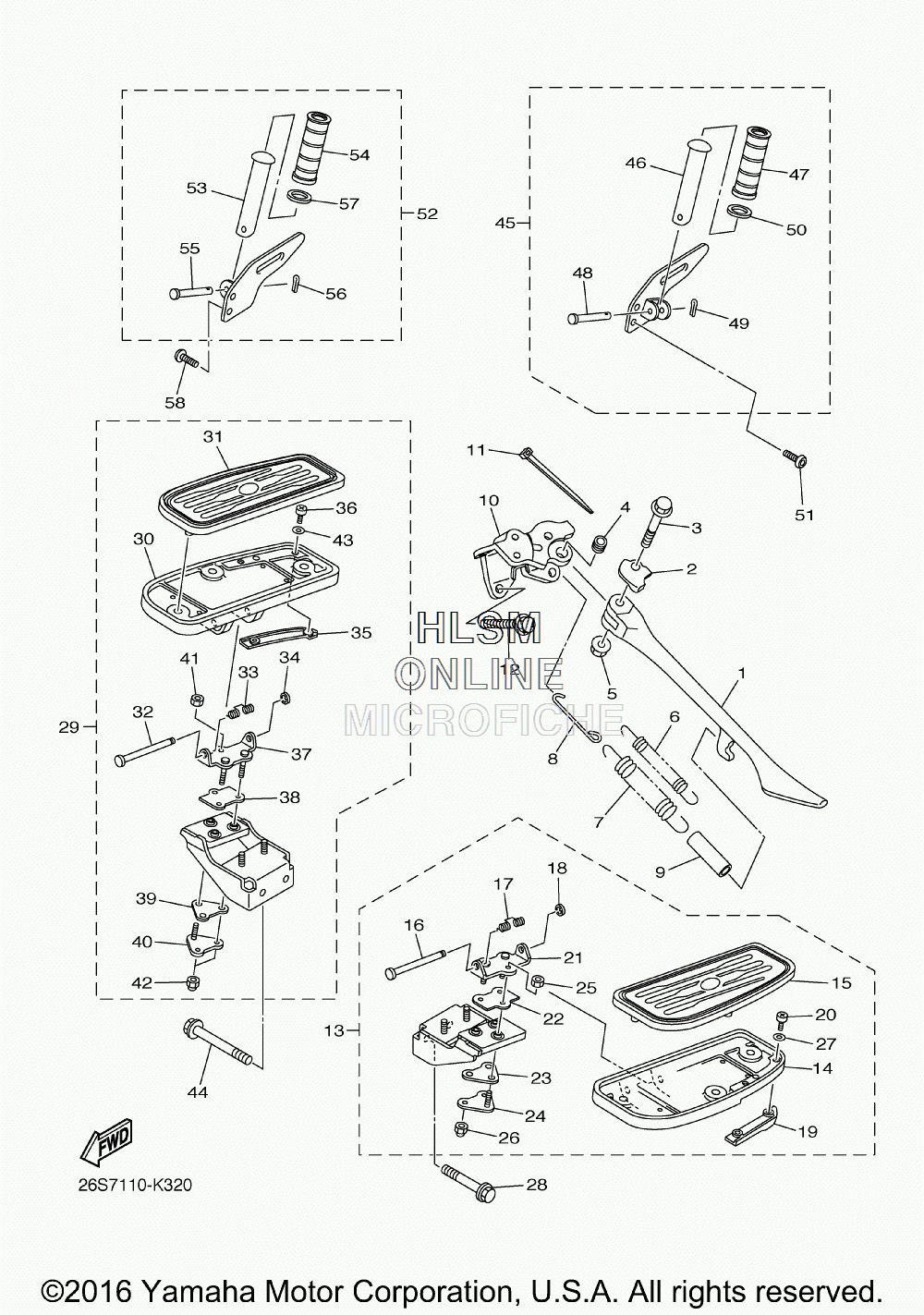

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha VSTAR 950 TOURER (GRAY) [XVS95CTGB] - 2016 года выпуска
-
№АртикулНазвание
-
15S7-27311-00-00 STAND, SIDESTAND, SIDE
-
25S7-27322-00-00 WASHERWASHER
-
390105-10354-00 BOLT, FLANGEBOLT, FLANGE
-
490387-1003G-00 COLLARCOLLAR
-
590185-10008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
690506-23015-00 SPRING, TENSIONSPRING, TENSION
-
790506-29006-00 SPRING, TENSIONSPRING, TENSION
-
83D8-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
990445-16641-00 HOSE (L60)HOSE (L60)
-
103D8-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
111UA-82591-00-00 BANDBAND
-
1290105-10157-00 BOLT, FLANGEBOLT, FLANGE
-
135S7-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
144NK-27451-10-00 ...FOOTREST...FOOTREST
-
155S7-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
161D7-27427-00-00 ...SHAFT...SHAFT
-
171D7-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
1899002-06600-00 ...CIRCLIP...CIRCLIP
-
194WM-27496-00-00 ...MOLE 1...MOLE 1
-
2090157-05026-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
215S7-2787A-00-00 ...BRACKET 1...BRACKET 1
-
225S7-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
235S7-27424-00-00 ...DAMPER, FOOTREST 2...DAMPER, FOOTREST 2
-
245S7-27123-00-00 ...PLATE, STOPPER...PLATE, STOPPER
-
2595312-06600-00 ...NUT...NUT
-
2690176-06041-00 ...NUT, CROWN...NUT, CROWN
-
2792902-05200-00 ...WASHER...WASHER
-
2890105-10362-00 BOLT, FLANGEBOLT, FLANGE
-
295S7-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
304NK-27461-10-00 ...FOOTREST...FOOTREST
-
315S7-27423-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
321D7-27427-00-00 ...SHAFT...SHAFT
-
331D7-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
3499002-06600-00 ...CIRCLIP...CIRCLIP
-
354WM-27497-00-00 ...MOLE 2...MOLE 2
-
3690157-05026-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
375S7-2787A-00-00 ...BRACKET 1...BRACKET 1
-
385S7-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
395S7-27424-00-00 ...DAMPER, FOOTREST 2...DAMPER, FOOTREST 2
-
405S7-27123-00-00 ...PLATE, STOPPER...PLATE, STOPPER
-
4195312-06600-00 ...NUT...NUT
-
4290176-06041-00 ...NUT, CROWN...NUT, CROWN
-
4392902-05200-00 ...WASHER...WASHER
-
4490105-10345-00 BOLT, FLANGEBOLT, FLANGE
-
455S7-27430-10-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
462GV-27431-00-00 ...FOOTREST, REAR 1...FOOTREST, REAR 1
-
475S7-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
4891701-06032-00 ...PIN...PIN
-
4991401-20012-00 ...PIN, COTTER...PIN, COTTER
-
5090201-20279-00 ...WASHER, PLATE...WASHER, PLATE
-
5190111-08044-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
525S7-27440-10-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
532GV-27431-00-00 ...FOOTREST, REAR 1...FOOTREST, REAR 1
-
545S7-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
5591701-06032-00 ...PIN...PIN
-
5691401-20012-00 ...PIN, COTTER...PIN, COTTER
-
5790201-20279-00 ...WASHER, PLATE...WASHER, PLATE
-
5890111-08044-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
