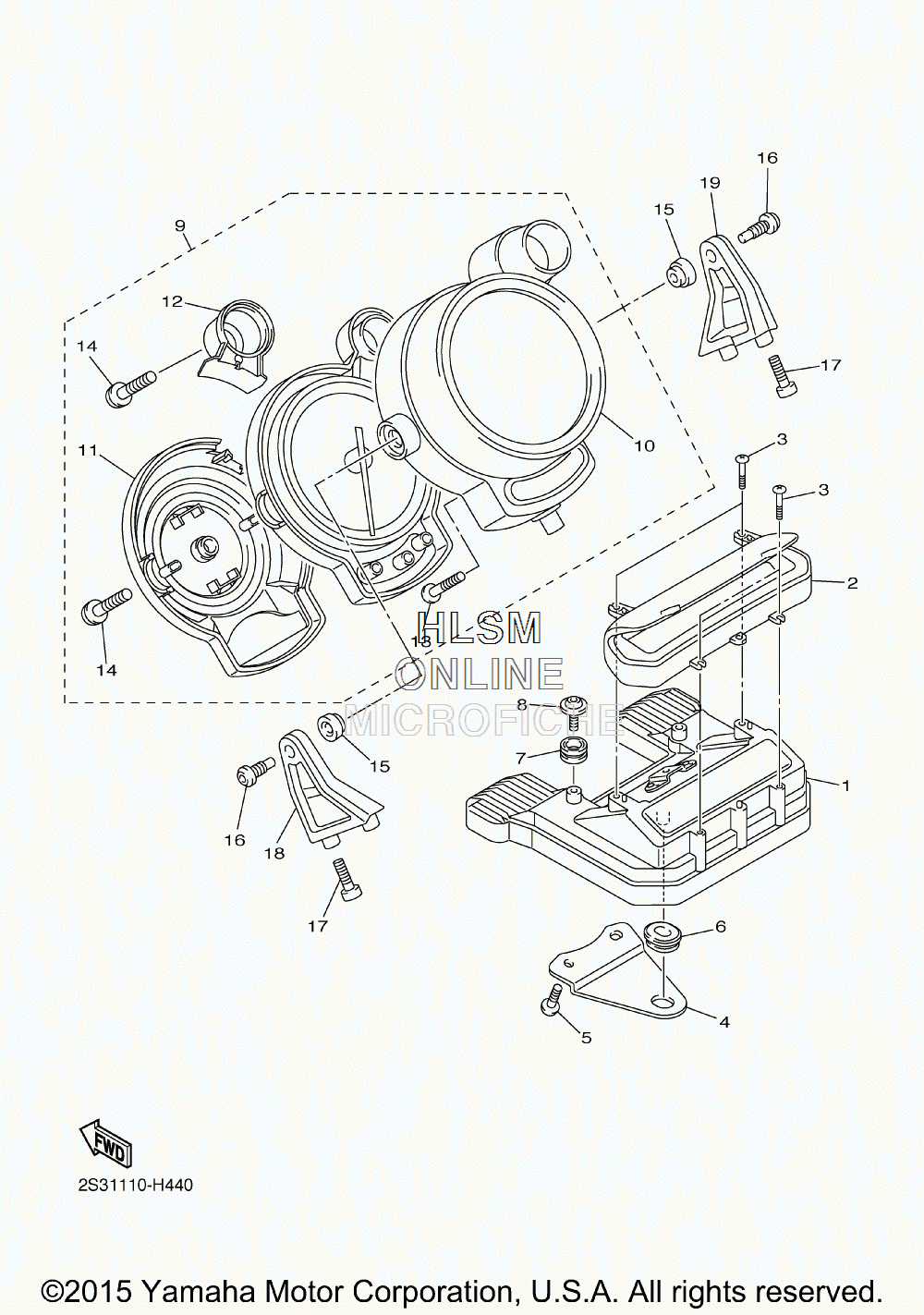

INSTRUMENT PANEL для Yamaha VMAX [VMX17GL] - 2016 года выпуска`
-
№АртикулНазвание
-
12S3-8350A-00-00 METER COMP.(MILE)METER COMP.(MILE)
-
22S3-83579-00-00 COVER, METER 2COVER, METER 2
-
397707-30014-00 SCREW, TAPPINGSCREW, TAPPING
-
42S3-8355X-00-00 BRACKET, METER 1BRACKET, METER 1
-
592012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
690480-01558-00 GROMMETGROMMET
-
790480-14017-00 GROMMETGROMMET
-
890111-06122-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
92S3-83580-00-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
102S3-8353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
112S3-83508-00-00 ...COVER, TACHOMETER...COVER, TACHOMETER
-
122S3-8369W-00-00 ...COVER...COVER
-
134AS-83616-10-00 ...SCREW, TAPPING...SCREW, TAPPING
-
142S3-83616-00-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1590480-11014-00 GROMMETGROMMET
-
1690111-08068-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1791312-06014-00 BOLTBOLT
-
182S3-23486-00-00 STAY, PLATESTAY, PLATE
-
192S3-23487-00-00 STAY, PLATESTAY, PLATE
