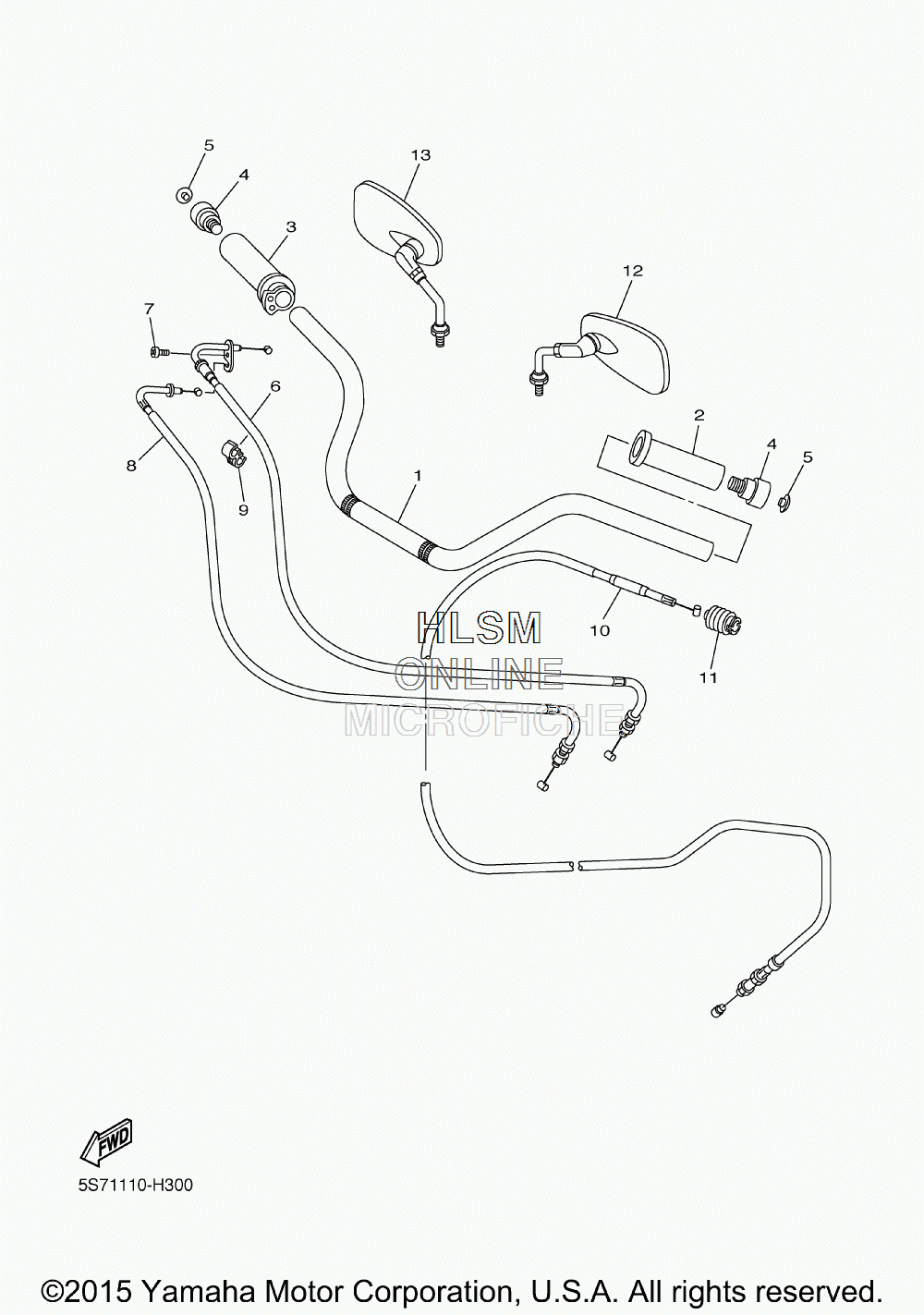

HANDLEBAR W/ CABLES - MIRRORS для Yamaha V STAR 950 [XVS95GL] - 2016 года выпуска`
-
№АртикулНазвание
-
15S7-26111-00-00 HANDLEBARHANDLEBAR
-
24NK-26241-00-00 GRIP(LEFT)GRIP(LEFT)
-
34XY-26240-00-00 GRIP ASSYGRIP ASSY
-
45EL-26246-00-00 END, GRIPEND, GRIP
-
590338-10164-00 PLUG SPEC'L SHAPEPLUG SPEC'L SHAPE
-
65S7-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
798507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
85S7-26312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
990464-06214-00 CLAMPCLAMP
-
105S7-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
111E6-26342-00-00 BOOT, CABLEBOOT, CABLE
-
124XY-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
134XY-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
