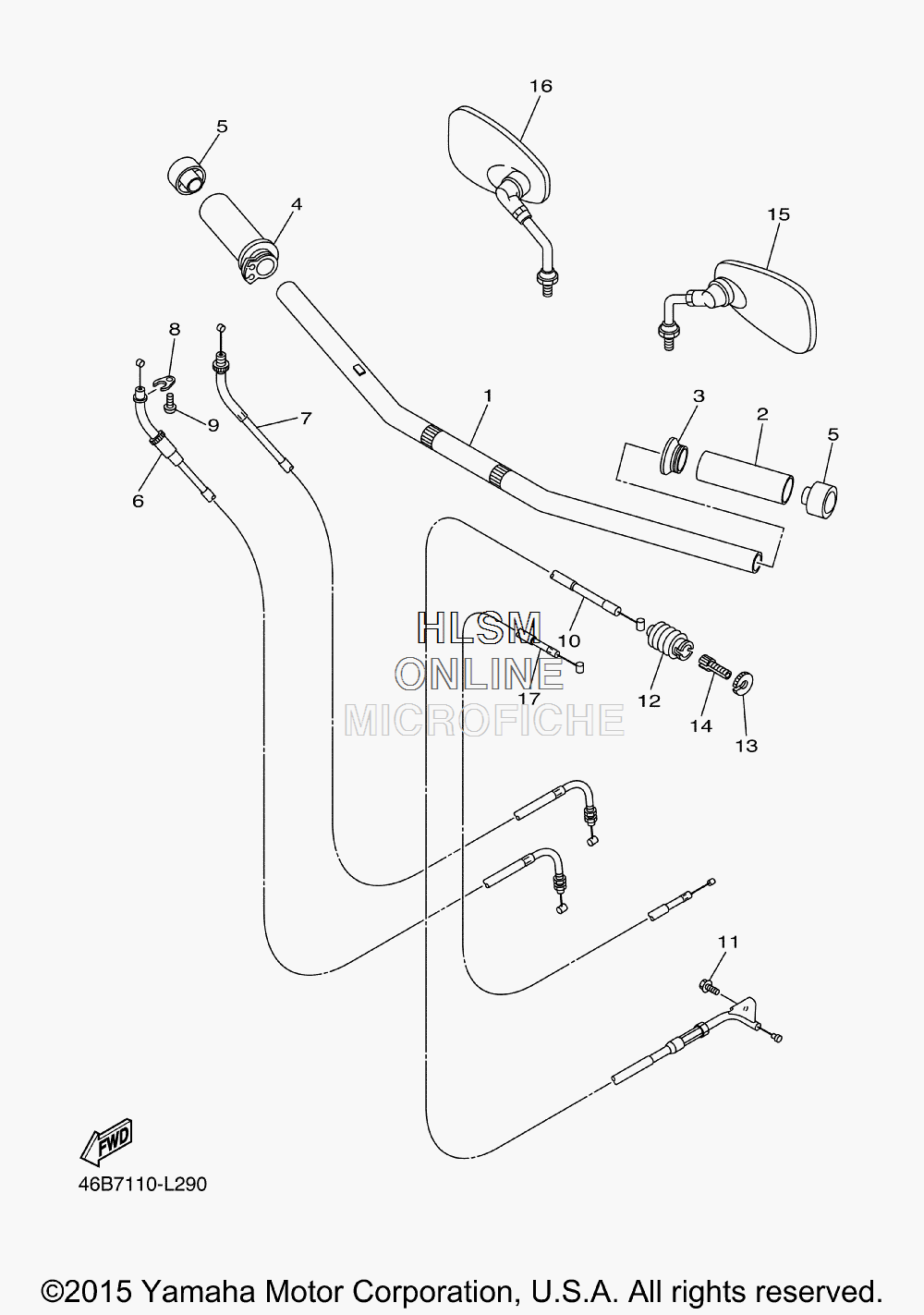

HANDLEBAR W/ CABLES - MIRRORS для Yamaha V STAR 250 [XV250GR] - 2016 года выпуска`
-
№АртикулНазвание
-
146B-26111-00-00 HANDLEBARHANDLEBAR
-
23JB-26241-00-00 GRIPGRIP
-
33JB-26273-00-00 ROTORROTOR
-
43JB-26240-00-00 GRIP ASSYGRIP ASSY
-
53JB-2628J-00-00 CAP, GRIPCAP, GRIP
-
646B-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
746B-26312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
85H0-26393-00-00 HOLDERHOLDER
-
998507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1046B-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
1195027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
121E6-26342-00-00 BOOT, CABLEBOOT, CABLE
-
1390179-08030-00 NUTNUT
-
1490123-08002-00 BOLTBOLT
-
1527D-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
1627D-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
1746B-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
