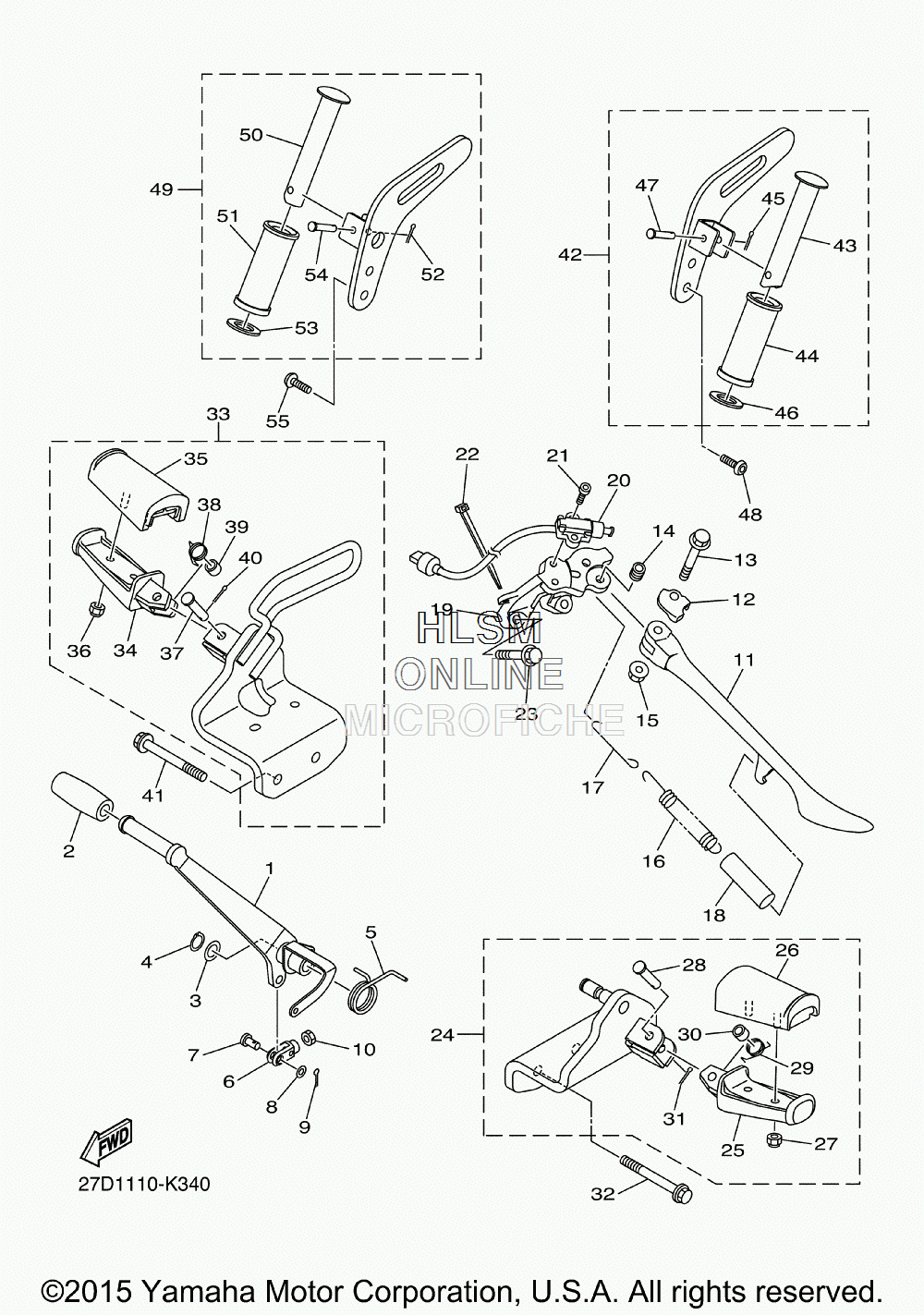

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha STRYKER BULLET COWL [XVS13CGGY] - 2016 года выпуска`
-
№АртикулНазвание
-
127D-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
25VN-18113-00-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
390201-12688-00 WASHER, PLATEWASHER, PLATE
-
499009-12400-00 CIRCLIPCIRCLIP
-
527D-27216-00-00 SPRING, RETURNSPRING, RETURN
-
64FM-27222-00-00 JOINTJOINT
-
790240-08124-00 PIN, CLEVISPIN, CLEVIS
-
890201-08083-00 WASHER, PLATEWASHER, PLATE
-
991401-20012-00 PIN, COTTERPIN, COTTER
-
1095307-08700-00 NUTNUT
-
115S7-27311-00-00 STAND, SIDESTAND, SIDE
-
125S7-27322-00-00 WASHERWASHER
-
1390105-10354-00 BOLT, FLANGEBOLT, FLANGE
-
1490387-1003G-00 COLLARCOLLAR
-
1590185-10008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690506-35007-00 SPRING, TENSIONSPRING, TENSION
-
173D8-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
1890445-22327-00 HOSE (L70)HOSE (L70)
-
193D8-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
2027D-82566-30-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2190110-05217-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
221UA-82591-00-00 BANDBAND
-
2390105-10157-00 BOLT, FLANGEBOLT, FLANGE
-
2427D-27410-10-00 FRONT FOOTREST ASSY (LEFT) (CALIF ONLY)FRONT FOOTREST ASSY (LEFT) (CALIF ONLY)
-
2427D-27410-00-00 FRONT FOOTREST ASSY (LEFT) (EXCEPT CALIF)FRONT FOOTREST ASSY (LEFT) (EXCEPT CALIF)
-
251NH-27451-00-00 ...FOOTREST...FOOTREST
-
264VR-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
2795607-06100-00 ...NUT, U...NUT, U
-
2890240-08084-00 ...PIN, CLEVIS...PIN, CLEVIS
-
2990508-18696-00 ...SPRING, TORSION...SPRING, TORSION
-
3090387-087K5-00 ...COLLAR...COLLAR
-
3191401-25015-00 ...PIN, COTTER...PIN, COTTER
-
3290105-10399-00 BOLT, FLANGEBOLT, FLANGE
-
3327D-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
341NH-27461-00-00 ...FOOTREST...FOOTREST
-
354VR-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
3695607-06100-00 ...NUT, U...NUT, U
-
3790240-08084-00 ...PIN, CLEVIS...PIN, CLEVIS
-
3890508-18696-00 ...SPRING, TORSION...SPRING, TORSION
-
3990387-087K5-00 ...COLLAR...COLLAR
-
4091401-25015-00 ...PIN, COTTER...PIN, COTTER
-
4190105-10400-00 BOLT, FLANGEBOLT, FLANGE
-
4227D-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
432GV-27431-00-00 ...FOOTREST, REAR 1...FOOTREST, REAR 1
-
445S7-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
4591401-20012-00 ...PIN, COTTER...PIN, COTTER
-
4690201-20279-00 ...WASHER, PLATE...WASHER, PLATE
-
4791701-06032-00 ...PIN...PIN
-
4890111-08044-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4927D-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
502GV-27431-00-00 ...FOOTREST, REAR 1...FOOTREST, REAR 1
-
515S7-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
5291401-20012-00 ...PIN, COTTER...PIN, COTTER
-
5390201-20279-00 ...WASHER, PLATE...WASHER, PLATE
-
5491701-06032-00 ...PIN...PIN
-
5590111-08044-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
