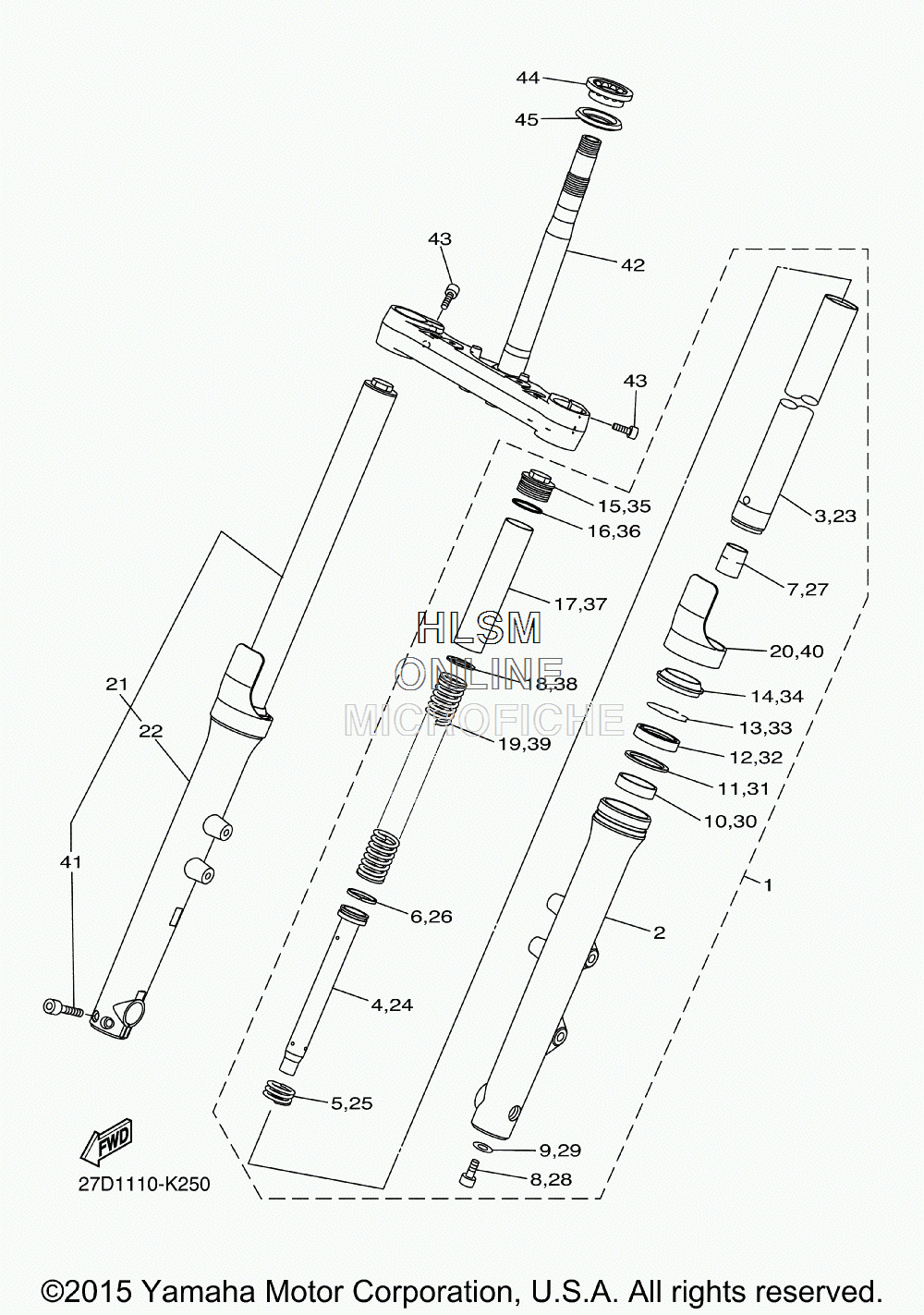

SUSPENSION - FRONT FORK для Yamaha STRYKER (BLUE) [XVS13CGL] - 2016 года выпуска`
-
№АртикулНазвание
-
127D-23102-01-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
227D-23126-01-00 ...TUBE, OUTER (L.H)...TUBE, OUTER (L.H)
-
327D-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
427D-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
53VD-23151-00-00 ...SPRING, REBOUND...SPRING, REBOUND
-
627D-23157-00-00 ...RING, PISTON...RING, PISTON
-
727D-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
890110-10N52-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
990430-10171-00 ...GASKET...GASKET
-
103VD-23125-10-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
113VD-23115-00-00 ...GUIDE, COVER UPPER...GUIDE, COVER UPPER
-
125VU-23145-00-00 ...OIL SEAL...OIL SEAL
-
133VD-23156-00-00 ...RING, SNAP...RING, SNAP
-
143VD-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
1527D-2311H-00-00 ...FORK BOLT...FORK BOLT
-
1693210-35N02-00 ...O-RING...O-RING
-
1727D-23118-00-00 ...SPACER...SPACER
-
1890201-25289-00 ...WASHER, PLATE (T=1.6)...WASHER, PLATE (T=1.6)
-
1927D-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
204TX-2331G-00-00 ...COVER...COVER
-
2127D-23103-01-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
2227D-23136-01-00 ...TUBE, OUTER...TUBE, OUTER
-
2327D-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
2427D-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
253VD-23151-00-00 ...SPRING, REBOUND...SPRING, REBOUND
-
2627D-23157-00-00 ...RING, PISTON...RING, PISTON
-
2727D-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
2890110-10N52-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
2990430-10171-00 ...GASKET...GASKET
-
303VD-23125-10-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
313VD-23115-00-00 ...GUIDE, COVER UPPER...GUIDE, COVER UPPER
-
325VU-23145-00-00 ...OIL SEAL...OIL SEAL
-
333VD-23156-00-00 ...RING, SNAP...RING, SNAP
-
343VD-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
3527D-2311H-00-00 ...FORK BOLT...FORK BOLT
-
3693210-35N02-00 ...O-RING...O-RING
-
3727D-23118-00-00 ...SPACER...SPACER
-
3890201-25289-00 ...WASHER, PLATE (T=1.6)...WASHER, PLATE (T=1.6)
-
3927D-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
404TX-2331G-00-00 ...COVER...COVER
-
4191314-08035-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
4227D-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4391314-10025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4493399-99932-00 BEARINGBEARING
-
453FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
