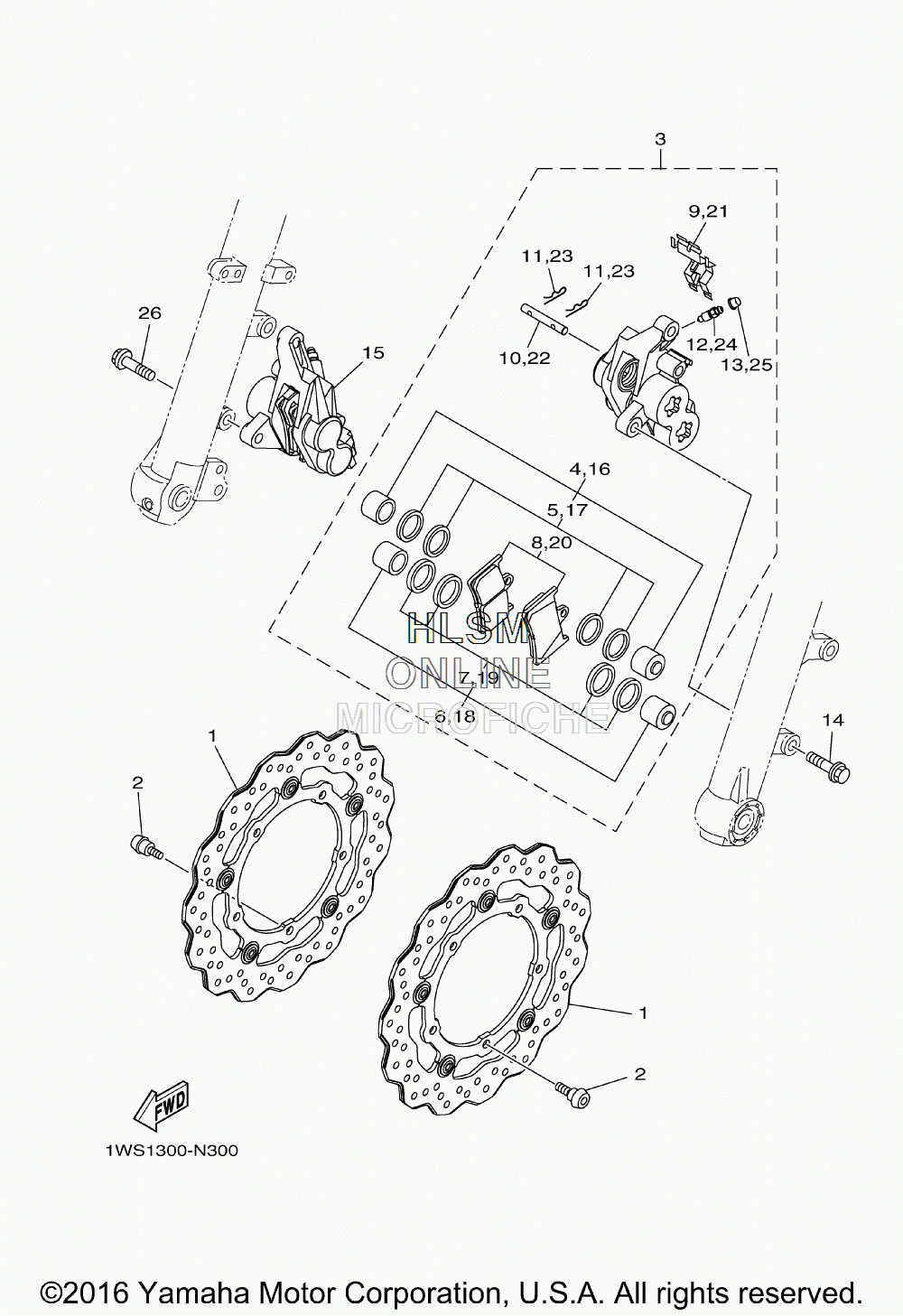

BRAKE - FRONT CALIPER для Yamaha FZ07 [FZ07GGY] - 2016 года выпуска

№

Артикул

Название
1

1WS-2581T-00-00 DISC BRAKE ASSY

DISC BRAKE ASSY
2

90109-064G6-00 BOLT

BOLT
3

1WS-2580T-00-00 CALIPER ASSY (LEFT)

CALIPER ASSY (LEFT)
4

4SV-25802-10-00 ...PISTON ASSY, CALIPER

...PISTON ASSY, CALIPER
5

3GM-25803-10-00 ......CALIPER SEAL KIT

......CALIPER SEAL KIT
6

4SV-25802-00-00 ...PISTON ASSY, CALIPER

...PISTON ASSY, CALIPER
7

3MA-25803-10-00 ......CALIPER SEAL KIT

......CALIPER SEAL KIT
8

1WS-25805-00-00 ...BRAKE PAD KIT

...BRAKE PAD KIT
9

13S-25919-00-00 ...SUPPORT, PAD

...SUPPORT, PAD
10

4SV-25924-00-00 ...PIN, PAD

...PIN, PAD
11

3GM-25925-00-00 ...CLIP

...CLIP
12

1J3-25824-00-00 ...SCREW, BLEED

...SCREW, BLEED
13

306-25825-01-00 ...CAP

...CAP
14

90105-10638-00 BOLT, FLANGE

BOLT, FLANGE
15

1WS-2580U-00-00 CALIPER ASSY (RIGHT)

CALIPER ASSY (RIGHT)
16

4SV-25802-10-00 ...PISTON ASSY, CALIPER

...PISTON ASSY, CALIPER
17

3GM-25803-10-00 ......CALIPER SEAL KIT

......CALIPER SEAL KIT
18

4SV-25802-00-00 ...PISTON ASSY, CALIPER

...PISTON ASSY, CALIPER
19

3MA-25803-10-00 ......CALIPER SEAL KIT

......CALIPER SEAL KIT
20

1WS-25805-00-00 ...BRAKE PAD KIT

...BRAKE PAD KIT
21

13S-25919-00-00 ...SUPPORT, PAD

...SUPPORT, PAD
22

4SV-25924-00-00 ...PIN, PAD

...PIN, PAD
23

3GM-25925-00-00 ...CLIP

...CLIP
24

1J3-25824-00-00 ...SCREW, BLEED

...SCREW, BLEED
25

306-25825-01-00 ...CAP

...CAP
26

90105-10638-00 BOLT, FLANGE

BOLT, FLANGE
