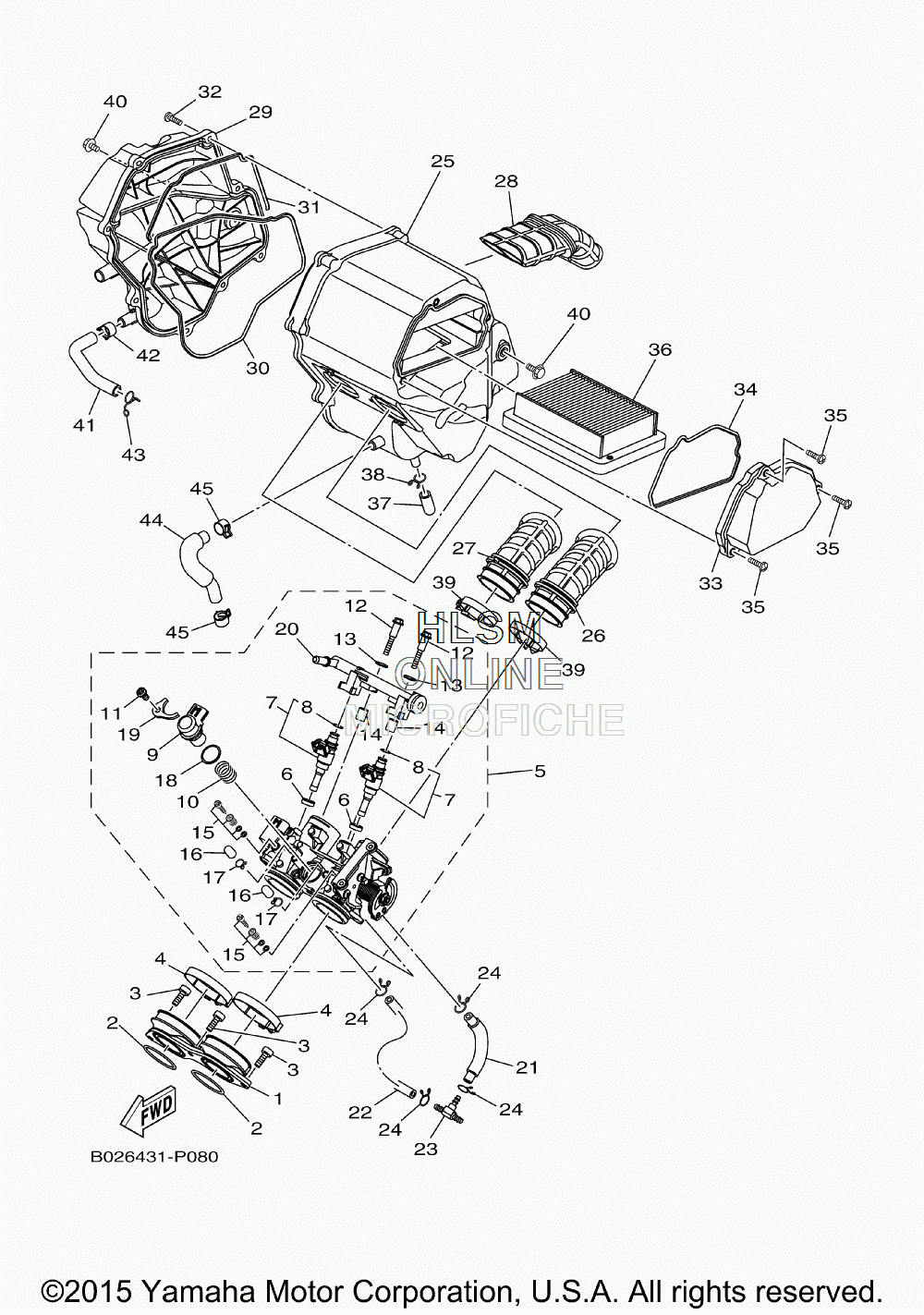

THROTTLE BODY ASSY. для Yamaha YZF-R3 - 2015 года выпуска`
-
№АртикулНазвание
-
12MS-E3586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-39802-00 O-RINGO-RING
-
391312-06016-00 BOLTBOLT
-
490450-55804-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
52MS-E3750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
61WD-E3556-00-00 ...GASKET...GASKET
-
71WD-E3761-00-00 ...INJECTOR...INJECTOR
-
85PS-14147-00-00 ......O-RING......O-RING
-
91WS-85801-00-00 ...STEPPING MOTOR...STEPPING MOTOR
-
101WS-14335-00-00 ...SPRING, PLUNGER...SPRING, PLUNGER
-
1198502-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
121WD-E3573-00-00 ...BOLT 1...BOLT 1
-
138GL-13571-00-00 ...WASHER...WASHER
-
148HG-14534-00-00 ...COLLAR...COLLAR
-
155JW-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
16895-14169-00-00 ...CAP...CAP
-
178A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
1854P-E416A-00-00 ...O-RING...O-RING
-
191WD-E4243-00-00 ...PLATE...PLATE
-
201WD-E3938-00-00 ...PIPE...PIPE
-
212MS-E4465-00-00 PIPEPIPE
-
222MS-E4466-00-00 PIPEPIPE
-
2390413-06031-00 WAY 3WAY 3
-
2490467-090A2-00 CLIPCLIP
-
251WD-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
262MS-E4469-00-00 FUNNEL, AIRFUNNEL, AIR
-
272MS-E446C-00-00 FUNNEL 2FUNNEL 2
-
281WD-E4437-00-00 DUCTDUCT
-
292MS-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
301WD-E4452-00-00 SEALSEAL
-
311WD-E4457-00-00 SEALSEAL
-
3297702-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
331WD-E4422-00-00 CAP, CLEANER CASE 2CAP, CLEANER CASE 2
-
341WD-E4462-00-00 SEALSEAL
-
3598902-05020-00 SCREW, BINDSCREW, BIND
-
361WD-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
3752B-E443E-00-00 PIPE, DRAINPIPE, DRAIN
-
3890467-110A3-00 CLIPCLIP
-
3954P-E3474-00-00 BANDBAND
-
4095822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
411WD-E3543-00-00 HOSE, AIRHOSE, AIR
-
4290467-13802-00 CLIPCLIP
-
4390467-12052-00 CLIPCLIP
-
442MS-E5373-00-00 PIPE, BREATHERPIPE, BREATHER
-
4590467-13802-00 CLIPCLIP
