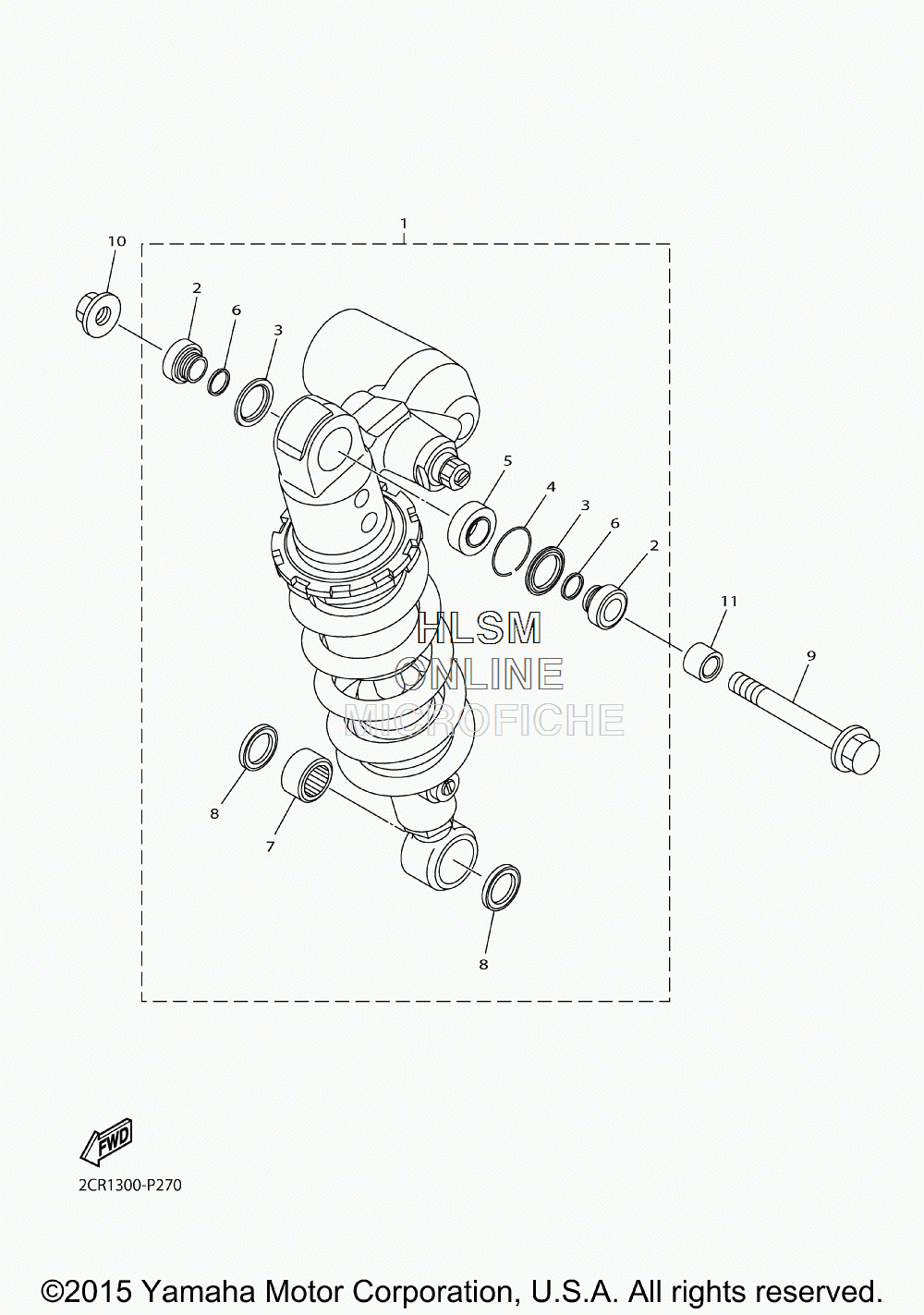

SUSPENSION - REAR SHOCK ABSORBER для Yamaha YZF-R1 - 2015 года выпуска`
-
№АртикулНазвание
-
12CR-22210-10-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
22CR-22253-00-00 ...COLLAR, DISTANCE...COLLAR, DISTANCE
-
33JE-22475-00-00 ...SEAL, DUST...SEAL, DUST
-
45DH-23183-00-00 ...CIRCLIP...CIRCLIP
-
54JX-22226-00-00 ...BUSH, SHOCK ABSORBER LOWER...BUSH, SHOCK ABSORBER LOWER
-
64EW-22474-00-00 ...SEAL, RING...SEAL, RING
-
793315-31758-00 ...BEARING...BEARING
-
893109-17071-00 ...OIL SEAL...OIL SEAL
-
990105-10609-00 BOLT WASHER BASEDBOLT WASHER BASED
-
1095602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
1190387-1013U-00 COLLARCOLLAR
