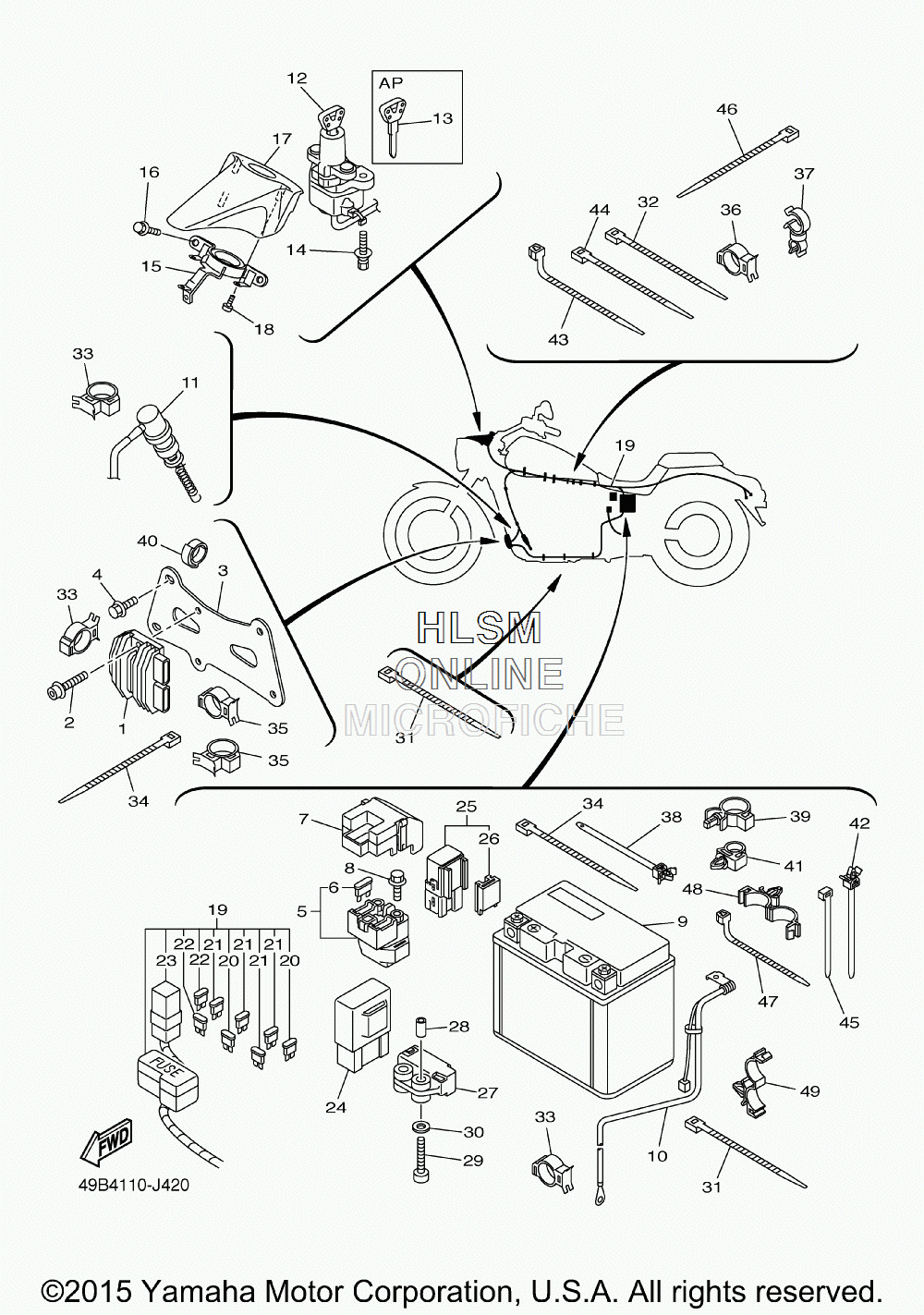

ELECTRICAL 2 для Yamaha V STAR 950 - 2015 года выпуска`
-
№АртикулНазвание
-
127D-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
290110-06263-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
35S7-2128A-00-00 BRACKET, REGULATORBRACKET, REGULATOR
-
490105-08021-00 BOLT WASHER BASEDBOLT WASHER BASED
-
55S7-81940-00-00 STARTER RELAY ASSY (RC19-089A)STARTER RELAY ASSY (RC19-089A)
-
642X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
75SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
895022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
92D1-82100-00-00 BATTERY ASSY (GS YUASA YTZ14S)BATTERY ASSY (GS YUASA YTZ14S)
-
105S7-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
115S7-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
123D8-82501-01-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
134BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
1490109-08195-00 BOLTBOLT
-
155S7-2334G-00-00 BRACKET 1BRACKET 1
-
1690105-06063-00 BOLT, FLANGEBOLT, FLANGE
-
175S7-82568-00-00 COVER, MAIN SWITCHCOVER, MAIN SWITCH
-
1897702-40016-00 SCREW, TAPPINGSCREW, TAPPING
-
195S7-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
205JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
215JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
225JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
235PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
245VK-81950-30-00 RELAY ASSY (5VK-30)RELAY ASSY (5VK-30)
-
251TP-81950-00-00 RELAY ASSY (1TP-00)RELAY ASSY (1TP-00)
-
265EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
275VU-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
2890445-057G5-00 HOSE (L10)HOSE (L10)
-
2990110-04003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3090201-04027-00 WASHER, PLATEWASHER, PLATE
-
311UA-82591-00-00 BANDBAND
-
3290464-32060-00 CLAMPCLAMP
-
3390464-10190-00 CLAMPCLAMP
-
343MA-82591-00-00 BANDBAND
-
3590464-20191-00 CLAMPCLAMP
-
3690464-25217-00 CLAMPCLAMP
-
3790464-20004-00 CLAMPCLAMP
-
3890464-12036-00 CLAMPCLAMP
-
3990464-16012-00 CLAMPCLAMP
-
4090464-16003-00 CLAMPCLAMP
-
4190464-10008-00 CLAMPCLAMP
-
4290464-12089-00 CLAMPCLAMP
-
4390464-15195-00 CLAMPCLAMP
-
4490460-15126-00 CLAMP, HOSECLAMP, HOSE
-
4590465-10098-00 CLAMPCLAMP
-
4690465-13M39-00 CLAMPCLAMP
-
4790464-13073-00 CLAMPCLAMP
-
4890464-18007-00 CLAMPCLAMP
-
4990464-16012-00 CLAMPCLAMP
