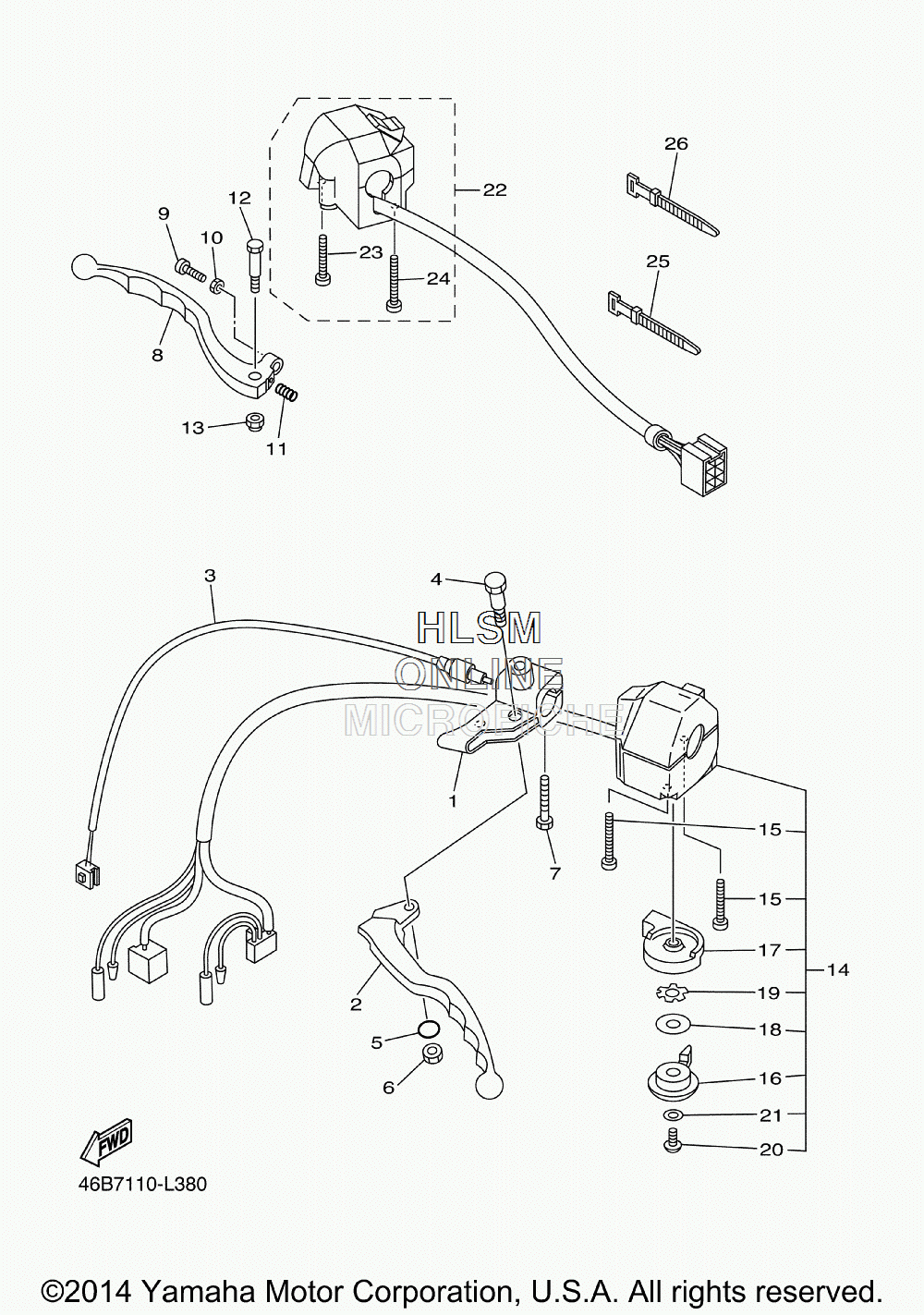

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha V STAR 250 - 2015 года выпуска`
-
№АртикулНазвание
-
111H-82911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
22GV-83912-00-00 LEVER LLEVER L
-
35MP-82917-00-00 SWITCHSWITCH
-
490109-06244-00 BOLTBOLT
-
593210-11368-00 O-RINGO-RING
-
695602-06100-00 NUT, UNUT, U
-
75LP-83925-10-00 SCREW, LEVER FITTINGSCREW, LEVER FITTING
-
82W1-83922-00-00 LEVER RLEVER R
-
990154-06028-00 SCREW, BINDINGSCREW, BINDING
-
1090170-06020-00 NUTNUT
-
1190501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1290109-06255-00 BOLTBOLT
-
1395602-06100-00 NUT, UNUT, U
-
1446B-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1598507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1610M-83941-00-00 ...LEVER, STARTER...LEVER, STARTER
-
174VH-83942-00-00 ...COVER, STARTER...COVER, STARTER
-
181AA-8397X-00-00 ...SPACER...SPACER
-
1990209-10131-00 ...WASHER SPEC'L SHAPE...WASHER SPEC'L SHAPE
-
2098507-06008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2192902-06200-00 ...WASHER...WASHER
-
2246B-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
2398507-05040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2498507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
25437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
263TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
