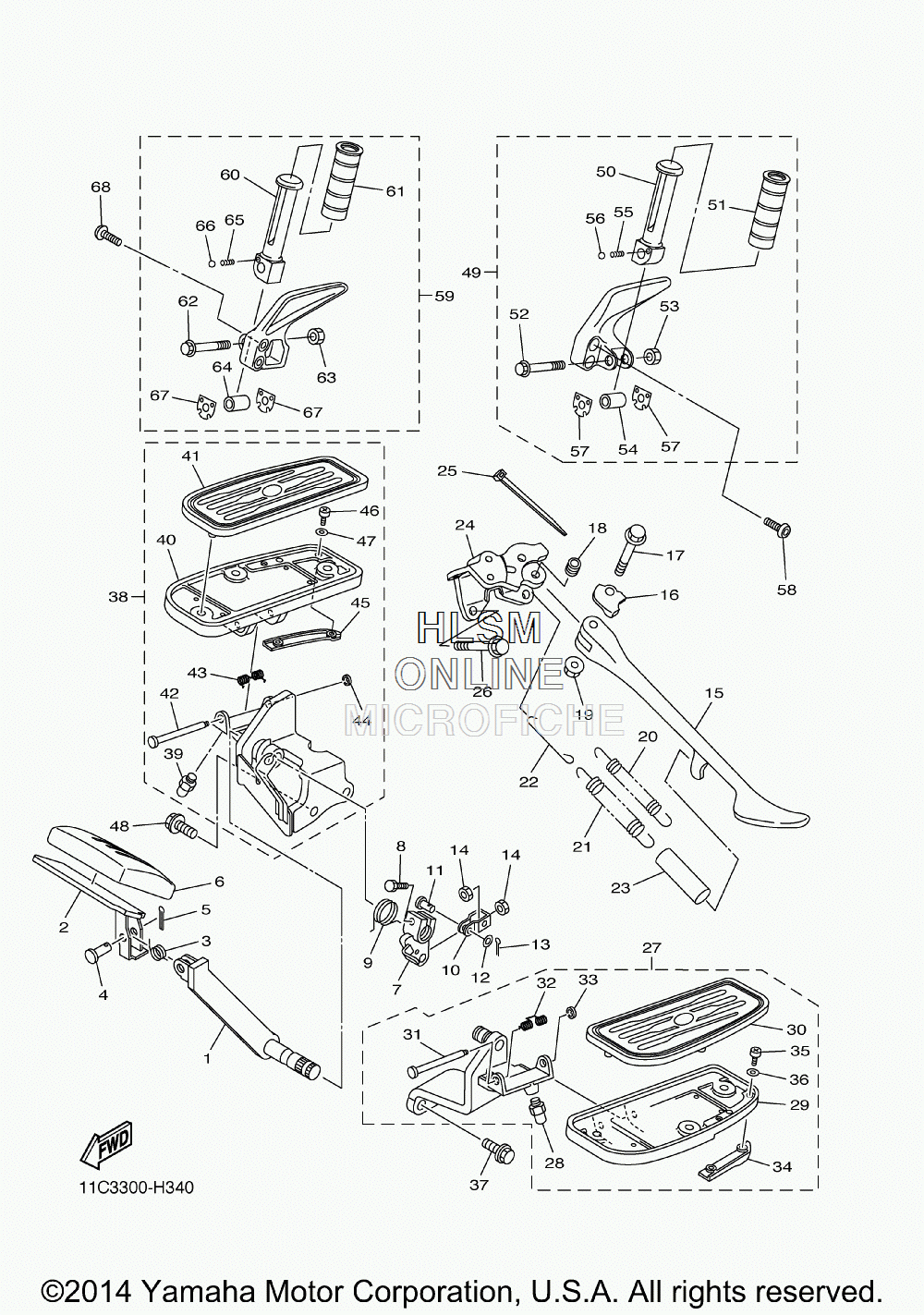

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha V STAR 1300 - 2015 года выпуска`
-
№АртикулНазвание
-
15KS-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
24NK-27242-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
390508-18023-00 SPRING, TORSIONSPRING, TORSION
-
491702-06022-00 PIN, CLEVISPIN, CLEVIS
-
591402-20012-00 PIN, COTTERPIN, COTTER
-
61D7-27285-00-00 CAPCAP
-
75EL-27262-01-00 LEVERLEVER
-
897004-06020-00 BOLTBOLT
-
93D8-27216-00-00 SPRING, RETURNSPRING, RETURN
-
104BP-27222-02-00 JOINTJOINT
-
1190240-08124-00 PIN, CLEVISPIN, CLEVIS
-
1290201-08083-00 WASHER, PLATEWASHER, PLATE
-
1391401-20012-00 PIN, COTTERPIN, COTTER
-
1495307-08700-00 NUTNUT
-
154KU-27311-13-00 STAND, SIDESTAND, SIDE
-
163D8-27322-00-00 WASHERWASHER
-
1790105-10012-00 BOLT WASHER BASEDBOLT WASHER BASED
-
1890387-1003G-00 COLLARCOLLAR
-
1995602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
2090506-23015-00 SPRING, TENSIONSPRING, TENSION
-
2190506-29006-00 SPRING, TENSIONSPRING, TENSION
-
223D8-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
2390445-16641-00 HOSE (L60)HOSE (L60)
-
243D8-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
251UA-82591-00-00 BANDBAND
-
2690105-10157-00 BOLT, FLANGEBOLT, FLANGE
-
273D8-27410-00-00 FRONT FOOTREST ASSY (LEFT) (EXCEPT CALIF)FRONT FOOTREST ASSY (LEFT) (EXCEPT CALIF)
-
273D8-27410-10-00 FRONT FOOTREST ASSY (LEFT) (CALIF ONLY)FRONT FOOTREST ASSY (LEFT) (CALIF ONLY)
-
285PX-27435-09-00 ...BOLT...BOLT
-
294NK-27451-10-00 ...FOOTREST...FOOTREST
-
304XY-27413-01-00 ...COVER, FOOTREST...COVER, FOOTREST
-
313D8-27427-00-00 ...SHAFT...SHAFT
-
321D7-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
3399002-06600-00 ...CLIP...CLIP
-
344WM-27496-00-00 ...MOLE 1...MOLE 1
-
3590157-05026-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
3692902-05200-00 ...WASHER...WASHER
-
3790105-10236-00 BOLT, FLANGEBOLT, FLANGE
-
383D8-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
395PX-27435-09-00 ...BOLT...BOLT
-
404NK-27461-10-00 ...FOOTREST...FOOTREST
-
414XY-27423-01-00 ...COVER, FOOTREST...COVER, FOOTREST
-
423D8-27427-00-00 ...SHAFT...SHAFT
-
431D7-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
4499002-06600-00 ...CLIP...CLIP
-
454WM-27497-00-00 ...MOLE 2...MOLE 2
-
4690157-05026-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
4792902-05200-00 ...WASHER...WASHER
-
4890105-10236-00 BOLT, FLANGEBOLT, FLANGE
-
493D8-27430-10-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
501D7-27431-00-00 ...FOOTREST, REAR 1...FOOTREST, REAR 1
-
514WM-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
5290109-06016-00 ...BOLT...BOLT
-
5395604-06200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
5490387-06554-00 ...COLLAR...COLLAR
-
5590501-15001-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
5693501-04011-00 ...BALL 1/4...BALL 1/4
-
571D7-27437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
5890111-08041-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
593D8-27440-10-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
601D7-27441-00-00 ...FOOTREST, REAR 2...FOOTREST, REAR 2
-
614WM-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
6290109-06016-00 ...BOLT...BOLT
-
6395604-06200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
6490387-06554-00 ...COLLAR...COLLAR
-
6590501-15001-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
6693501-04011-00 ...BALL 1/4...BALL 1/4
-
671D7-27437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
6890111-08041-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
