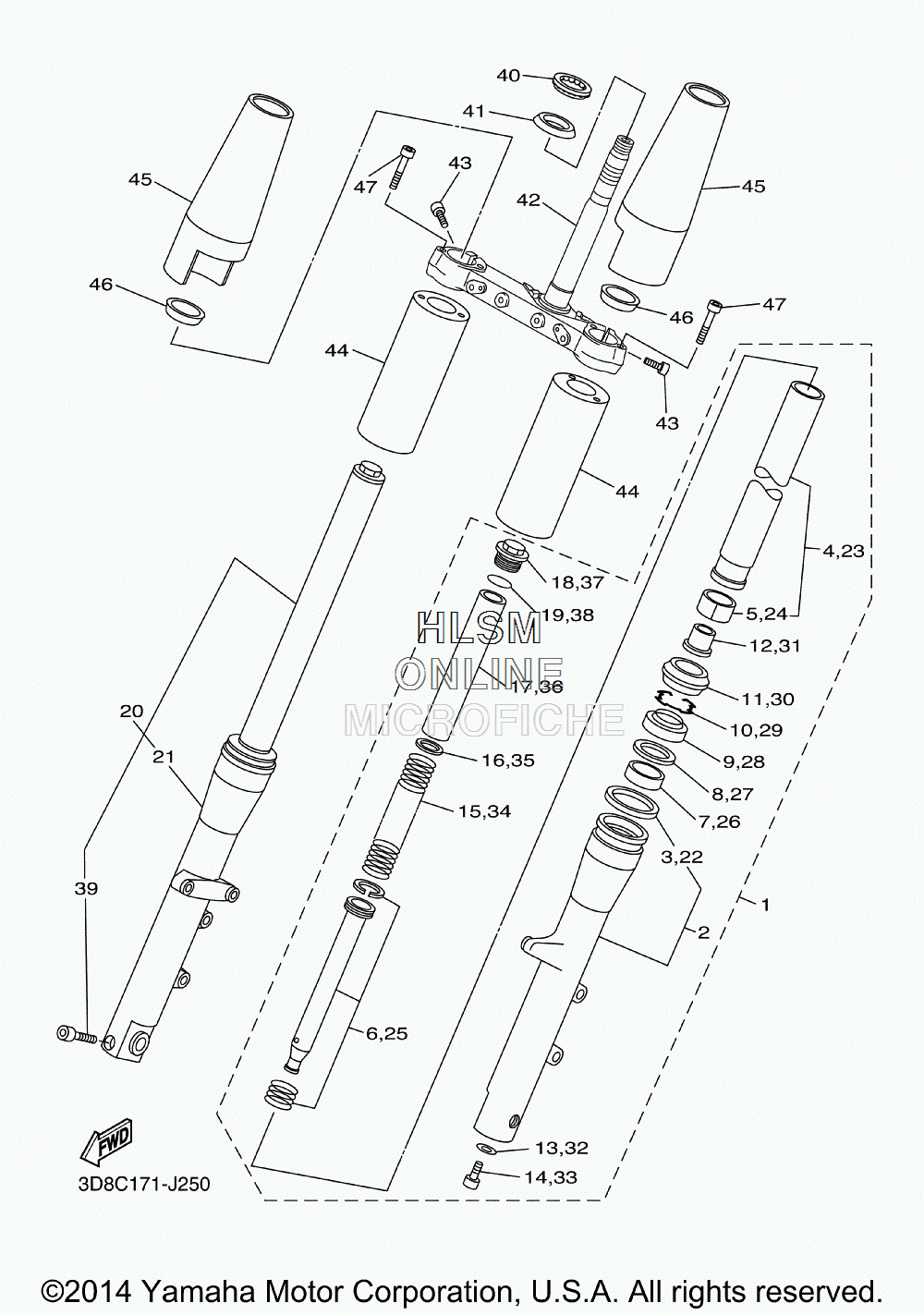

SUSPENSION - FRONT FORK для Yamaha V STAR 1300 DELUXE - 2015 года выпуска`
-
№АртикулНазвание
-
13D8-23102-40-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
23D8-23126-20-00 ...TUBE, OUTER (L.H)...TUBE, OUTER (L.H)
-
35BN-23193-00-00 ......GUIDE, BOOT......GUIDE, BOOT
-
43D8-23110-00-00 ...INNER TUBE COMP.1...INNER TUBE COMP.1
-
55BN-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
63D8-23170-10-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
74FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
836Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
94EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
1026H-23156-00-00 ...RING, SNAP...RING, SNAP
-
114EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
124YR-23173-00-00 ...SPINDLE, TAPER (KYB)...SPINDLE, TAPER (KYB)
-
13509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
14278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
153D8-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
164DW-23149-40-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
175EL-23118-00-00 ...SPACER...SPACER
-
181D0-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1943F-23188-10-00 ...O-RING...O-RING
-
203D8-23103-40-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
213D8-23136-20-00 ...TUBE, OUTER...TUBE, OUTER
-
225BN-23193-00-00 ......GUIDE, BOOT......GUIDE, BOOT
-
233D8-23110-00-00 ...INNER TUBE COMP.1...INNER TUBE COMP.1
-
245BN-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
253D8-23170-10-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
264FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
2736Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
284EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
2926H-23156-00-00 ...RING, SNAP...RING, SNAP
-
304EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
314YR-23173-00-00 ...SPINDLE, TAPER (KYB)...SPINDLE, TAPER (KYB)
-
32509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
33278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
343D8-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
354DW-23149-40-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
365EL-23118-00-00 ...SPACER...SPACER
-
371D0-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
3843F-23188-10-00 ...O-RING...O-RING
-
3991314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
4093399-99932-00 BEARINGBEARING
-
413FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
425S7-23340-01-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4391314-10020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
443D8-23123-60-00 COVER, UNDER 1COVER, UNDER 1
-
453D8-23121-60-00 COVER, UPPER 1COVER, UPPER 1
-
463D8-23163-00-00 GASKETGASKET
-
473D8-23394-20-00 BOLT, SPECIALBOLT, SPECIAL
