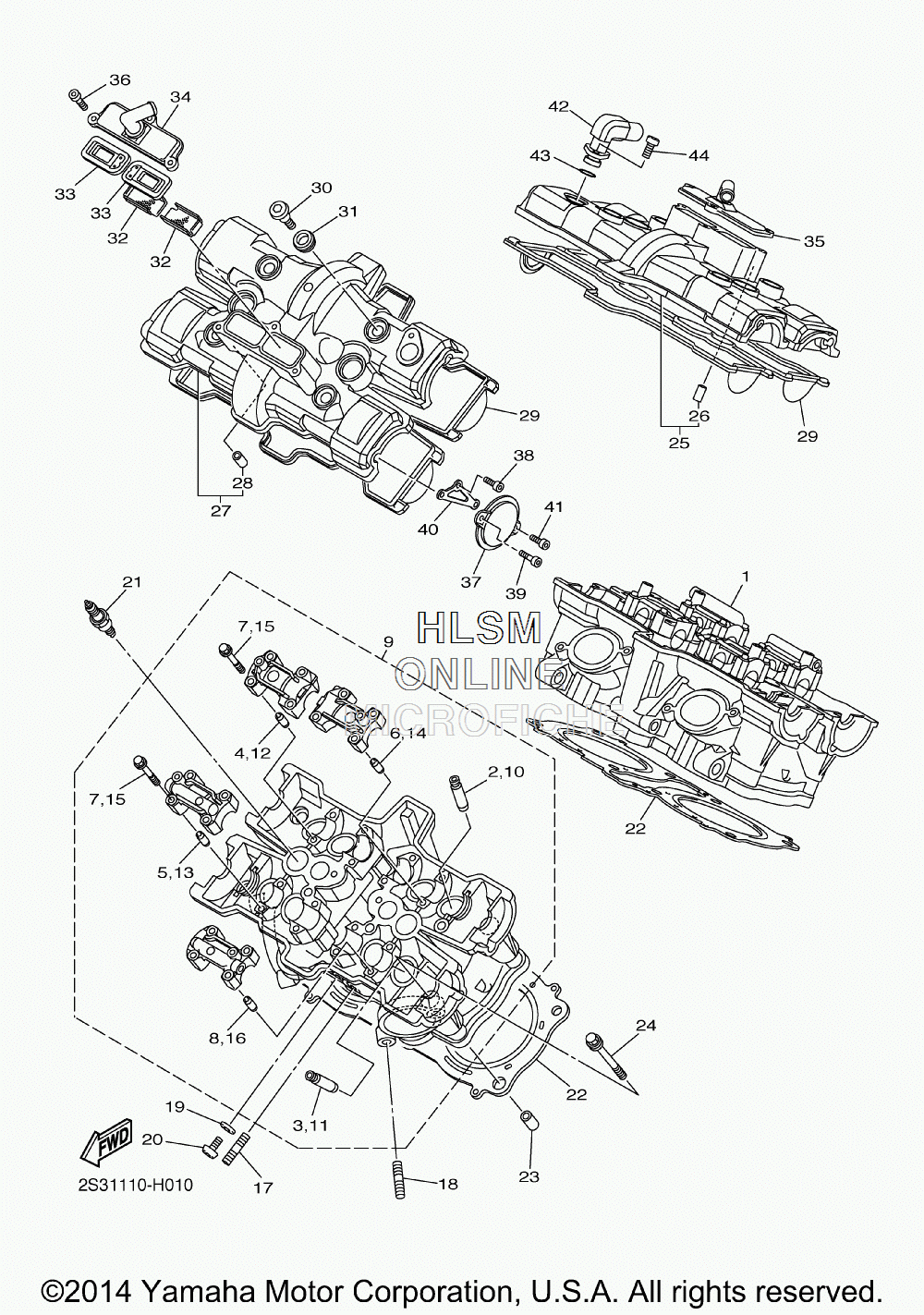

CYLINDER HEAD для Yamaha V MAX - 2015 года выпуска
‹-+›
-
№АртикулНазвание
-
12S3-11102-09-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24C8-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
32S3-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
491808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
591808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
691808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
790105-06027-00 ...BOLT WASHER BASED...BOLT WASHER BASED
-
891808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
92S3-11103-09-00 CYLINDER HEAD ASSY 2CYLINDER HEAD ASSY 2
-
104C8-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
112S3-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
1291808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
1391808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
1491808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
1590105-06027-00 ...BOLT WASHER BASED...BOLT WASHER BASED
-
1691808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
1795612-12640-00 BOLT, STUDBOLT, STUD
-
1895612-08625-00 BOLT, STUDBOLT, STUD
-
1990430-10188-00 GASKETGASKET
-
2092014-10016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2194701-00407-00 PLUG, SPARK (ND IU27D) (OPT)PLUG, SPARK (ND IU27D) (OPT)
-
2194701-00408-00 PLUG, SPARK (NGK IR CR9EIA 9) (OPT)PLUG, SPARK (NGK IR CR9EIA 9) (OPT)
-
222S3-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
2399530-14016-00 PIN, DOWELPIN, DOWEL
-
2490119-10034-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
252S3-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
2691810-20001-00 ...PIN, DOWEL...PIN, DOWEL
-
272S3-11192-00-00 COVER, CYLINDER HEAD 2COVER, CYLINDER HEAD 2
-
2891810-20001-00 ...PIN, DOWEL...PIN, DOWEL
-
292S3-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
3090109-066F0-00 BOLTBOLT
-
315VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
325PS-1482K-00-00 PLATEPLATE
-
335PS-14890-00-00 REED VALVE ASSYREED VALVE ASSY
-
342S3-14899-00-00 CAP, CASECAP, CASE
-
352S3-14889-00-00 CAP, CASECAP, CASE
-
3690110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
372S3-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
3890110-05059-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3990110-05060-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
402S3-1112F-00-00 PLATE 2PLATE 2
-
4190110-05059-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
422S3-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
4393210-15566-00 O-RINGO-RING
-
4490110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
