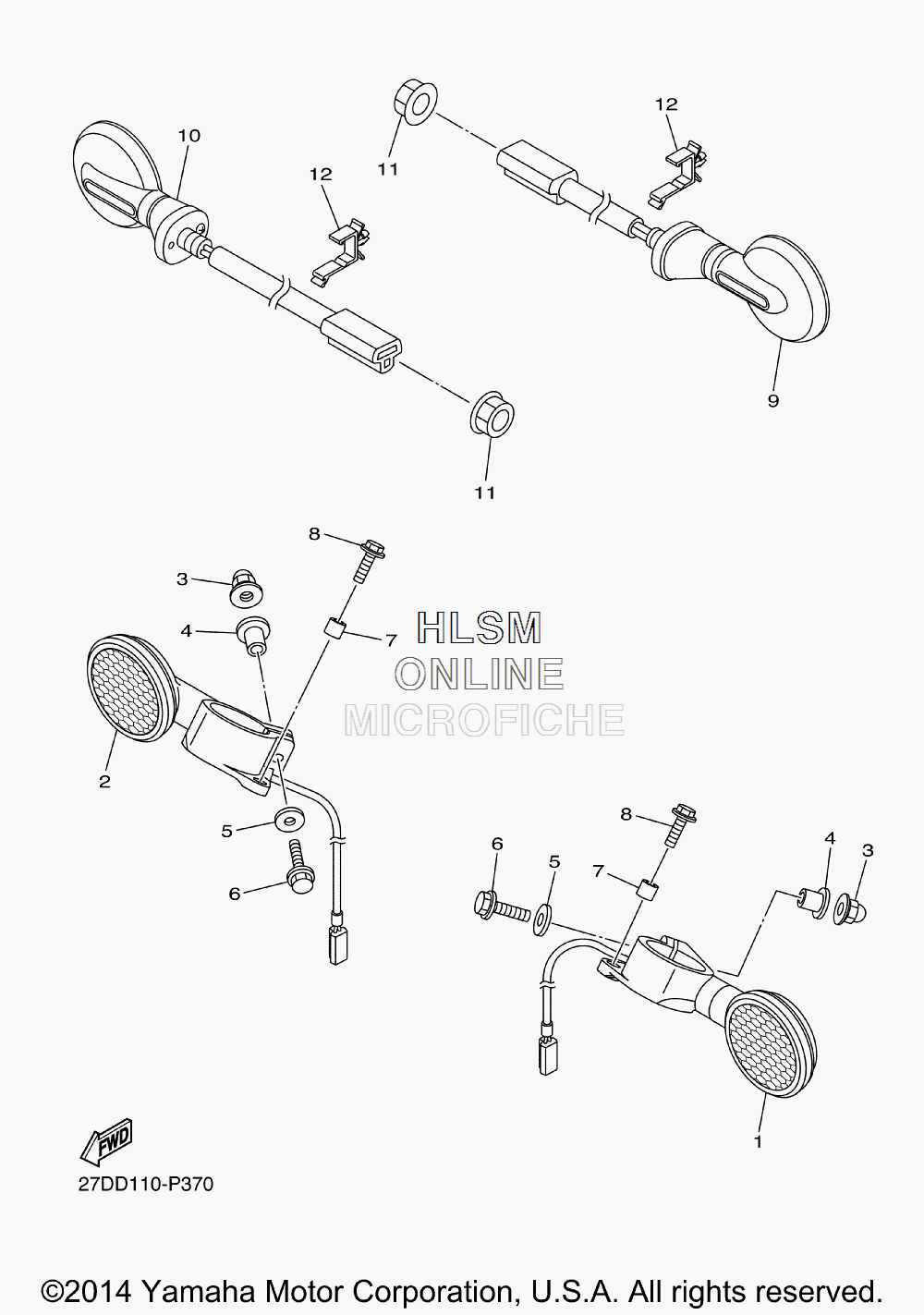

FLASHER LIGHT для Yamaha STRYKER (DARK RED) - 2015 года выпуска
-
№АртикулНазвание
-
127D-83310-30-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
227D-83320-30-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
390176-06055-00 NUT, CROWNNUT, CROWN
-
490387-06076-00 COLLARCOLLAR
-
590201-06045-00 WASHER, PLATEWASHER, PLATE
-
695807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
790387-08085-00 COLLARCOLLAR
-
895027-08020-00 BOLT, FLANGEBOLT, FLANGE
-
91US-83330-10-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
101US-83340-10-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
1195702-12500-00 NUT, FLANGENUT, FLANGE
-
1290464-16021-00 CLAMPCLAMP
