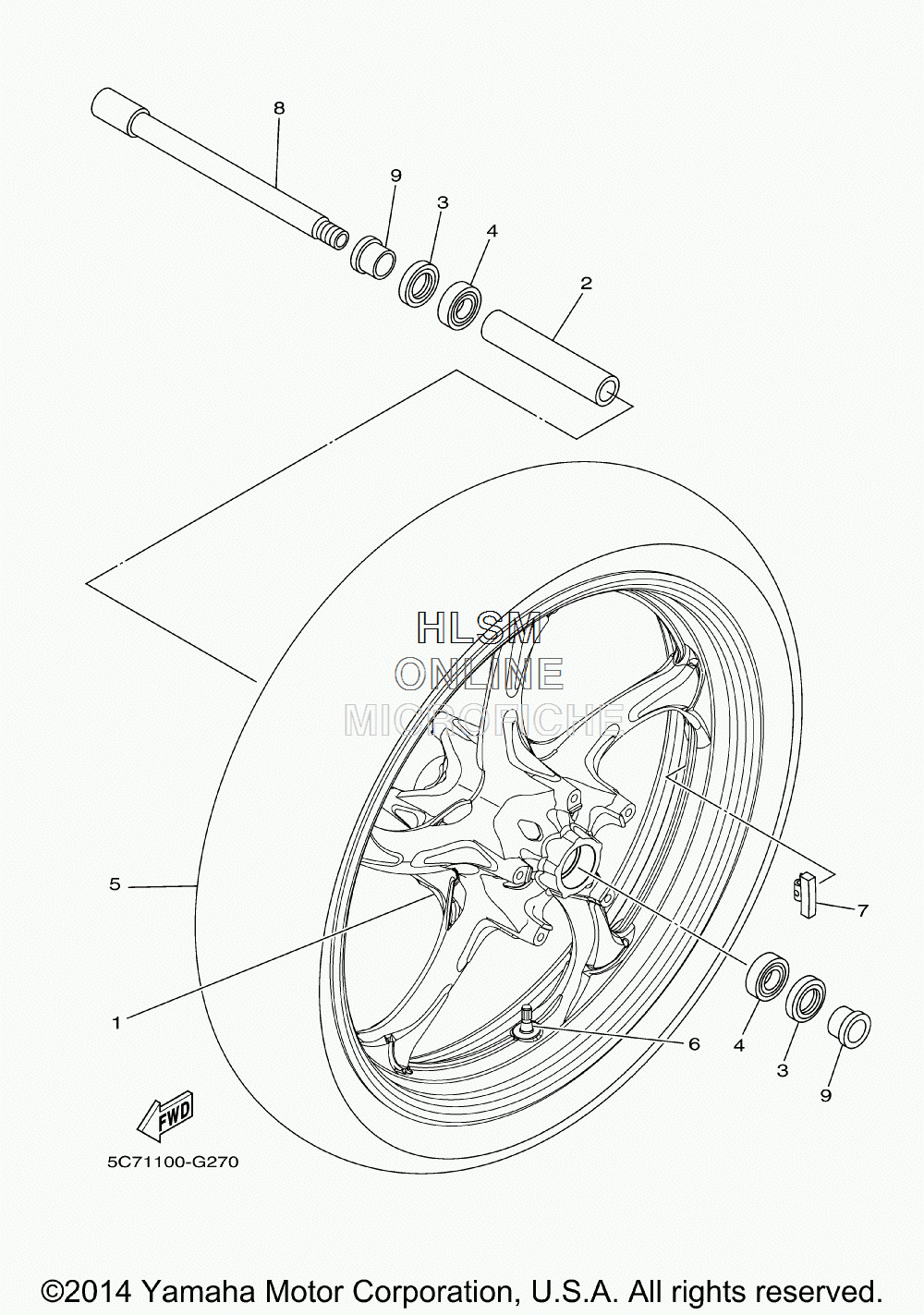

WHEEL - FRONT для Yamaha RAIDER - 2015 года выпуска`
-
№АртикулНазвание
-
15C7-25168-11-0X CAST WHEEL, FRONT (YB/HTR FOR DNMN)CAST WHEEL, FRONT (YB/HTR FOR DNMN)
-
290387-2208J-00 COLLARCOLLAR
-
393106-28043-00 OIL SEALOIL SEAL
-
493306-00420-00 BEARINGBEARING
-
693900-00030-00 VALVE, RIM (TR412) TAIHEIYOVALVE, RIM (TR412) TAIHEIYO
-
75MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
75MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
75MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
81D7-25181-10-00 AXLE, WHEELAXLE, WHEEL
-
990387-22016-00 COLLARCOLLAR
