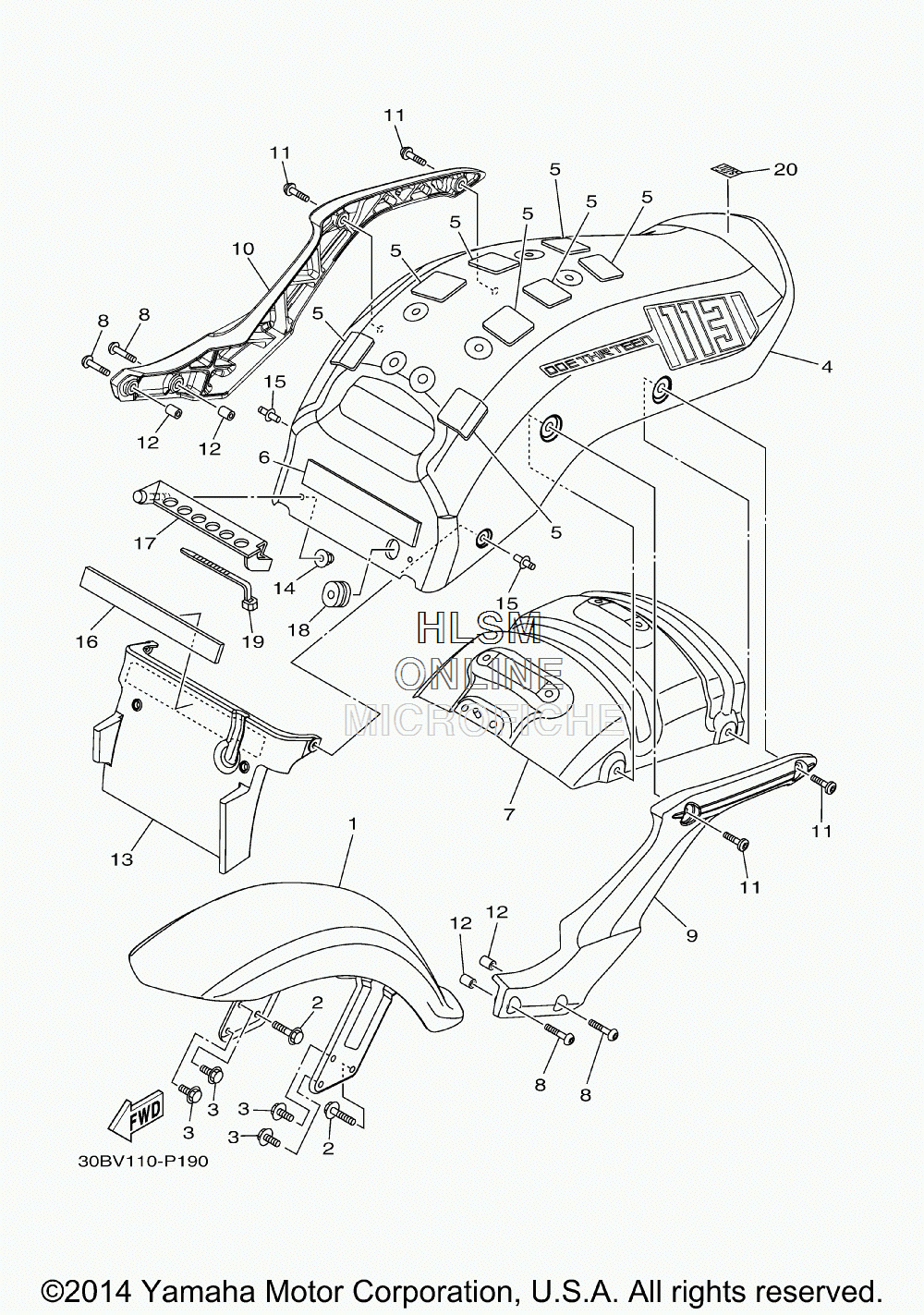

FENDER - FRONT / REAR для Yamaha RAIDER BULLET COWL - 2015 года выпуска`
-
№АртикулНазвание
-
15C7-YK215-02-P1 FRONT FENDER COMP. (FOR SMX)FRONT FENDER COMP. (FOR SMX)
-
290119-08111-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-08110-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
45C7-Y2161-R0-P1 REAR FENDER COMP. (FOR SMX)REAR FENDER COMP. (FOR SMX)
-
55PX-21669-01-00 SEALSEAL
-
65C7-21649-00-00 DAMPERDAMPER
-
75C7-21643-00-00 STAY, REARSTAY, REAR
-
890110-08071-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
95C7-21613-20-00 STAY, FENDER 1STAY, FENDER 1
-
105C7-21614-20-00 STAY, FENDER 2STAY, FENDER 2
-
1192014-10050-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1299530-14016-00 PIN, DOWELPIN, DOWEL
-
135C7-21629-00-00 GUARD, MUDGUARD, MUD
-
1495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590269-07077-00 RIVETRIVET
-
165C7-21639-00-00 DAMPER 2DAMPER 2
-
175C7-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
1890480-01015-00 GROMMETGROMMET
-
1990464-13077-00 CLAMPCLAMP
-
2046B-2163G-00-00 EMBLEM 1EMBLEM 1
