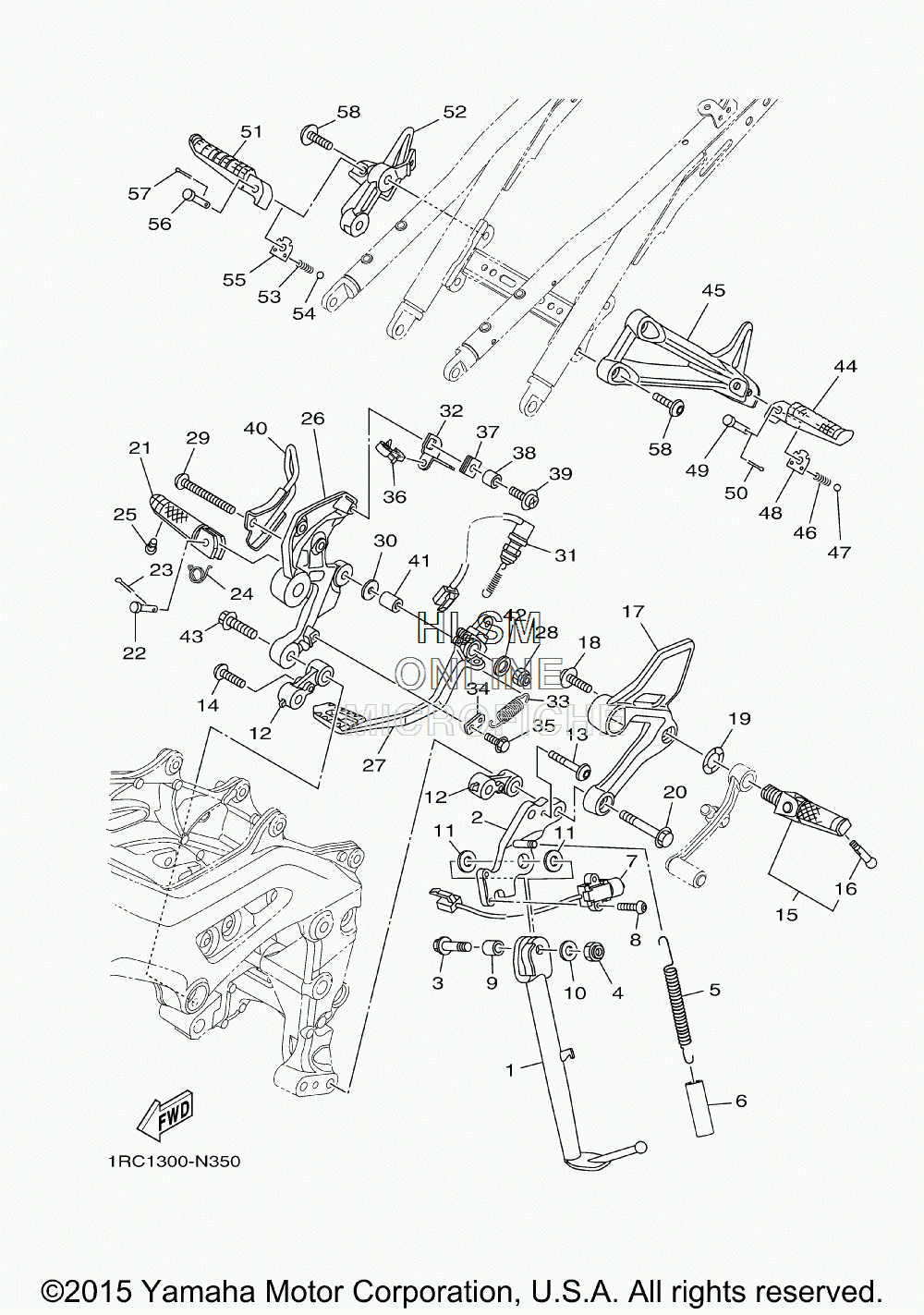

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha FZ-09 - 2015 года выпуска`
-
№АртикулНазвание
-
11RC-27311-00-00 STAND, SIDESTAND, SIDE
-
21RC-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
390105-10188-00 BOLT WASHER BASEDBOLT WASHER BASED
-
495612-10100-00 NUT, UNUT, U
-
590506-20032-00 SPRING, TENSIONSPRING, TENSION
-
690445-197J2-00 HOSE (L60)HOSE (L60)
-
71RC-82566-50-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
890111-05036-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
990387-10050-00 COLLARCOLLAR
-
1090201-10035-00 WASHER, PLATEWASHER, PLATE
-
1190201-17018-00 WASHER, PLATEWASHER, PLATE
-
121RC-274A3-00-00 BRACKET, ADAPTER 1BRACKET, ADAPTER 1
-
1392012-06040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1492012-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
151RC-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
1690109-08231-00 ...BOLT...BOLT
-
171RC-27442-00-00 BRACKET 2BRACKET 2
-
1890111-10039-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1990206-17084-00 WASHER, WAVEWASHER, WAVE
-
2090105-10435-00 BOLT, FLANGEBOLT, FLANGE
-
213XV-27461-02-00 FOOTRESTFOOTREST
-
2291701-08040-00 PINPIN
-
2391402-25015-00 PIN, COTTERPIN, COTTER
-
2490508-20572-00 SPRING, TORSIONSPRING, TORSION
-
2590109-08231-00 BOLTBOLT
-
261RC-27443-00-00 BRACKET 3BRACKET 3
-
271RC-27200-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
2890185-08089-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2990111-08028-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3090201-08103-00 WASHER, PLATEWASHER, PLATE
-
311RC-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
321RC-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3390506-23008-00 SPRING, TENSIONSPRING, TENSION
-
341RC-27432-00-00 BRACKET 1BRACKET 1
-
3595802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3690464-15157-00 CLAMPCLAMP
-
3790480-12607-00 GROMMETGROMMET
-
3890387-06M16-00 COLLARCOLLAR
-
3990159-06150-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
401RC-27267-00-00 GUIDE, WIREGUIDE, WIRE
-
4190387-08102-00 COLLARCOLLAR
-
4290201-08048-00 WASHER, PLATEWASHER, PLATE
-
4390105-10246-00 BOLT, FLANGEBOLT, FLANGE
-
443VR-27431-01-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
451RC-2741L-01-00 BRACKET 4BRACKET 4
-
4690501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4793501-04011-00 BALL 1/4BALL 1/4
-
485VX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
4991702-08040-00 PIN, CLEVISPIN, CLEVIS
-
5091401-25015-00 PIN, COTTERPIN, COTTER
-
513VR-27441-01-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
521RC-2742L-01-00 BRACKET 5BRACKET 5
-
5390501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5493501-04011-00 BALL 1/4BALL 1/4
-
555VX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
5691702-08040-00 PIN, CLEVISPIN, CLEVIS
-
5791401-25015-00 PIN, COTTERPIN, COTTER
-
5890149-08230-00 SCREWSCREW
