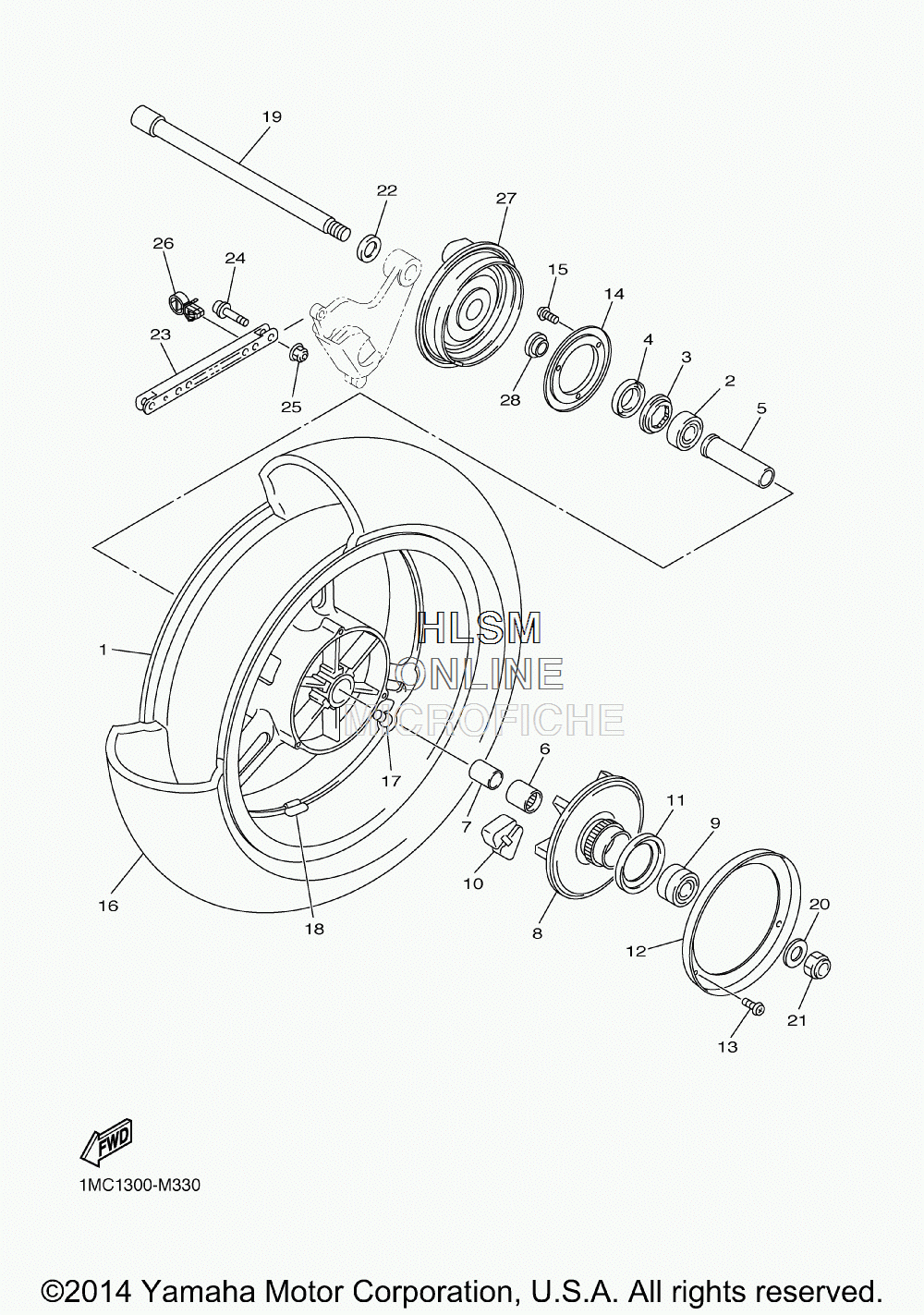

WHEEL - REAR для Yamaha FJR1300A - 2015 года выпуска`
-
№АртикулНазвание
-
13P6-25338-01-98 CAST WHEEL, REAR (LGB)CAST WHEEL, REAR (LGB)
-
293306-30446-00 BEARINGBEARING
-
31MC-2538E-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
493106-40013-00 OIL SEALOIL SEAL
-
53P6-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
693317-42592-00 BEARINGBEARING
-
75JW-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
85JW-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
993306-20480-00 BEARINGBEARING
-
105JW-25364-00-00 DAMPERDAMPER
-
115JW-25319-00-00 SEAL, HUB DUSTSEAL, HUB DUST
-
125JW-25327-00-00 COVER, PLATECOVER, PLATE
-
1398502-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
143P6-2517G-00-00 ROTOR, SENSORROTOR, SENSOR
-
1590149-05029-00 SCREWSCREW
-
1694118-17076-00 TIRE (180/55ZR17M/C 73W) BRIDGESTONETIRE (180/55ZR17M/C 73W) BRIDGESTONE
-
1793900-00030-00 VALVE, RIM (TR412) TAIHEIYOVALVE, RIM (TR412) TAIHEIYO
-
185MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
185MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
185MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
195JW-25381-10-00 AXLE, WHEELAXLE, WHEEL
-
2090201-181U5-00 WASHER, PLATEWASHER, PLATE
-
2190185-18009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2292902-20600-00 WASHERWASHER
-
235JW-25371-10-00 BAR, TENSIONBAR, TENSION
-
2490110-08106-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2595602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2690464-23239-00 CLAMPCLAMP
-
271MC-2537A-00-00 HOUSING, SENSOR REARHOUSING, SENSOR REAR
-
281MC-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
