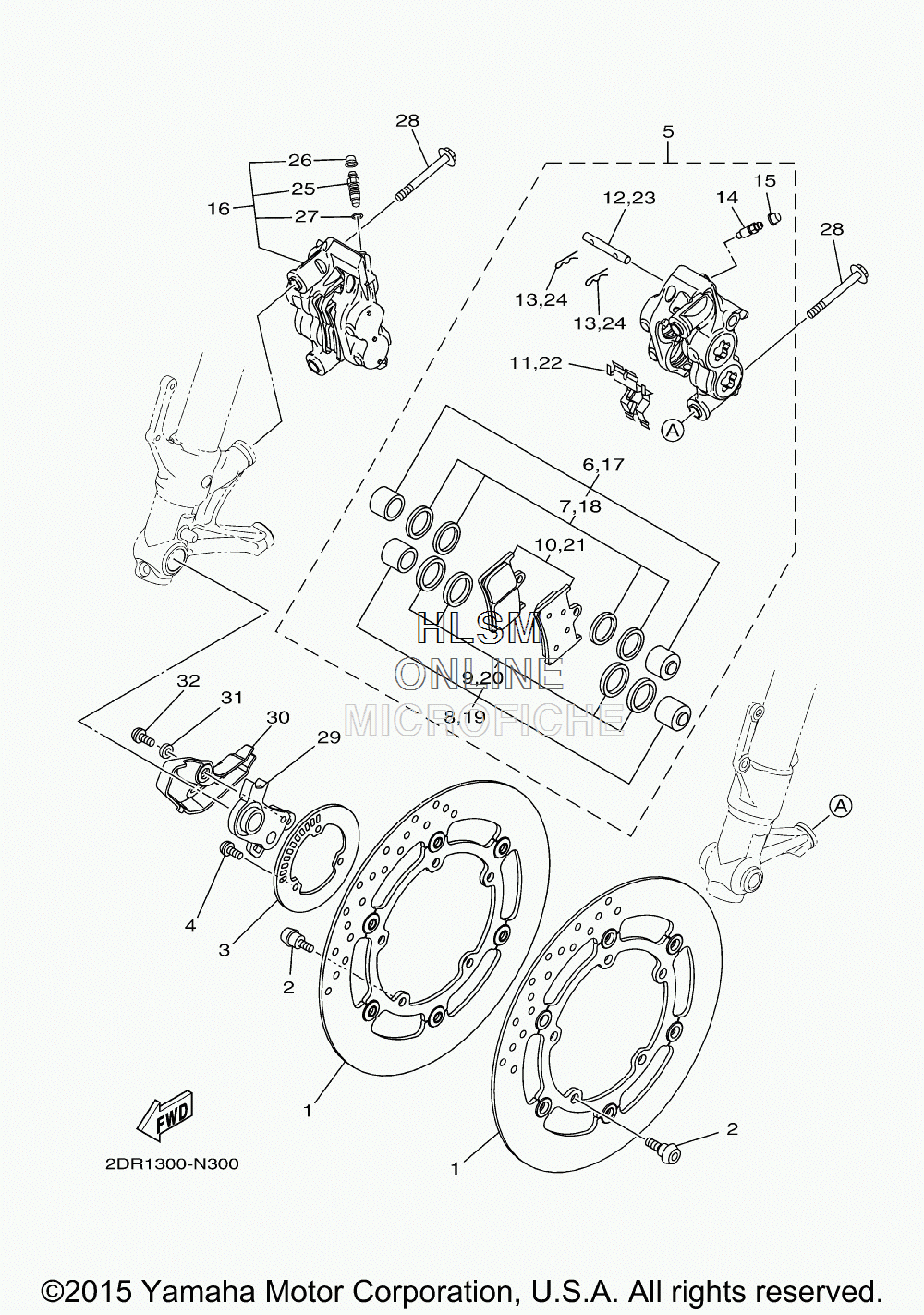

BRAKE - FRONT CALIPER для Yamaha FJ-09 - 2015 года выпуска`
-
№АртикулНазвание
-
11RC-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-064G6-00 BOLTBOLT
-
32DR-2517G-00-00 ROTOR, SENSORROTOR, SENSOR
-
490149-05029-00 SCREWSCREW
-
51RC-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
64SV-25802-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
73GM-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
84SV-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
93MA-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
105SL-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
1113S-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
124SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
133GM-25925-00-00 ...CLIP...CLIP
-
141J3-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
15306-25825-01-00 ...CAP...CAP
-
162DR-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
174SV-25802-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
183GM-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
194SV-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
203MA-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
215SL-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
2213S-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
234SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
243GM-25925-00-00 ...CLIP...CLIP
-
255VS-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
26306-25825-01-00 ...CAP...CAP
-
275VS-25975-00-00 ...RUBBER, BUSHING...RUBBER, BUSHING
-
2890105-10440-00 BOLT, FLANGEBOLT, FLANGE
-
292DR-2517A-00-00 HOUSING, SENSOR FRONTHOUSING, SENSOR FRONT
-
302DR-27491-00-00 PROTECTORPROTECTOR
-
3190387-06372-00 COLLARCOLLAR
-
3290111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
