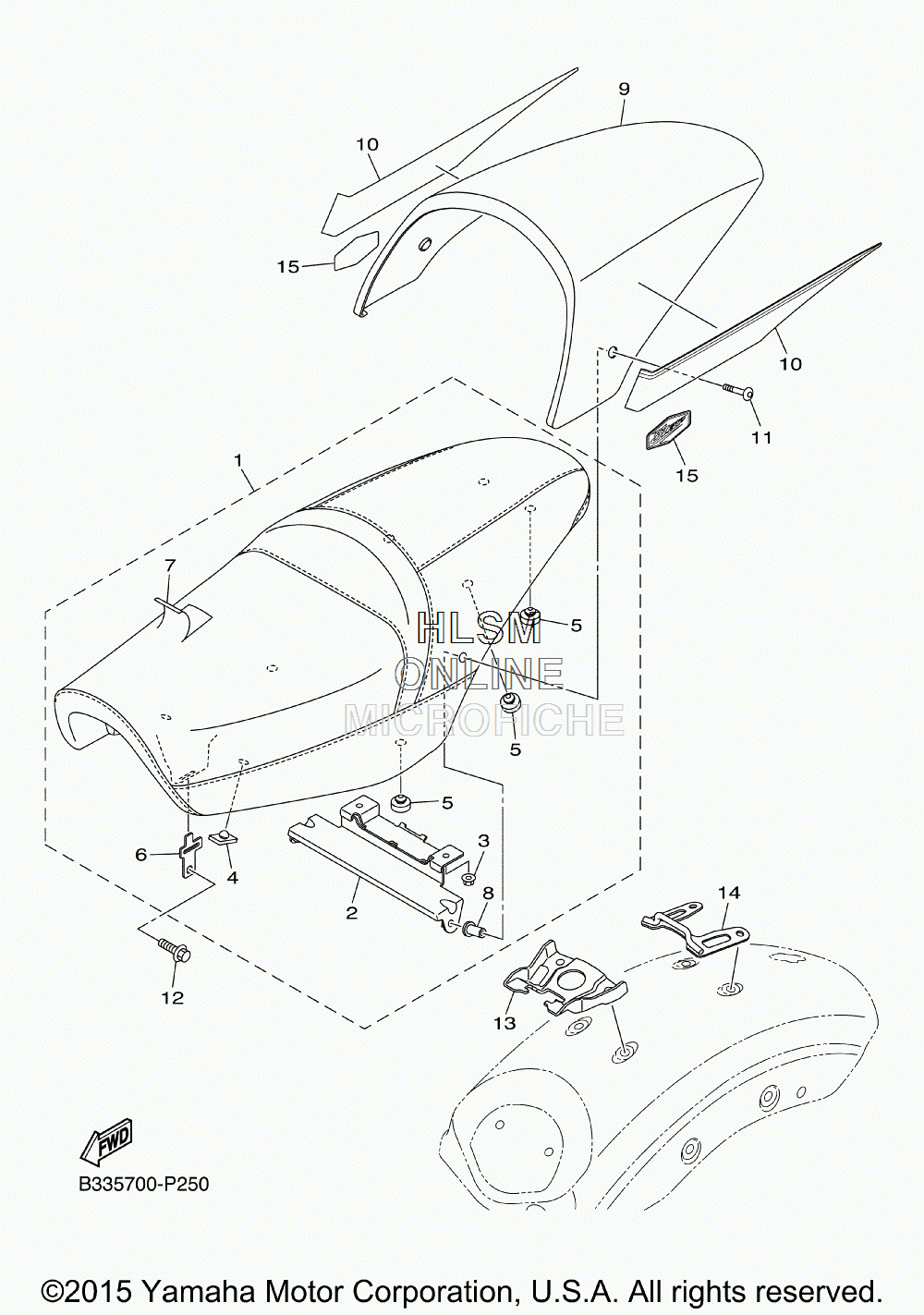

SEAT для Yamaha BOLT C SPEC - 2015 года выпуска`
-
№АртикулНазвание
-
1B33-24730-00-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
2B33-2475J-00-00 ...BRACKET, SEAT LEVER 2...BRACKET, SEAT LEVER 2
-
395602-06200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4509-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
522W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
61TP-24718-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
7B33-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
82PN-2471N-00-00 ...COLLAR 1...COLLAR 1
-
9B33-24731-00-P1 COVER, SEAT (FOR S3)COVER, SEAT (FOR S3)
-
9B33-24731-00-P0 COVER, SEAT (FOR DNGM3)COVER, SEAT (FOR DNGM3)
-
10B33-2477U-10-00 GRAPHIC SET 1 (FOR S3)GRAPHIC SET 1 (FOR S3)
-
10B33-2477U-00-00 GRAPHIC SET 1 (FOR DNGM3)GRAPHIC SET 1 (FOR DNGM3)
-
112PN-24717-00-00 BOLT, SEAT FITTINGBOLT, SEAT FITTING
-
1295022-08014-00 BOLT, FLANGEBOLT, FLANGE
-
13B33-2475H-00-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
14B33-2475R-00-00 BRACKET 6BRACKET 6
-
15B33-2163G-00-00 EMBLEM 1 (FOR S3)EMBLEM 1 (FOR S3)
-
15B33-2163G-10-00 EMBLEM 1 (FOR DNGM3)EMBLEM 1 (FOR DNGM3)
