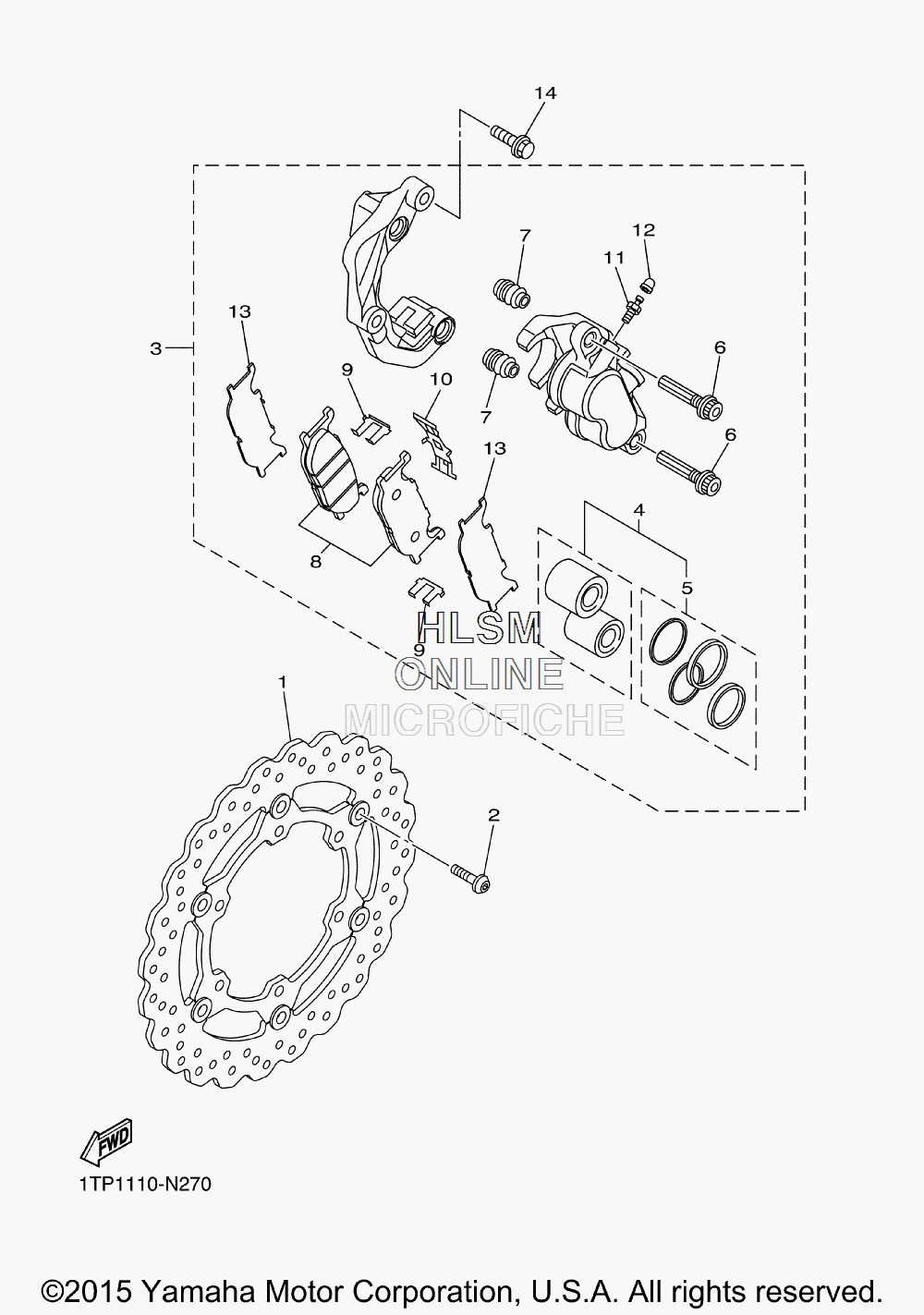

BRAKE - FRONT CALIPER для Yamaha BOLT C SPEC - 2015 года выпуска`
-
№АртикулНазвание
-
11TP-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-083G4-00 BOLTBOLT
-
327D-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
43YX-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53JB-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
65JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
85S7-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
94BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
103YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
1147X-25824-01-00 ...SCREW, BLEED...SCREW, BLEED
-
121D7-25825-00-00 ...CAP...CAP
-
134DN-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
1490105-10638-00 BOLT WASHER BASEDBOLT WASHER BASED
