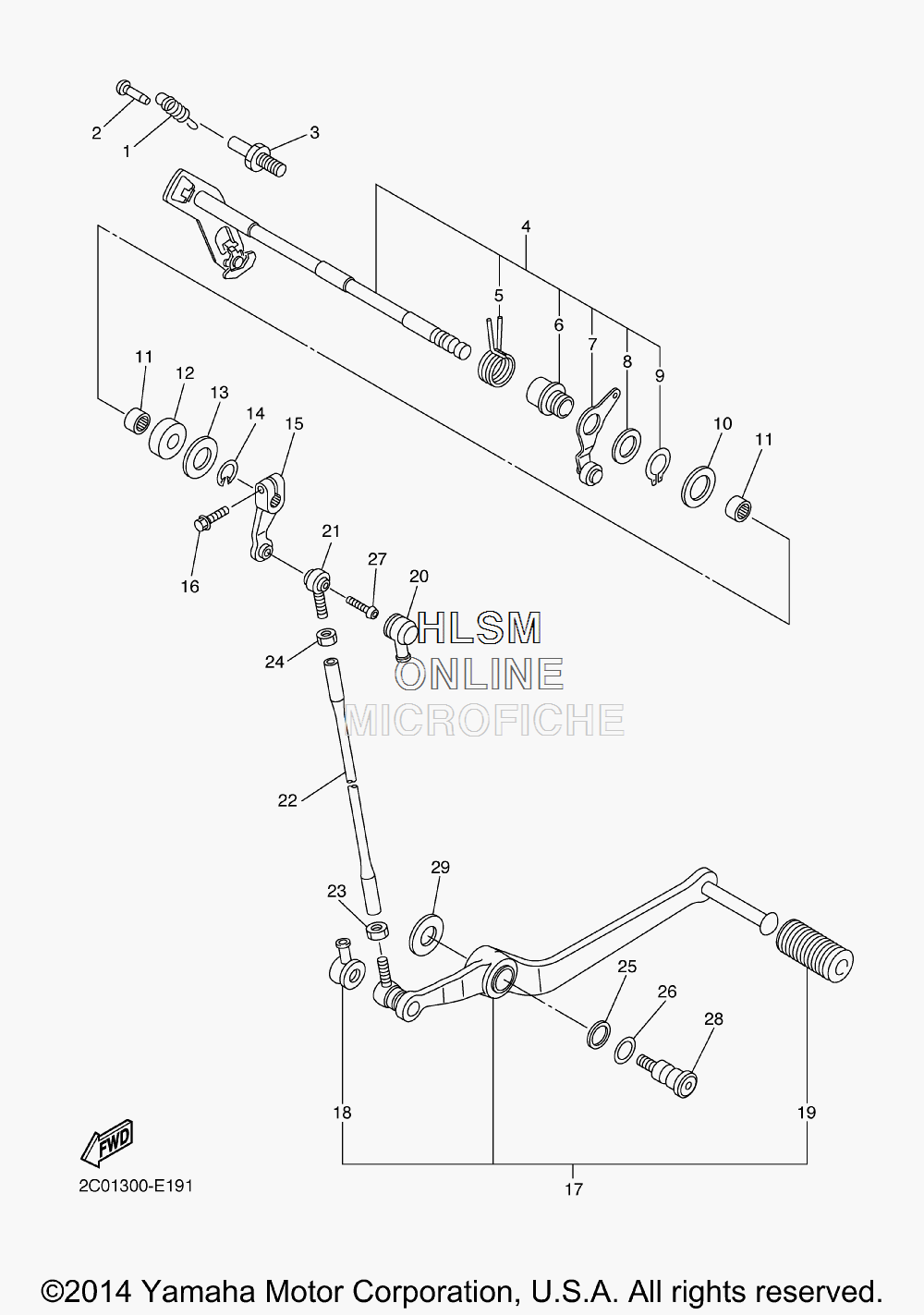

SHIFT SHAFT для Yamaha YZFR6 - 2014 года выпуска`
-
№АртикулНазвание
-
12C0-18144-00-00 HANGER, SPRINGHANGER, SPRING
-
2132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
31D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
42C0-18101-01-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
590508-32141-00 ...SPRING, TORSION...SPRING, TORSION
-
62C0-18175-00-00 ...SPACER...SPACER
-
72C0-18140-00-00 ...STOPPER LEVER ASSY...STOPPER LEVER ASSY
-
890201-177G4-00 ...WASHER, PLATE...WASHER, PLATE
-
999009-17400-00 ...CIRCLIP...CIRCLIP
-
1090201-127E1-00 WASHER, PLATEWASHER, PLATE
-
1193317-11295-00 BEARINGBEARING
-
1293102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
1390201-12575-00 WASHER, PLATEWASHER, PLATE
-
1499002-10600-00 CLIPCLIP
-
155PW-18112-20-00 ARM, SHIFTARM, SHIFT
-
1695822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
172C0-18110-01-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
182H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
195EB-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
204XV-18154-00-00 COVER, DUSTCOVER, DUST
-
215LV-18116-00-00 JOINT, ROD 1JOINT, ROD 1
-
222C0-18115-10-00 ROD, SHIFTROD, SHIFT
-
2390170-08358-00 NUTNUT
-
2495304-06700-00 NUTNUT
-
2590201-12013-00 WASHER, PLATEWASHER, PLATE
-
2690206-12074-00 WASHER, WAVEWASHER, WAVE
-
2790111-06019-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
284BP-27434-01-00 BOLTBOLT
-
2990201-08784-00 WASHER, PLATEWASHER, PLATE
