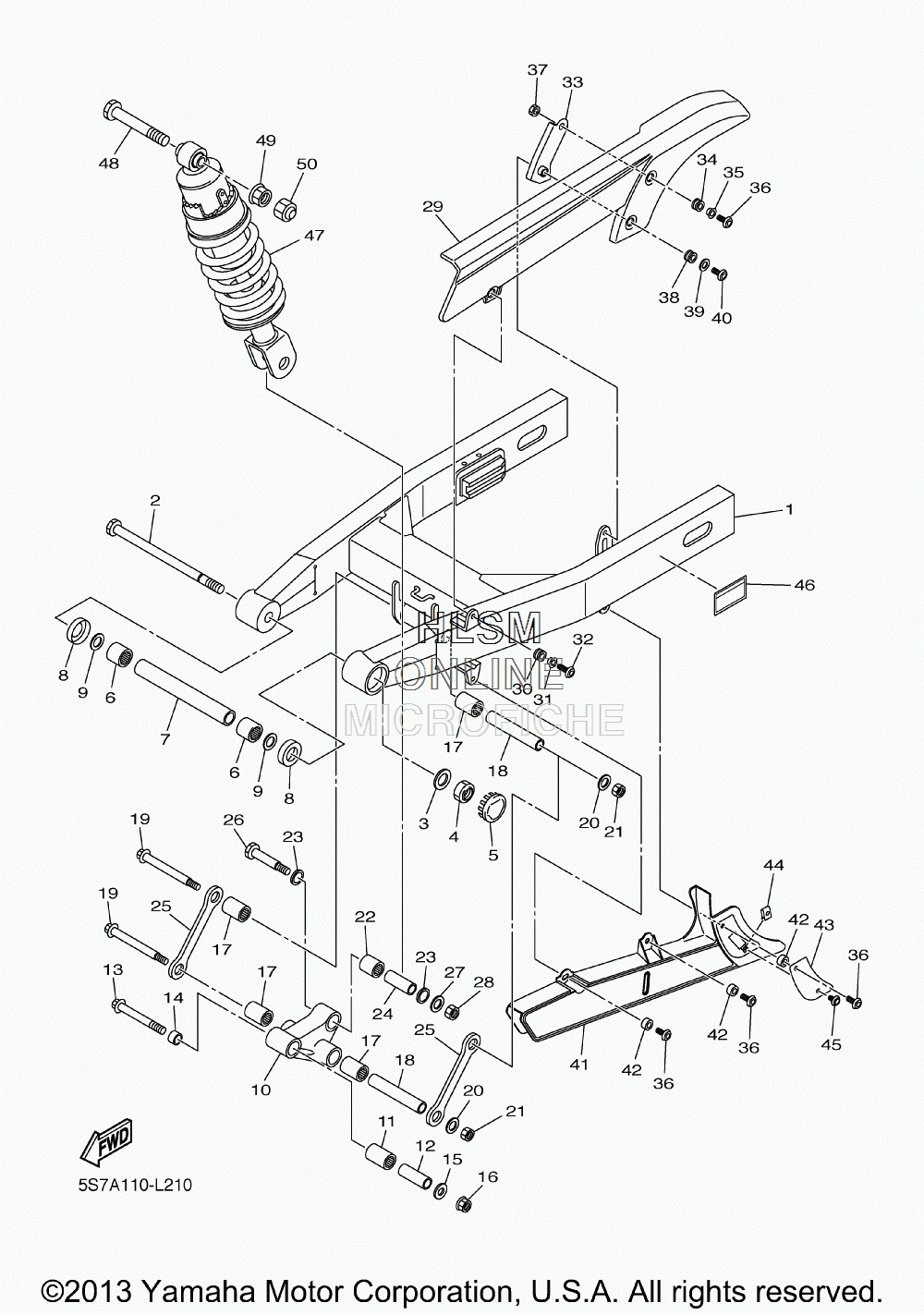

SUSPENSION - REAR ARM для Yamaha V STAR 950 - 2014 года выпуска`
-
№АртикулНазвание
-
15S7-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
23D8-22141-01-00 SHAFT, PIVOTSHAFT, PIVOT
-
390201-16018-00 WASHER, PLATEWASHER, PLATE
-
490185-16002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
54KM-2219X-00-00 COVERCOVER
-
693320-32403-00 BEARING CYL.#20BEARING CYL.#20
-
73D8-22124-00-00 BUSH 2BUSH 2
-
85EL-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
990201-243U9-00 WASHER, PLATEWASHER, PLATE
-
103D8-2217A-00-00 ARM, RELAYARM, RELAY
-
1193317-42060-00 BEARING CYL.#17BEARING CYL.#17
-
1290387-100T8-00 COLLARCOLLAR
-
1390105-10233-00 BOLT, FLANGEBOLT, FLANGE
-
1490387-10049-00 COLLARCOLLAR
-
1590201-101J1-00 WASHER, PLATEWASHER, PLATE
-
1695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1793317-41761-00 BEARING CYL.#17BEARING CYL.#17
-
1890387-126T1-00 COLLARCOLLAR
-
1990101-12027-00 BOLTBOLT
-
2090201-12045-00 WASHER, PLATEWASHER, PLATE
-
2195612-12100-00 NUT, UNUT, U
-
2293317-31771-00 BEARINGBEARING
-
2393109-17071-00 OIL SEALOIL SEAL
-
2490387-127W0-00 COLLARCOLLAR
-
253D8-2217M-00-00 ARM 1ARM 1
-
2690109-10024-00 BOLTBOLT
-
2790201-10035-00 WASHER, PLATEWASHER, PLATE
-
2895612-10100-00 NUT, UNUT, U
-
295S7-22311-00-00 CASE, CHAINCASE, CHAIN
-
3090480-13004-00 GROMMETGROMMET
-
3190387-06171-00 COLLARCOLLAR
-
3290149-06302-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
333D8-2213J-00-00 STAY, CHAIN CASESTAY, CHAIN CASE
-
3490480-13004-00 GROMMETGROMMET
-
3590387-06171-00 COLLARCOLLAR
-
3690111-06038-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
3795302-06600-00 NUTNUT
-
3890480-13004-00 GROMMETGROMMET
-
3990201-06095-00 WASHER, PLATEWASHER, PLATE
-
4090149-06302-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
413D8-22312-00-00 CASE, CHAIN 2CASE, CHAIN 2
-
4290387-06372-00 COLLARCOLLAR
-
435S7-22341-00-00 PLATE, GUIDE 1PLATE, GUIDE 1
-
4490183-06053-00 NUT, SPRINGNUT, SPRING
-
4590111-06078-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
465S7-21668-00-00 LABEL, TIRELABEL, TIRE
-
475S7-22210-20-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
4890109-10028-00 BOLTBOLT
-
4995602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
505YU-2143A-00-00 CAPCAP
