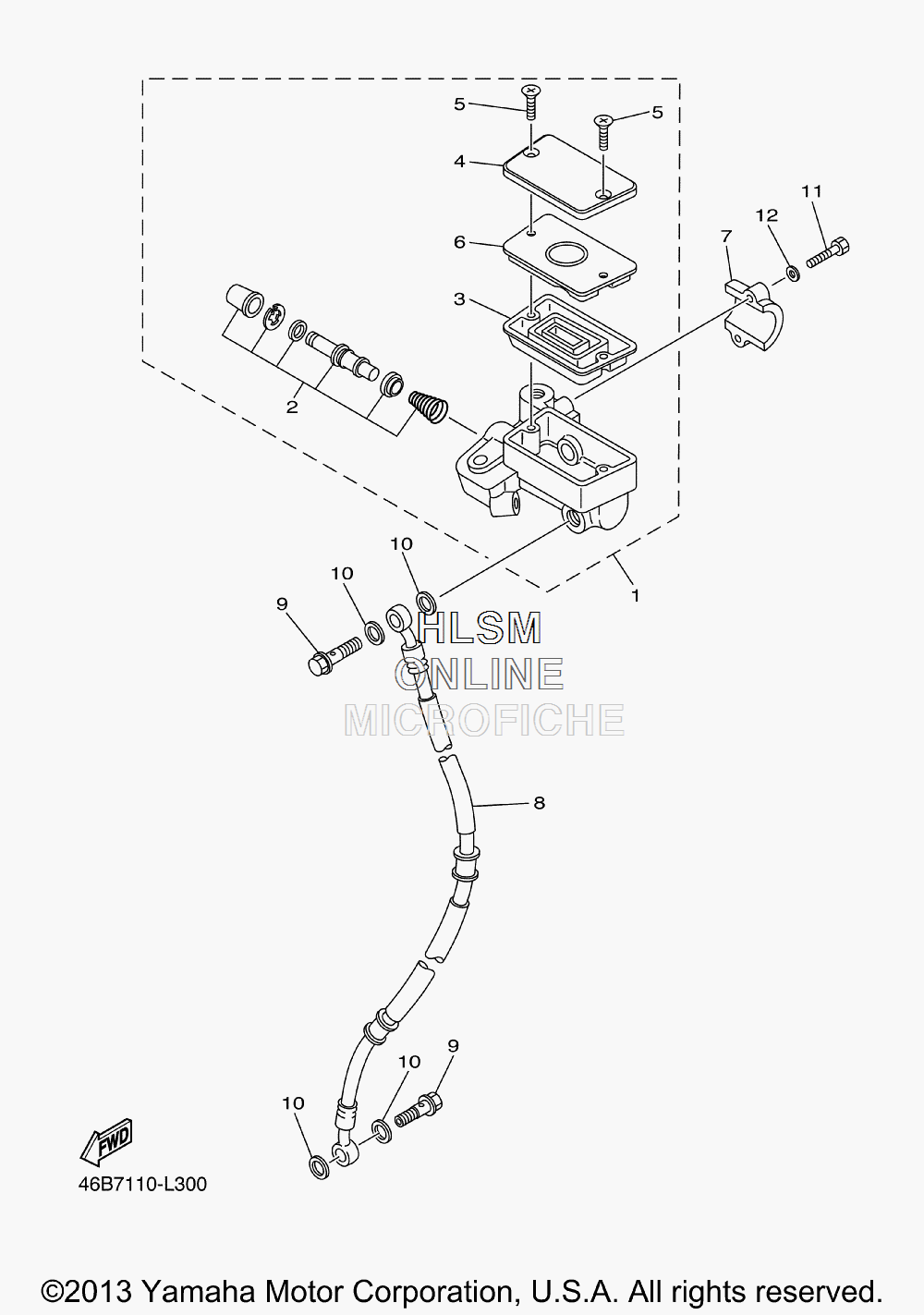

BRAKE - FRONT MASTER CYLINDER для Yamaha V STAR 250 - 2014 года выпуска`
-
№АртикулНазвание
-
119D-25870-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
223L-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34L0-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
419D-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
598707-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
619D-25855-00-00 ......BUSH, DIAPHRAGM......BUSH, DIAPHRAGM
-
74L0-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
846B-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
990401-10020-00 BOLT, UNIONBOLT, UNION
-
1090430-10005-00 GASKETGASKET
-
1197007-06025-00 BOLTBOLT
-
1292907-06600-00 WASHER, PLATEWASHER, PLATE
