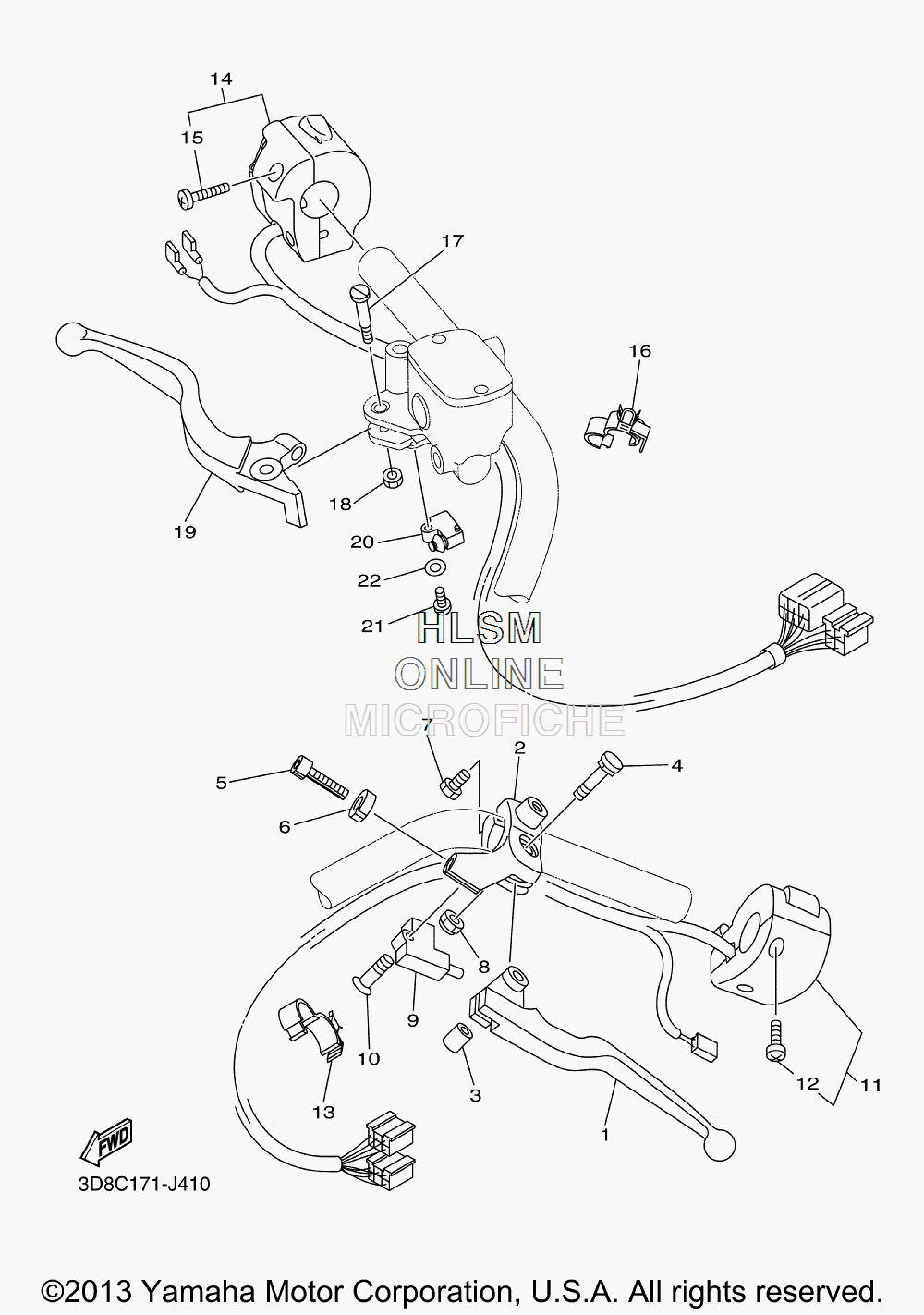

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha V STAR 1300 - 2014 года выпуска`
-
№АртикулНазвание
-
15BN-83912-00-00 LEVER 1LEVER 1
-
25BN-82911-20-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
34TR-83913-00-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
44TR-83945-10-00 BOLT, LEVERBOLT, LEVER
-
590123-08083-00 BOLTBOLT
-
690179-08316-00 NUTNUT
-
797007-06020-00 BOLTBOLT
-
895607-06100-00 NUT, UNUT, U
-
93YX-82917-01-00 SWITCHSWITCH
-
1098707-03020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
113D8-83973-10-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1298504-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1390464-15192-00 CLAMPCLAMP
-
143D8-83972-10-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
1598504-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1690464-15192-00 CLAMPCLAMP
-
175VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
1895602-06100-00 NUT, UNUT, U
-
193D8-83922-00-00 LEVER 2LEVER 2
-
2036Y-82917-00-00 SWITCHSWITCH
-
2198502-04014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2292902-04600-00 WASHER, PLATEWASHER, PLATE
