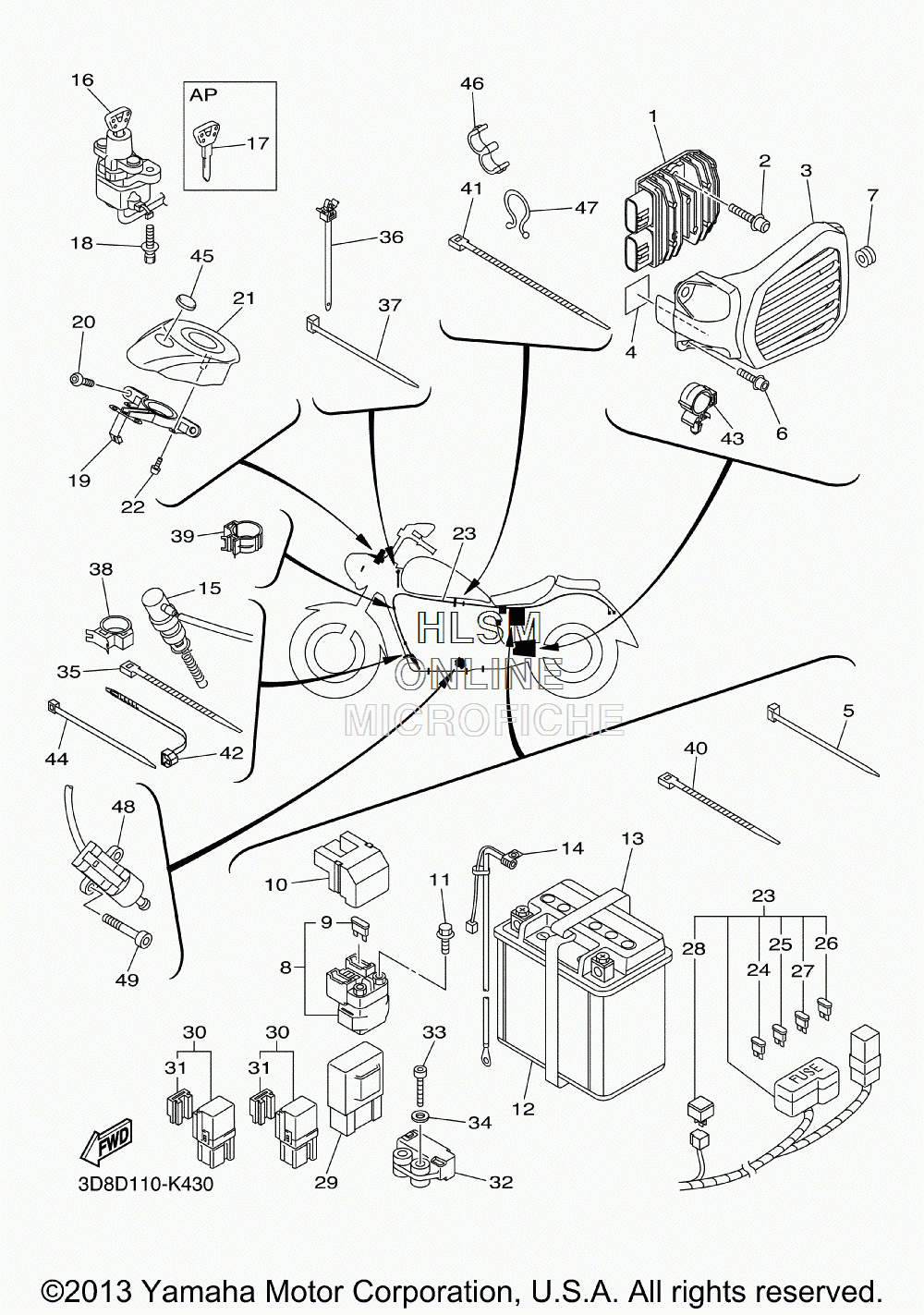

ELECTRICAL 2 для Yamaha V STAR 1300 TOURER - 2014 года выпуска`
-
№АртикулНазвание
-
127D-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
290110-06263-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
33D8-21247-02-00 CASE, REGULATORCASE, REGULATOR
-
42GH-24185-00-00 DAMPER, LOCATING 5DAMPER, LOCATING 5
-
55Y9-12491-00-00 CLAMP 1CLAMP 1
-
690110-06215-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
790480-12550-00 GROMMETGROMMET
-
83D8-81940-00-00 STARTER RELAY ASSY (RC19-074)STARTER RELAY ASSY (RC19-074)
-
942X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
105SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
1195022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
124SH-82100-22-00 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
134AS-82131-01-00 BAND, BATTERYBAND, BATTERY
-
1427D-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
153D8-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
163D8-82501-01-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
174BH-82511-09-00 BLANK KEYBLANK KEY
-
1890109-08195-00 BOLTBOLT
-
193D8-2334G-00-00 BRACKET 1BRACKET 1
-
2092012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
213D8-82568-00-00 COVER, MAIN SWITCHCOVER, MAIN SWITCH
-
2297702-40016-00 SCREW, TAPPINGSCREW, TAPPING
-
233D8-82590-30-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
245JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
255JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
265JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
275JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
283XV-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
295KS-81950-30-00 RELAY ASSY (5KS-30)RELAY ASSY (5KS-30)
-
305EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
315EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
325PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
3390110-04003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3490201-04027-00 WASHER, PLATEWASHER, PLATE
-
351UA-82591-00-00 BANDBAND
-
3690464-12089-00 CLAMPCLAMP
-
375Y9-12491-00-00 CLAMP 1CLAMP 1
-
3890464-10190-00 CLAMPCLAMP
-
3990464-20191-00 CLAMPCLAMP
-
3990464-30252-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
403MA-82591-00-00 BANDBAND
-
4190464-80002-00 CLAMPCLAMP
-
4290464-15195-00 CLAMPCLAMP
-
4390464-16012-00 CLAMPCLAMP
-
4490464-32060-00 CLAMPCLAMP
-
453D8-2341B-00-00 EMBLEMEMBLEM
-
4690464-10M57-00 CLAMPCLAMP
-
4790464-16039-00 CLAMPCLAMP
-
483D8-82566-B0-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
4990110-05033-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
