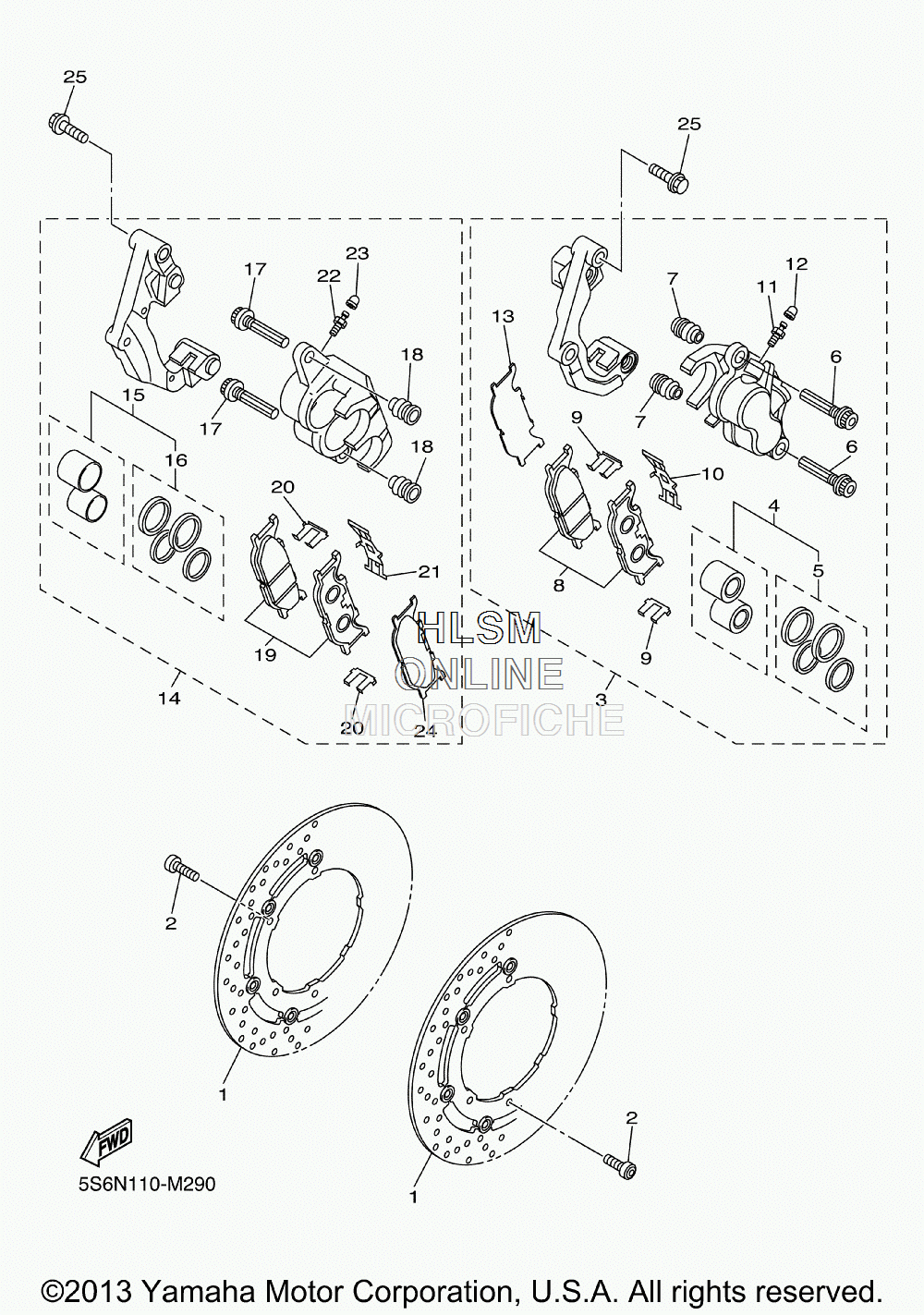

BRAKE - FRONT CALIPER для Yamaha V STAR 1300 DELUXE - 2014 года выпуска`
-
№АртикулНазвание
-
13D8-2581T-10-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-083G4-00 BOLTBOLT
-
33D8-2580T-20-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
45KS-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
54HC-25803-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
65JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
85VU-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
94BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
103YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
1147X-25824-01-00 ...SCREW, BLEED...SCREW, BLEED
-
121D7-25825-00-00 ...CAP...CAP
-
135VU-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
143D8-2580U-20-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
155KS-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
164HC-25803-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
175JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
184TT-25937-00-00 ...BOOT 2...BOOT 2
-
195VU-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
204BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
213YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
2247X-25824-01-00 ...SCREW, BLEED...SCREW, BLEED
-
231D7-25825-00-00 ...CAP...CAP
-
245VU-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
2590105-10638-00 BOLT WASHER BASEDBOLT WASHER BASED
