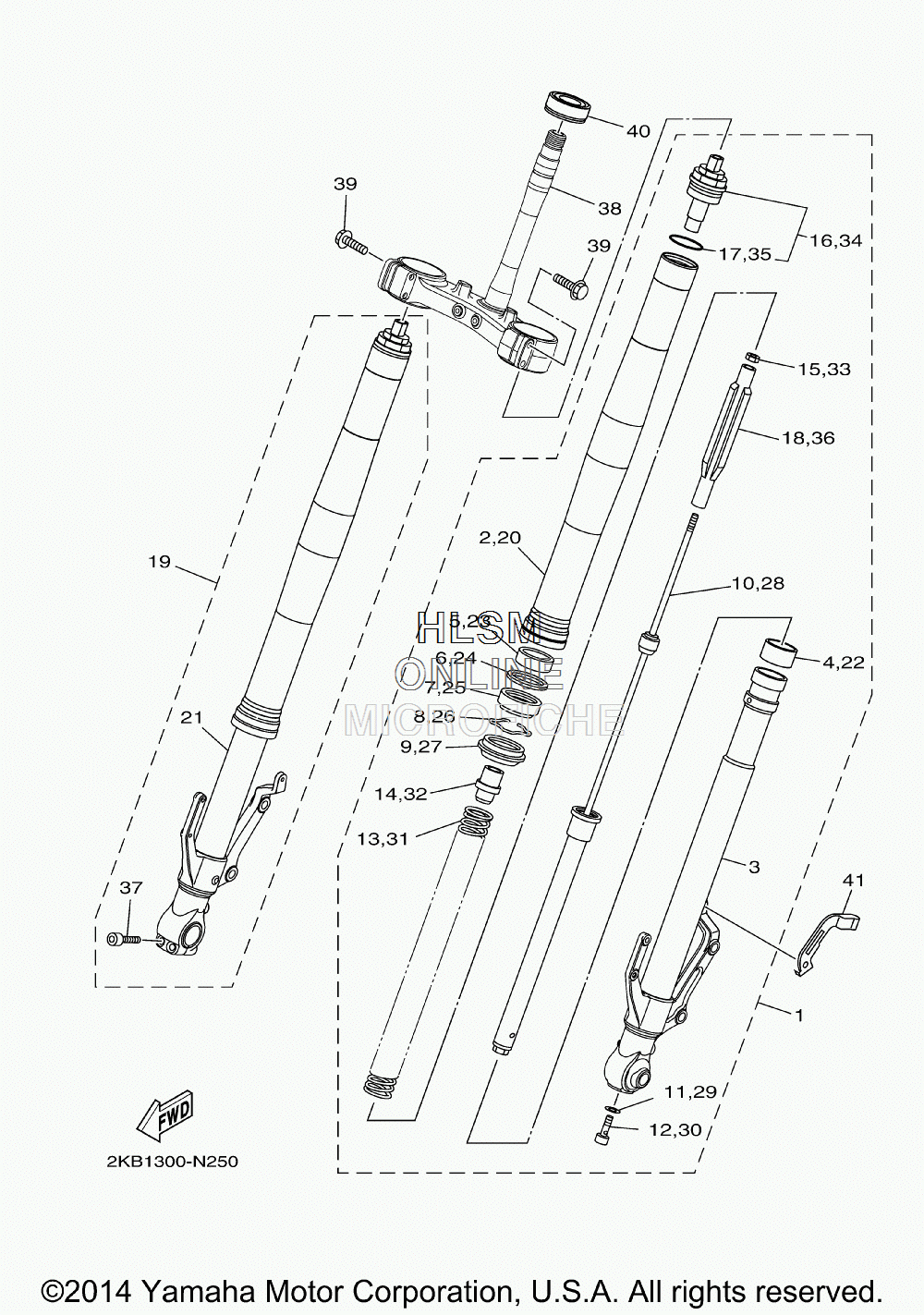

SUSPENSION - FRONT FORK для Yamaha SUPER TENERE ES - 2014 года выпуска`
-
№АртикулНазвание
-
12KB-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
223P-23136-10-00 ...TUBE, OUTER...TUBE, OUTER
-
32KB-23110-00-00 ...INNER TUBE COMP.1...INNER TUBE COMP.1
-
45EB-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
55EB-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
64V4-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
74PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
84V4-23153-L0-00 ...RING, SNAP...RING, SNAP
-
94PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
102KB-23170-10-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
11509-23158-L0-00 ...GASKET...GASKET
-
12278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
132KB-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
142KB-23118-00-00 ...SPACER...SPACER
-
153LC-23357-00-00 ...NUT...NUT
-
162KB-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
173XJ-23147-L0-00 ......O-RING......O-RING
-
182KB-23117-00-00 ...GUIDE, SPRING...GUIDE, SPRING
-
192KB-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
2023P-23136-10-00 ...TUBE, OUTER...TUBE, OUTER
-
212KB-23120-00-00 ...INNER TUBE COMP.2...INNER TUBE COMP.2
-
225EB-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
235EB-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
244V4-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
254PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
264V4-23153-L0-00 ...RING, SNAP...RING, SNAP
-
274PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
282KB-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
29509-23158-L0-00 ...GASKET...GASKET
-
30278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
312KB-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
322KB-23118-00-00 ...SPACER...SPACER
-
333LC-23357-00-00 ...NUT...NUT
-
342KB-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
353XJ-23147-L0-00 ......O-RING......O-RING
-
362KB-23117-00-00 ...GUIDE, SPRING...GUIDE, SPRING
-
3791314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
3823P-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3995022-08040-00 BOLT, FLANGEBOLT, FLANGE
-
4093332-00081-00 BEARINGBEARING
-
4123P-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
