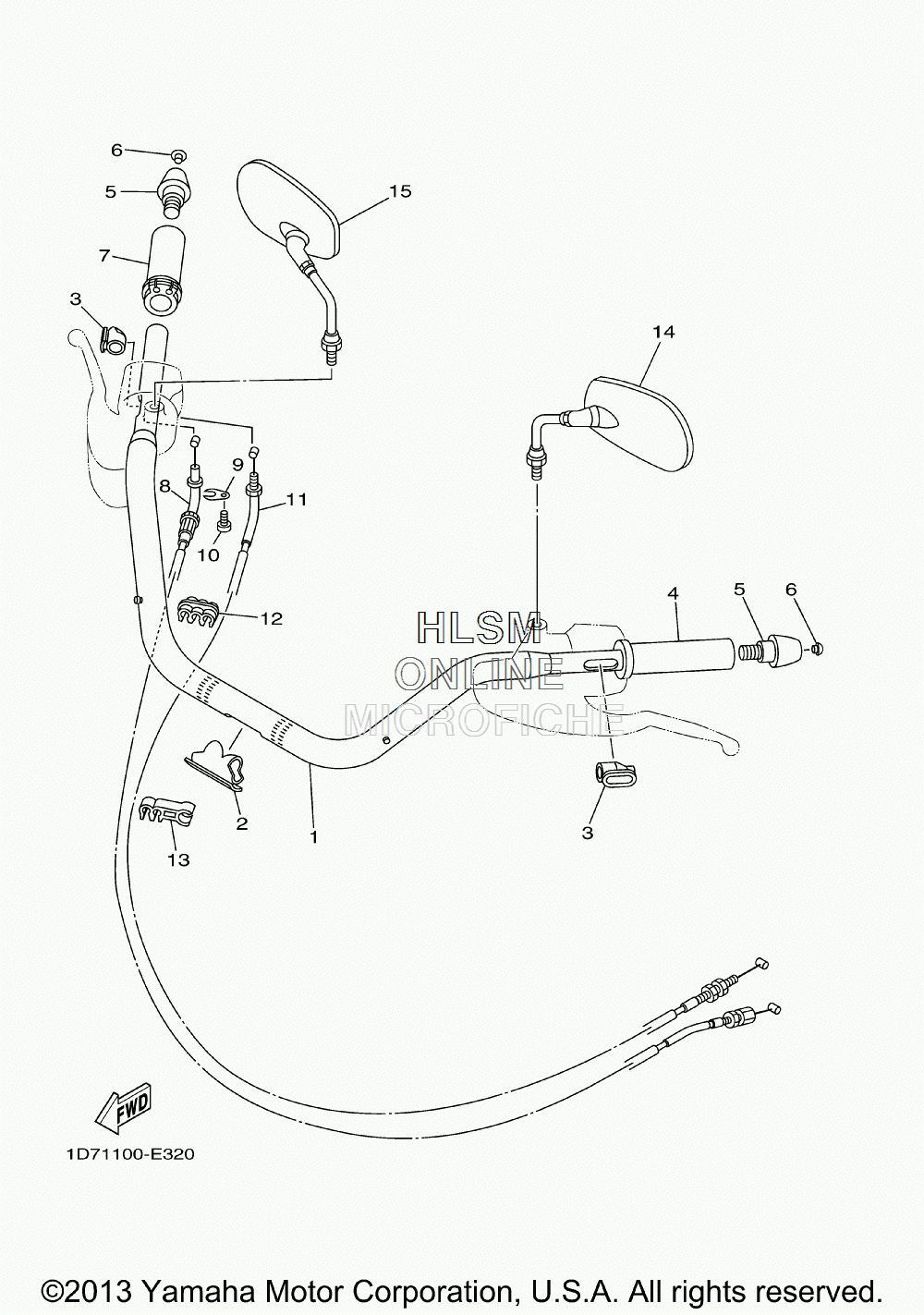

HANDLEBAR W/ CABLES для Yamaha STRATOLINER DELUXE - 2014 года выпуска`
-
№АртикулНазвание
-
11D7-26111-10-00 HANDLEBARHANDLEBAR
-
21D7-26288-00-00 GROMMET, CABLEGROMMET, CABLE
-
31D7-82595-00-00 GROMMETGROMMET
-
44NK-26241-00-00 GRIP(LEFT)GRIP(LEFT)
-
51D7-26246-00-00 END, GRIPEND, GRIP
-
690338-10164-00 PLUG SPEC'L SHAPEPLUG SPEC'L SHAPE
-
74XY-26240-00-00 GRIP ASSYGRIP ASSY
-
81D7-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
95H0-26393-00-00 HOLDERHOLDER
-
1098507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
111D7-26312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
1290468-07179-00 CLIPCLIP
-
1390464-11006-00 CLAMPCLAMP
-
141D7-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
151D7-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
