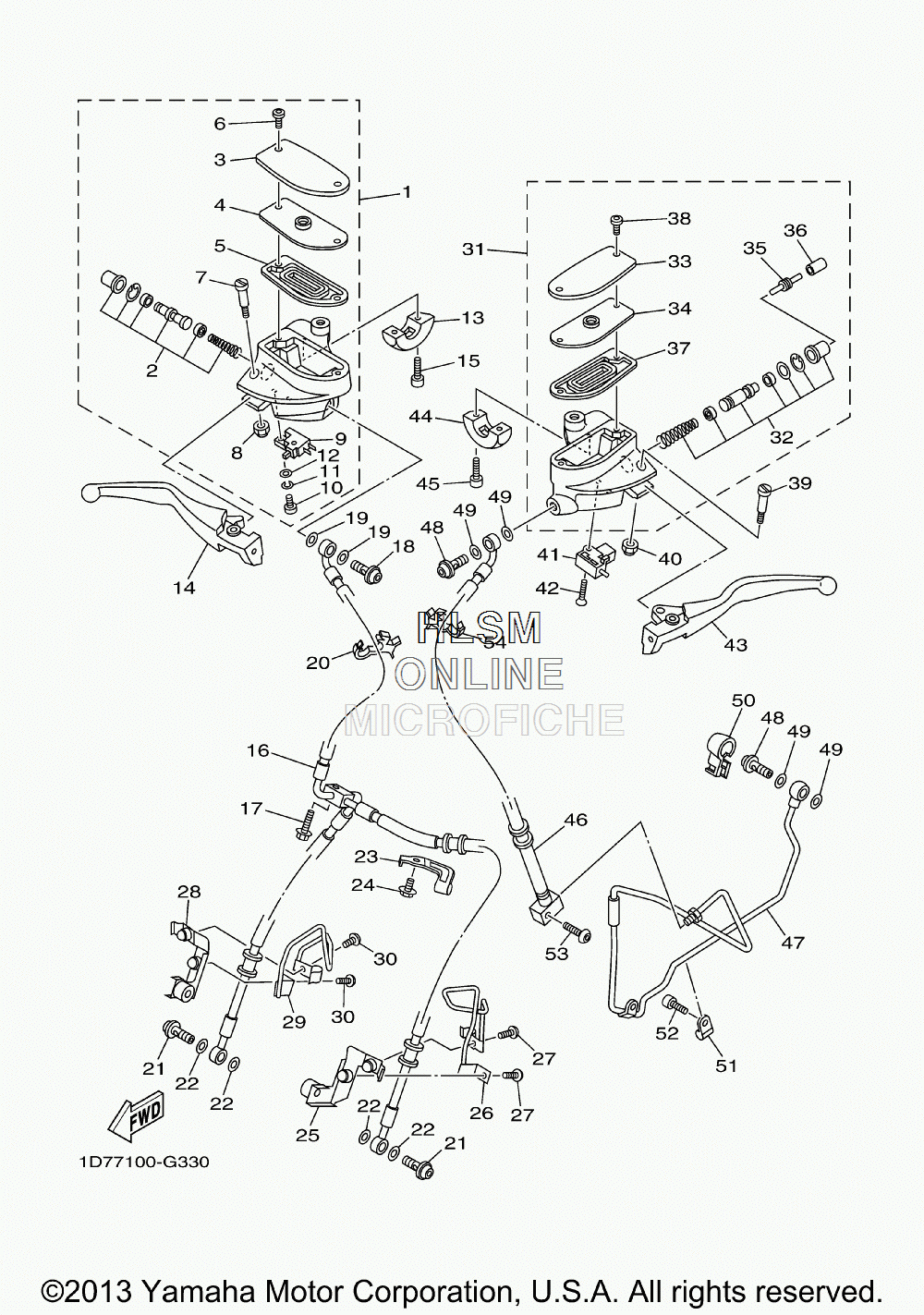

BRAKE - FRONT MASTER CYLINDER для Yamaha ROADLINER S - 2014 года выпуска`
-
№АртикулНазвание
-
11D7-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25PX-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
31D7-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
41D7-2585B-00-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
51D7-25854-01-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
61D7-2589H-00-00 ...SCREW...SCREW
-
71D7-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
895604-06100-00 ...NUT, U...NUT, U
-
94HM-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
1098502-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1192907-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1292907-04600-00 ...WASHER...WASHER
-
131D7-26467-00-00 HOLDERHOLDER
-
141D7-83922-00-00 LEVER 2LEVER 2
-
1591314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
161D7-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1790105-06096-00 BOLT, FLANGEBOLT, FLANGE
-
1890401-10172-00 BOLT, UNIONBOLT, UNION
-
1990430-10005-00 GASKETGASKET
-
2090464-15192-00 CLAMPCLAMP
-
2190401-10172-00 BOLT, UNIONBOLT, UNION
-
2290430-10005-00 GASKETGASKET
-
231D7-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2490105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
251D7-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
261D7-25192-00-00 STAYSTAY
-
2790111-06016-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
281D7-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
291D7-2519F-00-00 STAY 2STAY 2
-
3090111-06016-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
311D7-W2645-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
321D7-W0099-00-00 ...CYLINDER KIT, MASTER (CLUTCH...CYLINDER KIT, MASTER (CLUTCH
-
331D7-25852-50-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
341D7-2585B-10-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
351D7-26464-00-00 ...ROD, PUSH...ROD, PUSH
-
363GM-26455-00-00 ...BUSH...BUSH
-
371D7-25854-11-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
381D7-2589H-00-00 ...SCREW...SCREW
-
391D7-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
4095604-06100-00 NUT, UNUT, U
-
413YX-82917-01-00 SWITCHSWITCH
-
4290151-03002-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
431D7-83912-00-00 LEVER 1LEVER 1
-
441D7-26467-50-00 HOLDERHOLDER
-
4591314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
461D7-26472-00-00 HOSE, CLUTCH 1HOSE, CLUTCH 1
-
471D7-26473-00-00 HOSE, CLUTCH 2HOSE, CLUTCH 2
-
4890401-10172-00 BOLT, UNIONBOLT, UNION
-
4990430-10005-00 GASKETGASKET
-
501D7-26477-00-00 COVERCOVER
-
511D7-26475-00-00 HOLDERHOLDER
-
5291314-06014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5390111-06010-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5490464-15192-00 CLAMPCLAMP
