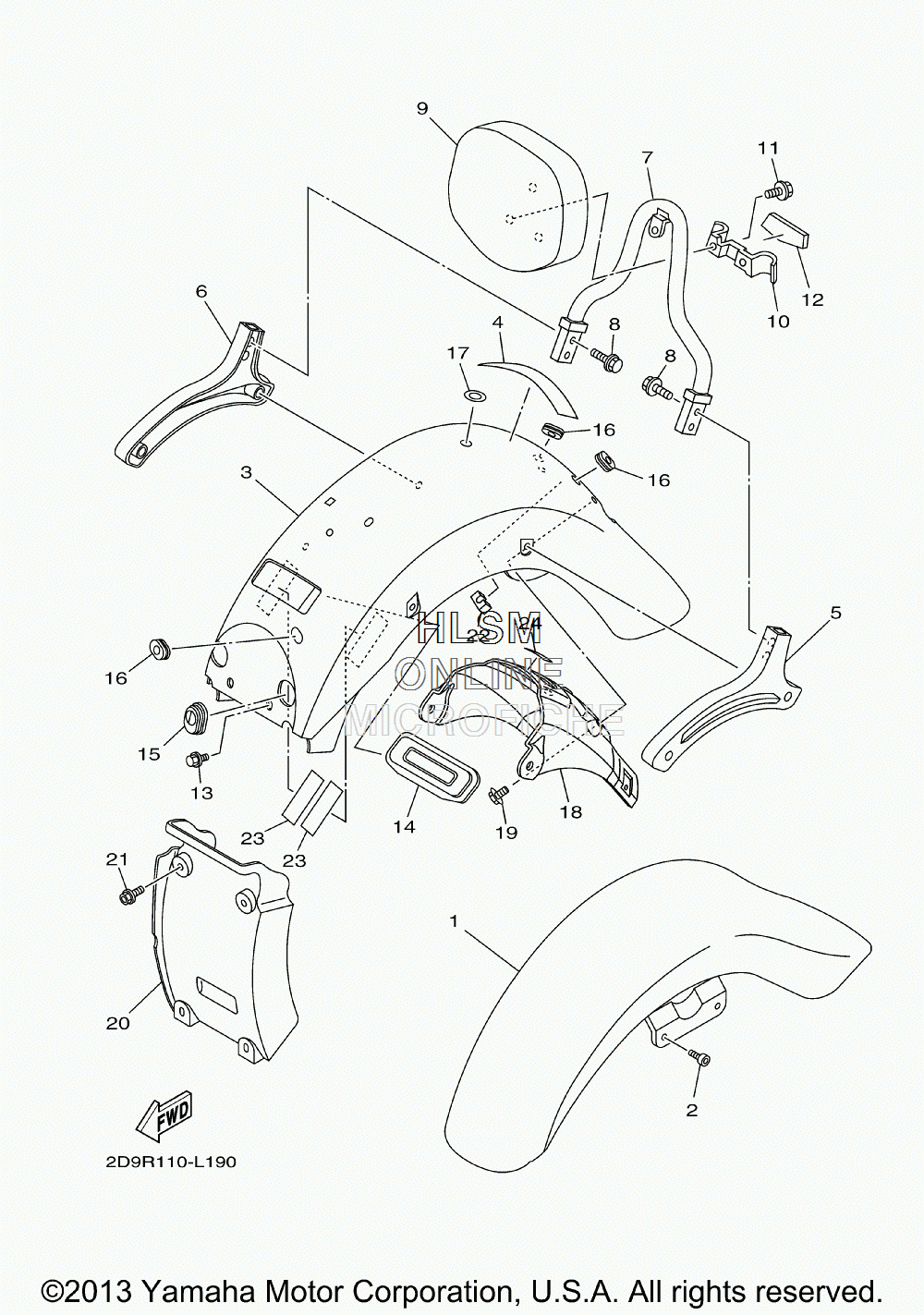

FENDER - FRONT / REAR для Yamaha ROAD STAR SILVERADO S - 2014 года выпуска`
-
№АртикулНазвание
-
15VN-YK215-01-PC FRONT FENDER COMP. FOR DBNM8FRONT FENDER COMP. FOR DBNM8
-
291314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
35VN-YK216-00-P6 REAR FENDER COMP. FOR DBNM8REAR FENDER COMP. FOR DBNM8
-
41D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
55GA-2164A-00-00 GRIP 1GRIP 1
-
65GA-2164E-00-00 GRIP 2GRIP 2
-
75GA-2164F-00-00 STAY 1STAY 1
-
895024-08012-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
95GA-2840F-20-00 BACK REST ASSYBACK REST ASSY
-
105GA-2164G-00-00 STAY 2STAY 2
-
1195024-06010-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
125GA-24786-01-00 EMBLEMEMBLEM
-
1390119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
144WM-21649-00-00 DAMPERDAMPER
-
154WM-21638-00-00 DAMPER 1DAMPER 1
-
1690480-01015-00 GROMMETGROMMET
-
175VN-21735-00-00 SEAL 2SEAL 2
-
185VN-21643-00-00 STAY, REARSTAY, REAR
-
1990105-06048-00 BOLT, FLANGEBOLT, FLANGE
-
204WM-21629-01-PJ GUARD, MUD FOR DBNM8GUARD, MUD FOR DBNM8
-
2190119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
225VN-21639-10-00 DAMPER 2DAMPER 2
-
235PW-23472-00-00 PROTECTORPROTECTOR
-
244U5-2317J-00-00 DAMPER 1DAMPER 1
