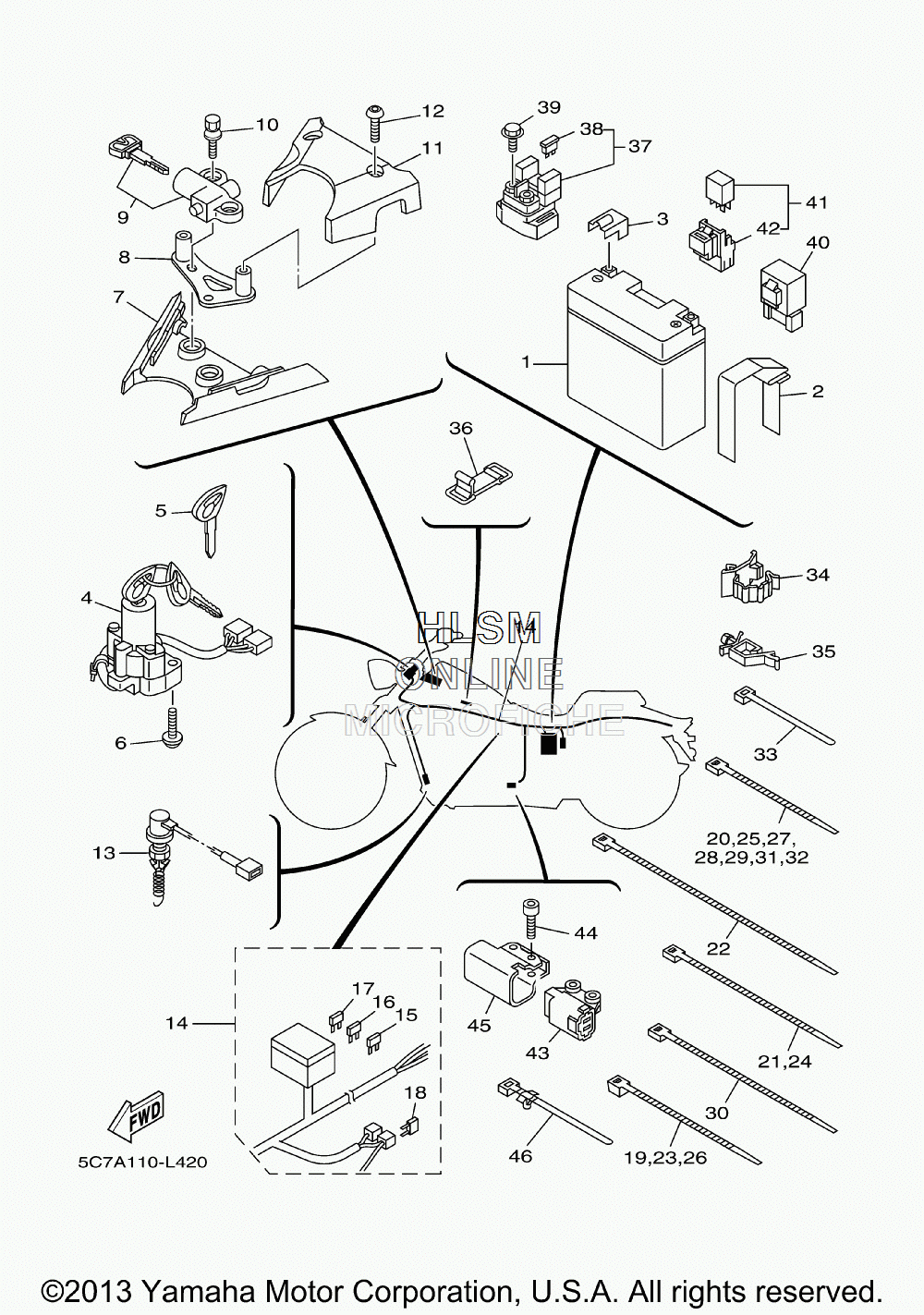

ELECTRICAL 2 для Yamaha RAIDER - 2014 года выпуска`
-
№АртикулНазвание
-
15EA-82100-11-00 BATTERY ASSY (GS GT14B-4)BATTERY ASSY (GS GT14B-4)
-
24AS-82131-01-00 BAND, BATTERYBAND, BATTERY
-
31D7-82119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
45C7-82510-10-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
55PX-82511-09-00 BLANK KEYBLANK KEY
-
690111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
75C7-8252U-00-00 COVERCOVER
-
85C7-21158-00-00 BRACKETBRACKET
-
95C7-W2348-00-00 STEERING LOCK ASSYSTEERING LOCK ASSY
-
1090109-08195-00 BOLTBOLT
-
115C7-2848Y-00-00 COVER, LOCKCOVER, LOCK
-
1290111-06010-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
135C7-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
1430B-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
155JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
165JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
175JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
185JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
1990464-55001-00 CLAMPCLAMP
-
201UA-82591-00-00 BANDBAND
-
213MA-82591-00-00 BANDBAND
-
2290464-50003-00 CLAMPCLAMP
-
2390464-55001-00 CLAMPCLAMP
-
243MA-82591-00-00 BANDBAND
-
251UA-82591-00-00 BANDBAND
-
2690464-55001-00 CLAMPCLAMP
-
271UA-82591-00-00 BANDBAND
-
281UA-82591-00-00 BANDBAND
-
291UA-82591-00-00 BANDBAND
-
3090464-80002-00 CLAMPCLAMP
-
311UA-82591-00-00 BANDBAND
-
321UA-82591-00-00 BANDBAND
-
3390464-16061-00 CLAMPCLAMP
-
3490464-20002-00 CLAMPCLAMP
-
3590464-16021-00 CLAMPCLAMP
-
361KH-82131-00-00 BAND, BATTERYBAND, BATTERY
-
375JW-81940-02-00 STARTER RELAY ASSY (RC19-032)STARTER RELAY ASSY (RC19-032)
-
3836Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
3995027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
405VK-81950-30-00 RELAY ASSY (5VK-30)RELAY ASSY (5VK-30)
-
411TP-81950-00-00 RELAY ASSY (1TP-00)RELAY ASSY (1TP-00)
-
425EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
435VU-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
4490110-04003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
455C7-82388-00-00 PLATEPLATE
-
4690464-34002-00 CLAMPCLAMP
