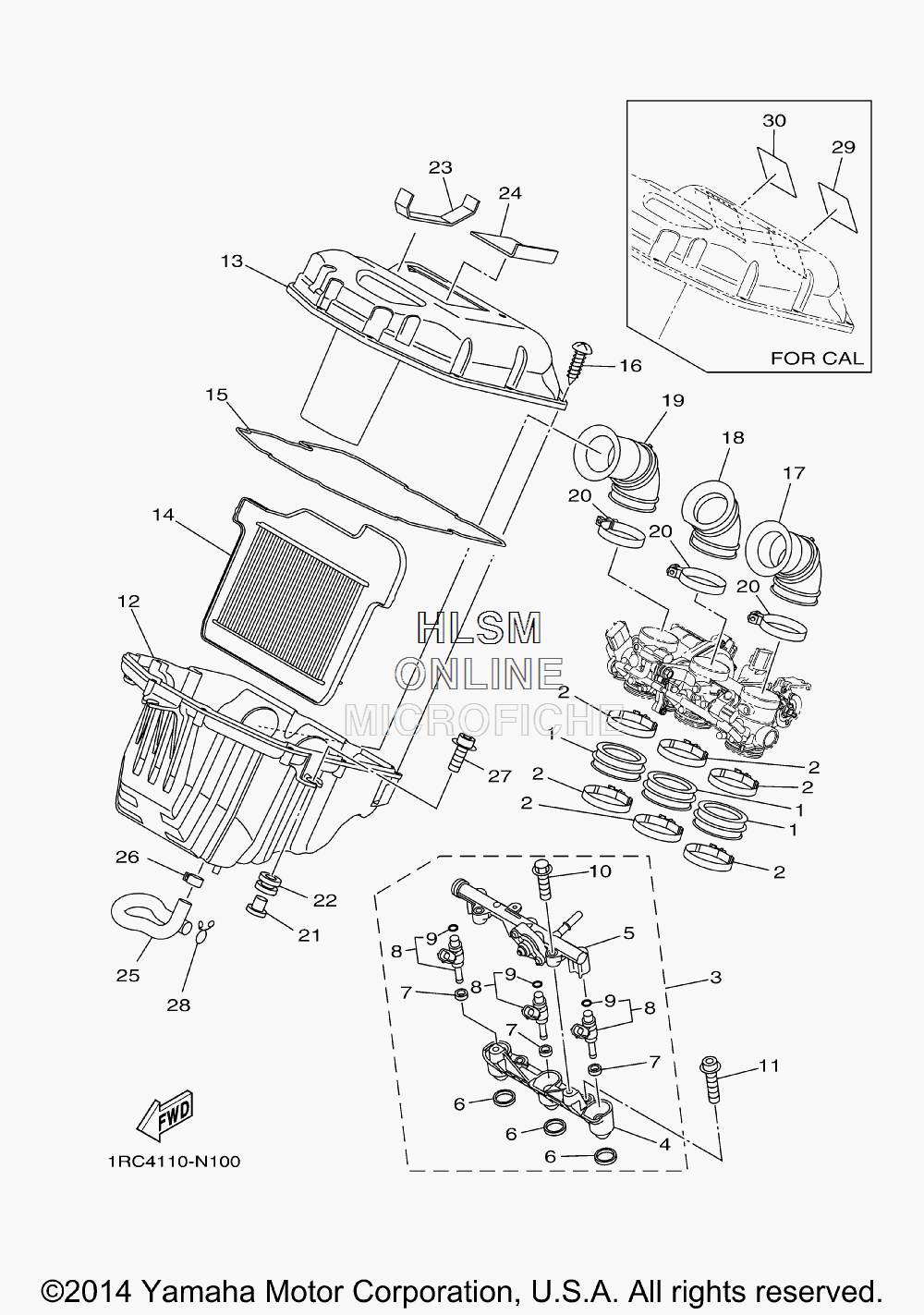

AIR CLEANER W/ INTAKE для Yamaha FZ-09 - 2014 года выпуска`
-
№АртикулНазвание
-
11RC-13635-00-00 JOINT, INTAKE 1JOINT, INTAKE 1
-
290450-56009-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
31RC-13930-00-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
41RC-12572-00-00 ...ADAPTER...ADAPTER
-
51RC-13938-00-00 ...PIPE...PIPE
-
61RC-13556-00-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
78FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
84C8-13761-00-00 ...INJECTOR...INJECTOR
-
95PS-14147-00-00 ......O-RING......O-RING
-
101RC-13573-00-00 ...BOLT 1...BOLT 1
-
1190110-06388-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
121RC-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
131RC-14402-00-00 CAP ASSY, AIR CLEANERCAP ASSY, AIR CLEANER
-
141RC-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
151RC-14452-00-00 SEALSEAL
-
1690160-05013-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
171RC-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
181RC-14463-00-00 JOINT, AIR CLEANER 2JOINT, AIR CLEANER 2
-
191RC-14454-00-00 JOINTJOINT
-
2090450-53007-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2190387-06205-00 COLLARCOLLAR
-
2290480-12314-00 GROMMETGROMMET
-
231RC-14425-00-00 DAMPER 1DAMPER 1
-
241RC-14426-00-00 DAMPER 2DAMPER 2
-
251RC-15393-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
2690467-15001-00 CLIPCLIP
-
2790110-06233-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2890467-14015-00 CLIPCLIP
-
291RC-21684-00-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
-
301RC-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
