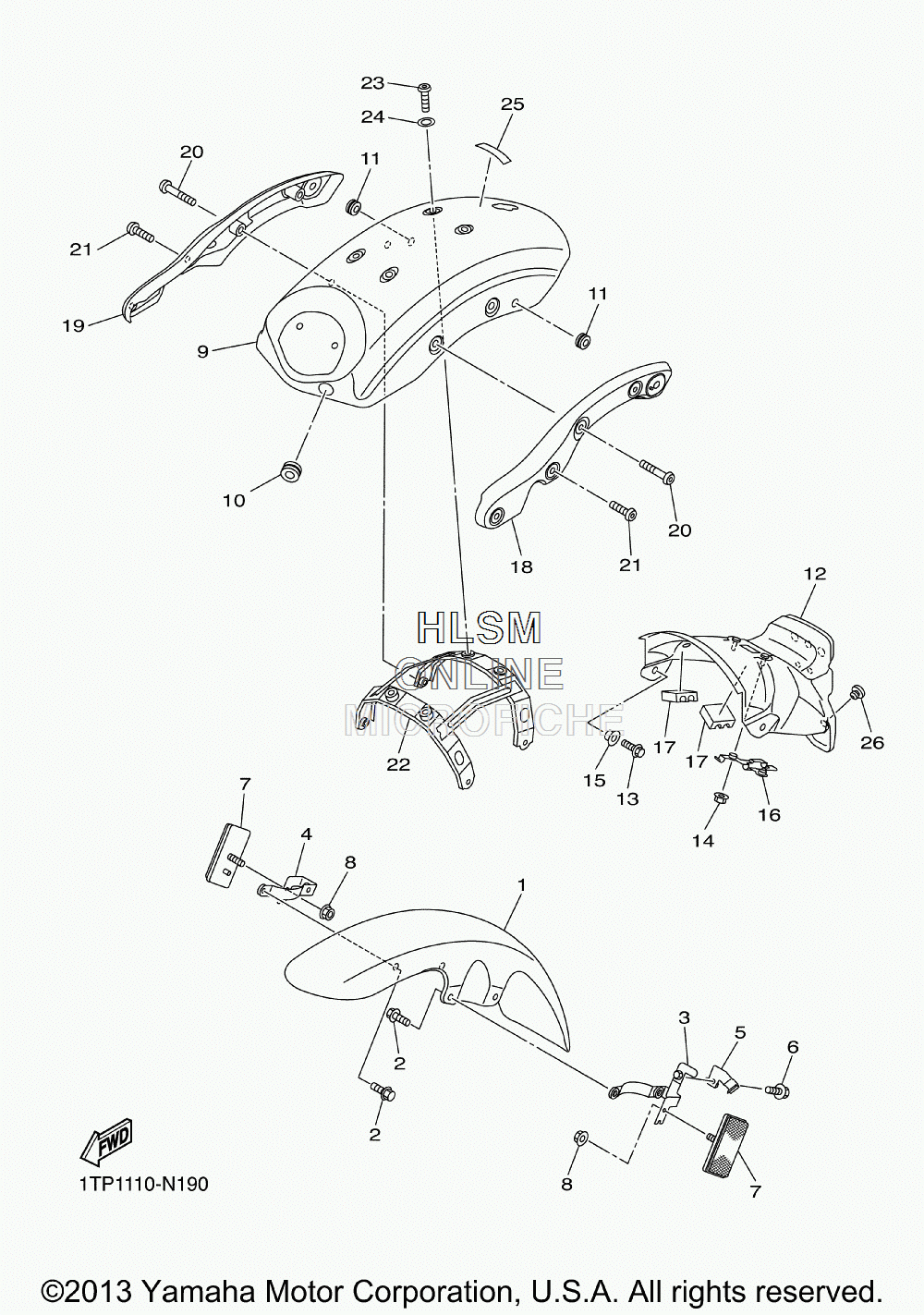

FENDER - FRONT / REAR для Yamaha BOLT - 2014 года выпуска`
-
№АртикулНазвание
-
11TP-21510-00-P0 FRONT FENDER COMP. FOR SMXFRONT FENDER COMP. FOR SMX
-
11TP-21510-00-P1 FRONT FENDER COMP. FOR BWC1FRONT FENDER COMP. FOR BWC1
-
295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
31TP-21587-00-00 STAY 1STAY 1
-
41TP-21588-00-00 STAY 2STAY 2
-
527D-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
695027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
711H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
895707-05500-00 NUT FLANGE 3GM (BLACK)NUT FLANGE 3GM (BLACK)
-
91TP-21610-00-P0 REAR FENDER COMP. FOR SMXREAR FENDER COMP. FOR SMX
-
91TP-21610-00-P1 REAR FENDER COMP. FOR BWC1REAR FENDER COMP. FOR BWC1
-
1090480-01015-00 GROMMETGROMMET
-
1190480-13016-00 GROMMETGROMMET
-
121TP-2162R-00-00 FENDER 2FENDER 2
-
1395822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590387-07717-00 COLLARCOLLAR
-
161TP-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
171TP-21639-00-00 DAMPER 2DAMPER 2
-
181TP-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
191TP-21614-00-00 STAY, FENDER 2STAY, FENDER 2
-
2090111-08005-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2190111-10006-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
221TP-21643-00-00 STAY, REARSTAY, REAR
-
2390111-08081-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2490201-08066-00 WASHER, PLATEWASHER, PLATE
-
251D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
2690338-07010-00 PLUGPLUG
