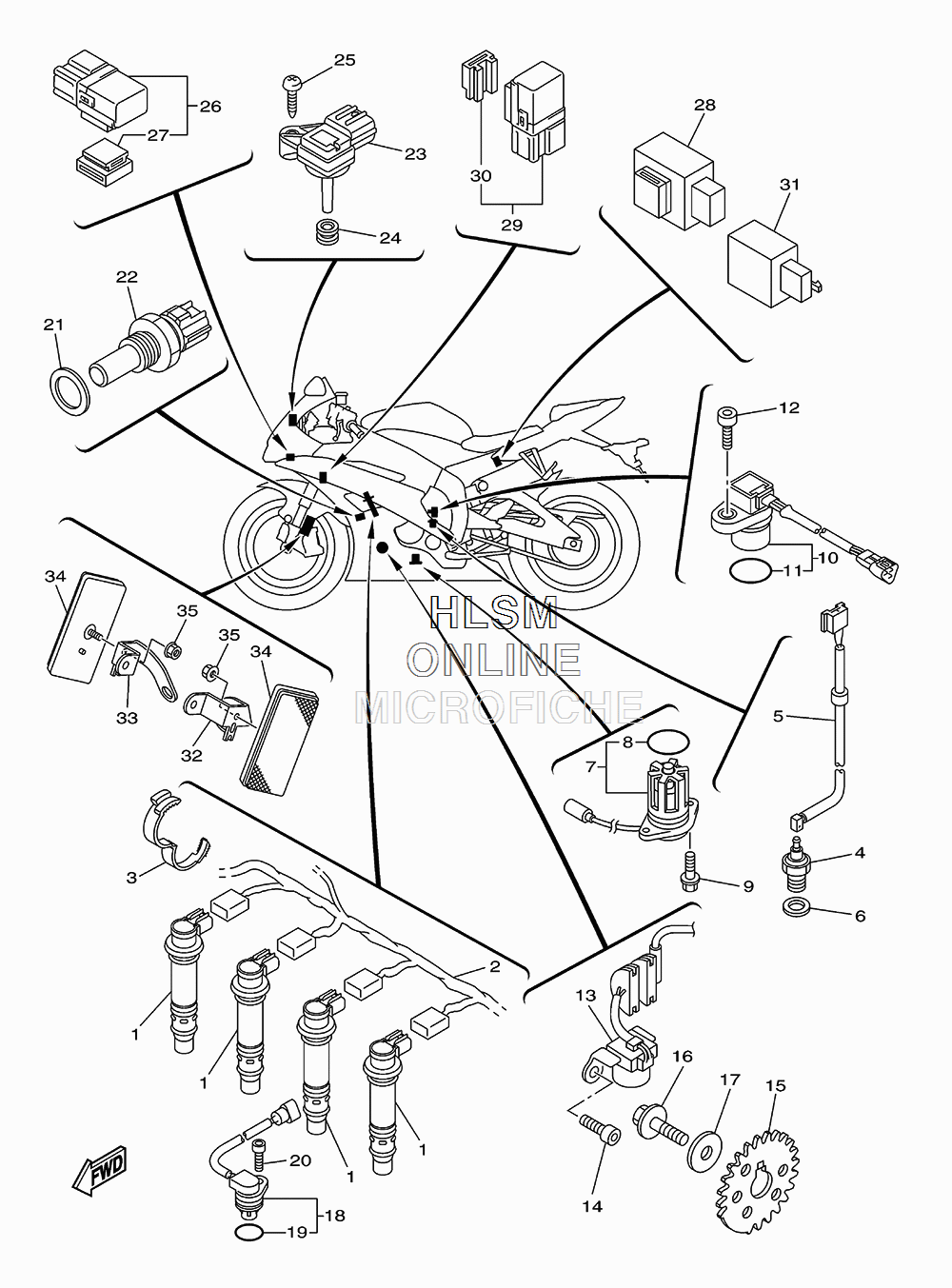

ELECTRICAL для Yamaha YZF-R6 - 2013 года выпуска`
-
№АртикулНазвание
-
113S-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
22C0-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
390464-28003-00 CLAMPCLAMP
-
43GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
52C0-82541-00-00 WIRE, LEADWIRE, LEAD
-
690430-10148-00 GASKETGASKET
-
75VX-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
85VY-8A8E0-00-00 ...O-RING...O-RING
-
995022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
104WM-83755-02-00 SENSOR, SPEEDSENSOR, SPEED
-
114D9-81168-00-00 ...O-RING...O-RING
-
1291312-06016-00 BOLTBOLT
-
132C0-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
1490110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
152C0-81673-01-00 ROTORROTOR
-
1690105-08113-00 BOLT, FLANGEBOLT, FLANGE
-
1790201-08054-00 WASHER, PLATEWASHER, PLATE
-
185VY-85896-01-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
194D9-81168-00-00 ...O-RING...O-RING
-
2090110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2190201-12790-00 WASHER, PLATEWASHER, PLATE
-
228CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
232C0-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
2490480-08006-00 GROMMETGROMMET
-
2597702-50120-00 SCREW, TAPPINGSCREW, TAPPING
-
265JJ-81950-20-00 RELAY ASSYRELAY ASSY
-
275JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
285VK-81950-40-00 RELAY ASSYRELAY ASSY
-
295EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
305EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
314MY-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
3213S-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
3313S-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
3411H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
3595702-05500-00 NUT, FLANGE (SILVER)NUT, FLANGE (SILVER)
